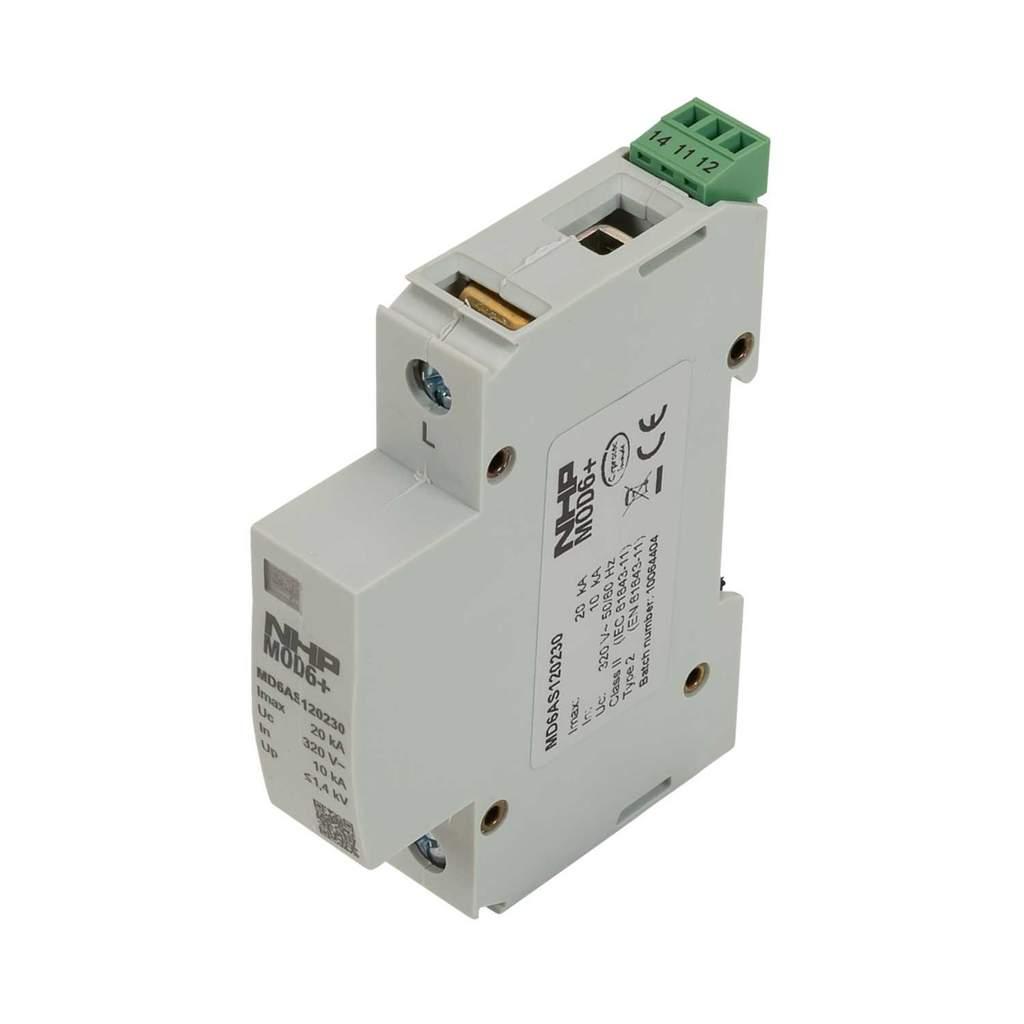

NHP 1 Pole 20kA MOD6+ Surge Diverter
Part Number: MD6AS120230
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Network diverter for discharging induced transient overvoltages (Type 2 / Class II)
- DIN rail mount
- Suitable for second stage protection in supply distribution panels in which Type 1 protection devices are installed
- Suitable for first stage protection in residential, commercial or other applications not exposed to direct strikes and with no external lightning protection system
- Imax: 20 kA
- Visual indication of life status of the protection device
- Remote indication possible via volt free contacts
- Colour
- Grey
- Depth
- 70mm
- Dimensions
- (H)90 mm x (W)18 mm x (D)70 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 90mm
- Ip Rating
- IP20
- Material
- Plastic
- Maximum Discharge Current
- 20kA
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Circuit Protection
- Standards
- IEC 61643-11
- Terminal Capacity
- 35mm²
- Type
- Surge Protection Device
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Voltage Rating
- 230V AC
- Weight
- 0.105kg
- Width
- 18mm
