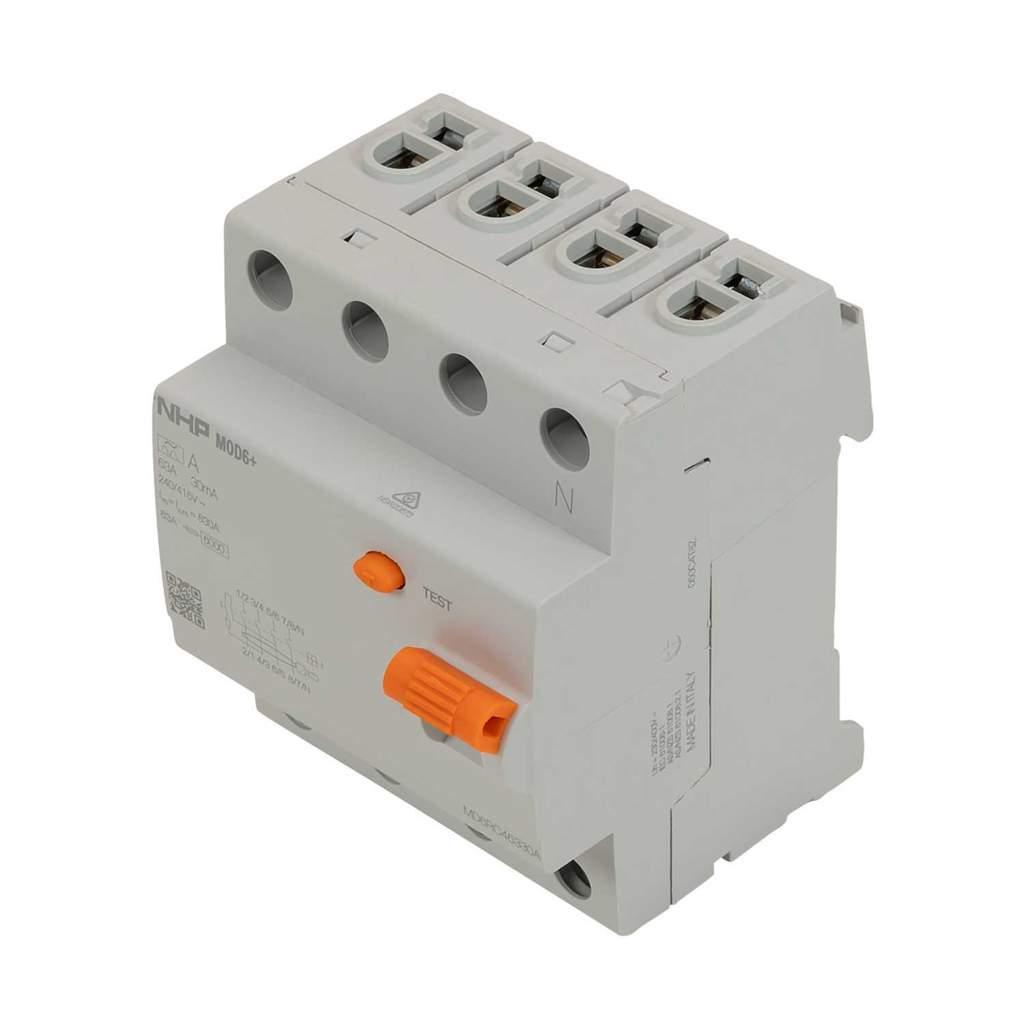

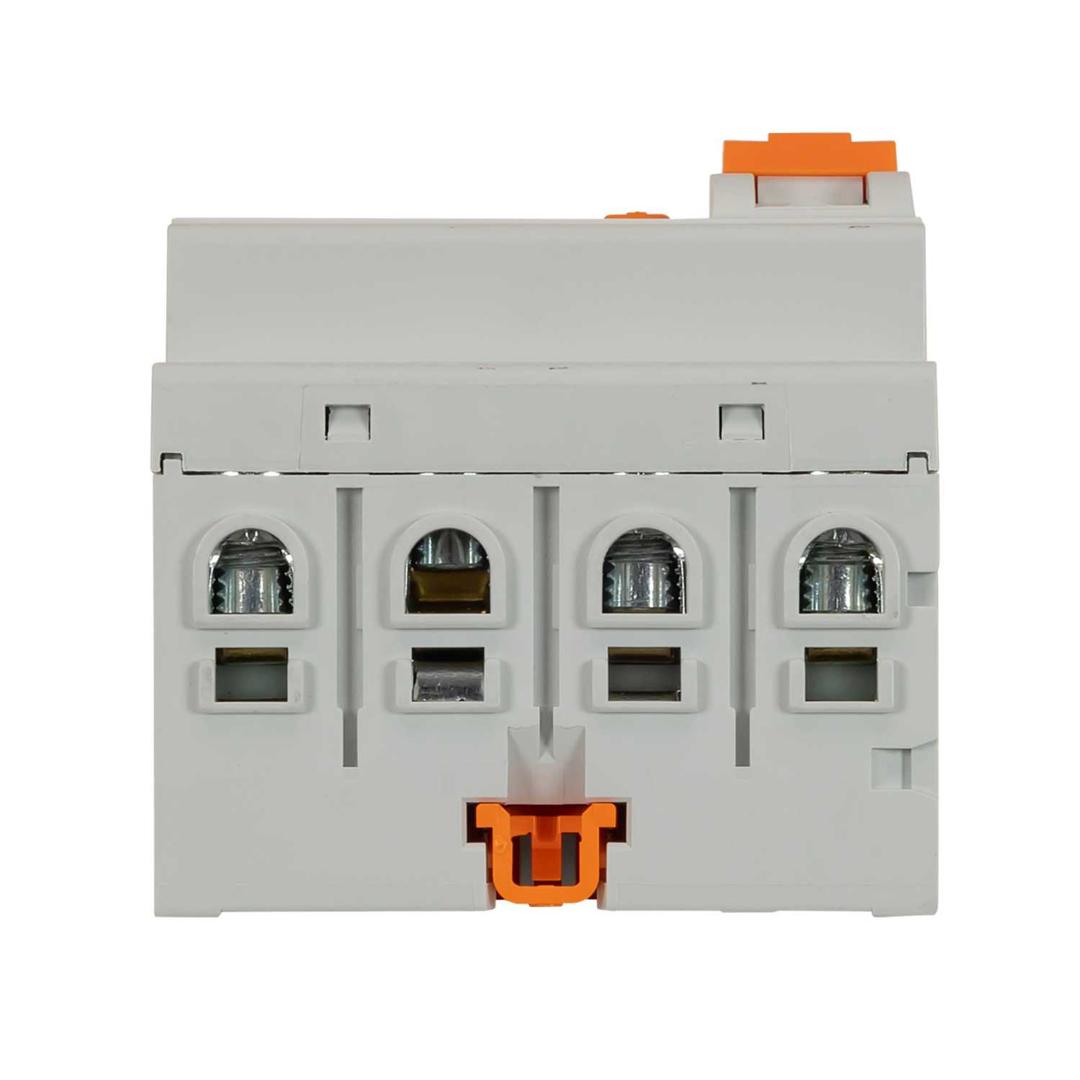

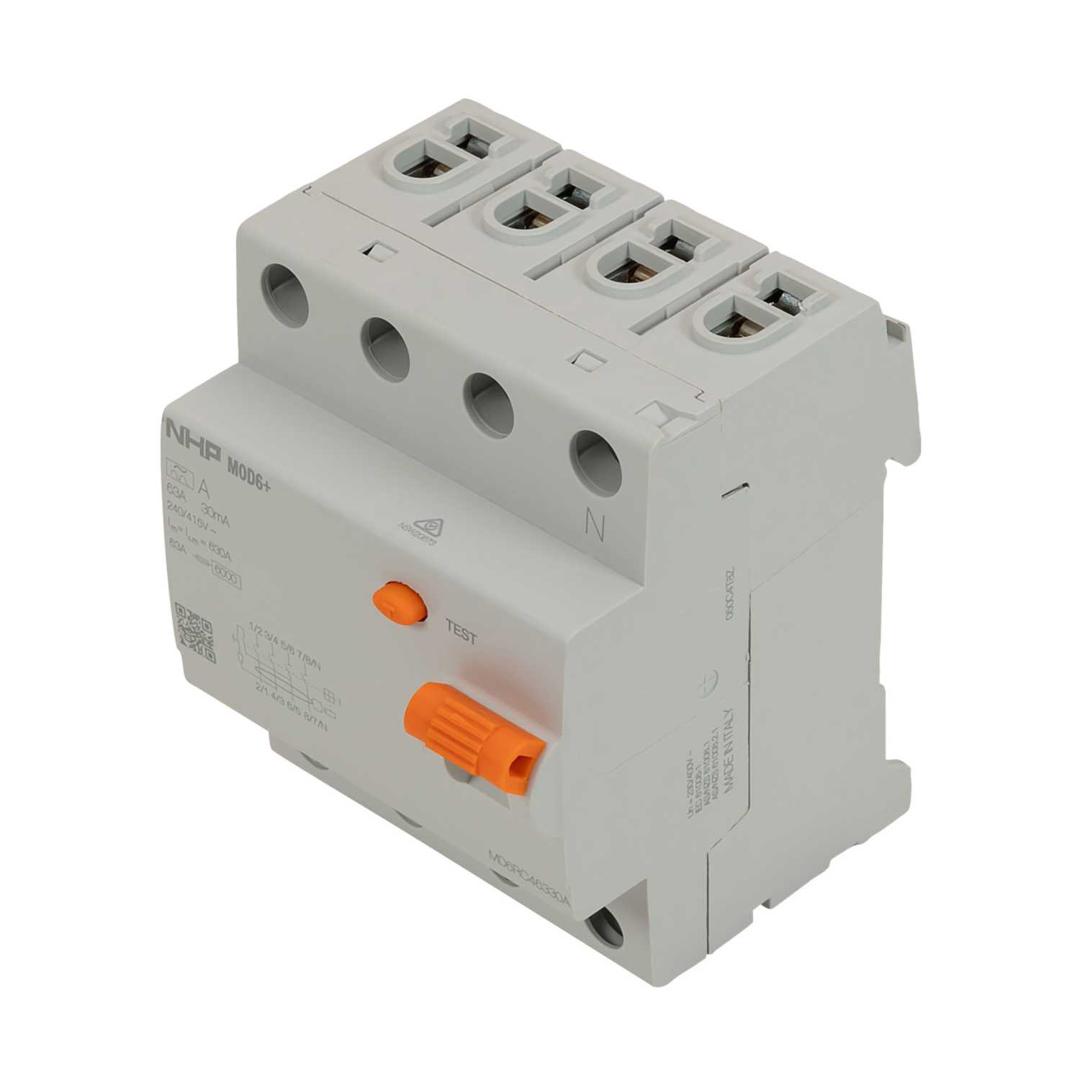

NHP 63A 3 Pole and Neutral 30mA Type A MOD6+ RCD
Part Number: MD6RC46330A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 30mA RCD provides general personnel protection from earth faults
- Type A RCD is used for alternating sinusoidal residual current and for residual pulsating direct current up to 6 mA
- Switched neutral
- Conductor entry from either top or bottom
- Fast connection utilising 18mm pin busbar comb onto bottom terminals
- Suits loadcentres
- Colour
- Grey/Orange
- Current Rating
- 63A
- Depth
- 75mm
- Dimensions
- (H)88 mm x (W)70 mm x (D)75 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 88mm
- Incoming Terminal Capacity
- 25 mm² Solid, 16 mm² Flexible
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 4
- Number Of Poles
- 3P+N
- Outgoing Terminal Capacity
- 25 mm² Solid, 16 mm² Flexible
- Packaging Types
- Each
- Product Range
- MOD6+
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- AS/NZS 61008.1
- Tripping Sensitivity
- 30mA
- Type
- RCD
- Voltage Rating
- 415V AC
- Weight
- 0.383kg
- Width
- 70mm
