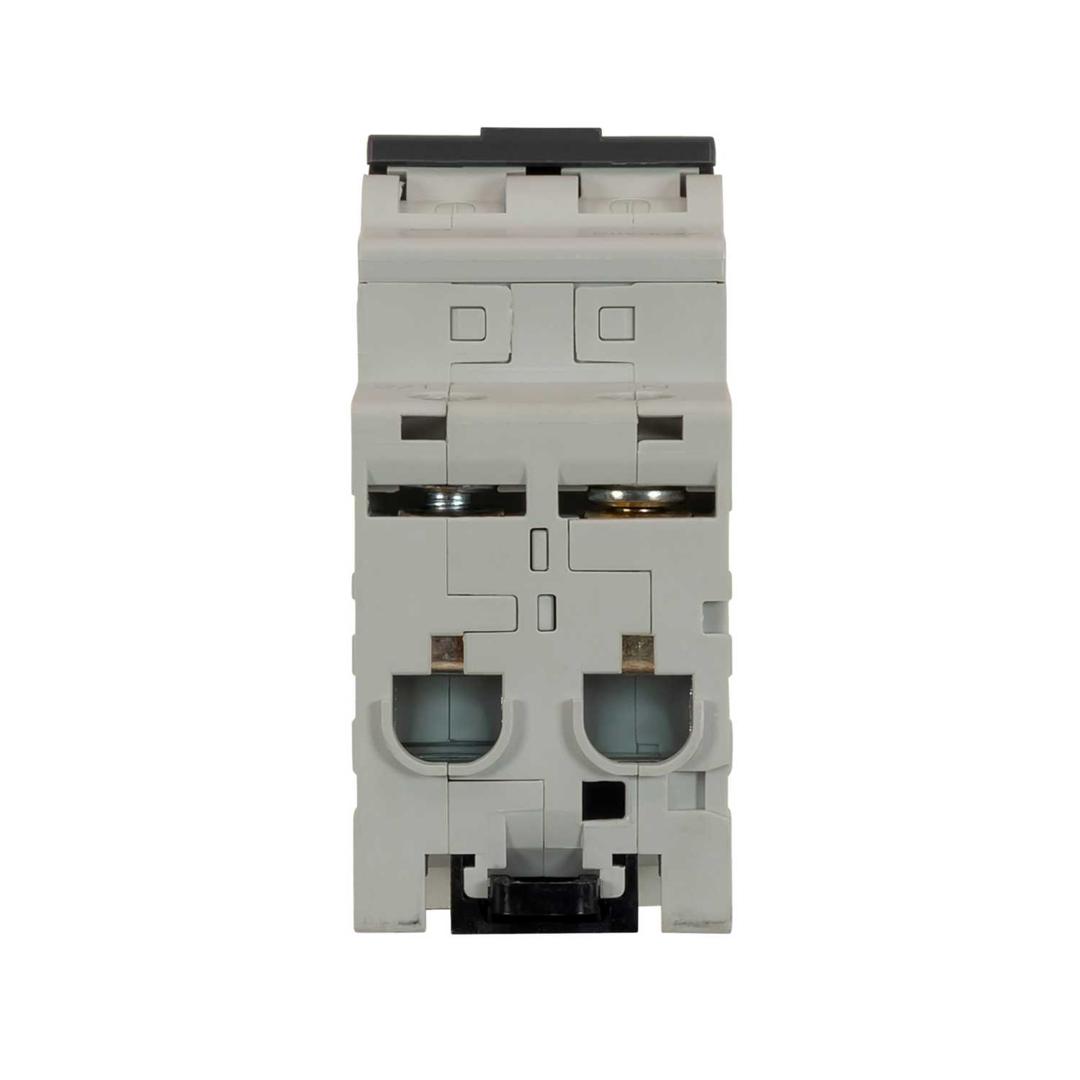

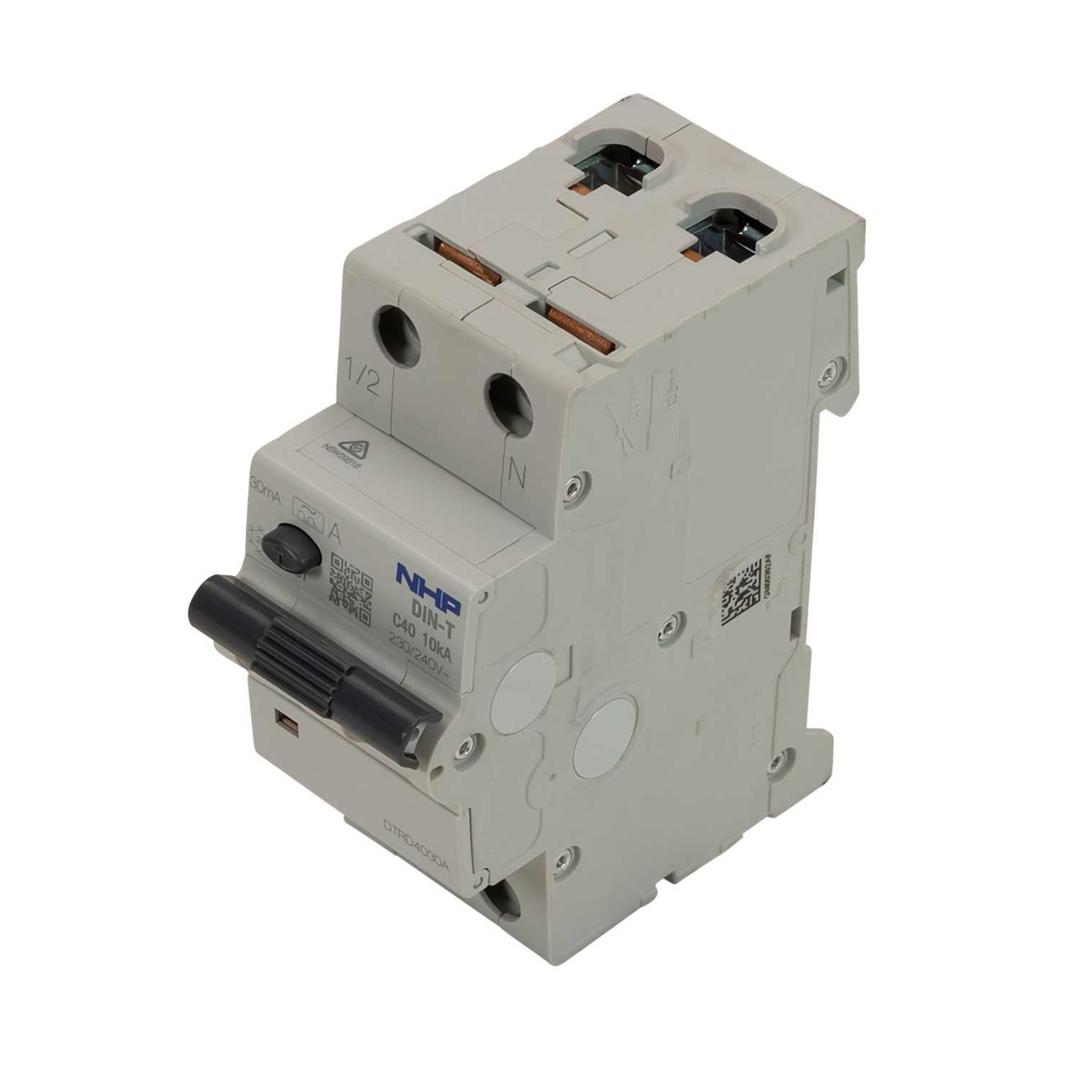

NHP 40A 2 Module 1 Pole and Neutral 10kA 30mA C Curve DIN-T RCBO
Part Number: DTRD4030A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Combines the overcurrent functions of an MCB with the earth fault functions of an RCD
- Two module device
- Type A RCD to sense AC as well as pulsating DC currents
- 30mA sensitivity for general personnel protection
- Breaks both phase and neutral conductors
- Fast connection pin/fork busbar comb
- Inbuilt test switch
- Colour
- Grey
- Current Rating
- 40A
- Depth
- 75mm
- Dimensions
- (H)85 mm x (W)35 mm x (D)75 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 85mm
- Incoming Terminal Capacity
- 35mm²
- Ip Rating
- IP40
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of Poles
- 1P+N
- Outgoing Terminal Capacity
- 35mm²
- Packaging Types
- Each
- Product Range
- DIN-T
- Rcd Type
- A
- Short Circuit Rating
- 10kA
- Standards
- AS/NZS 61009.1 IEC 62423 EN IEC 63000:2018
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Type
- RCBO
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 240V AC
- Weight
- 0.224kg
- Width
- 35mm
