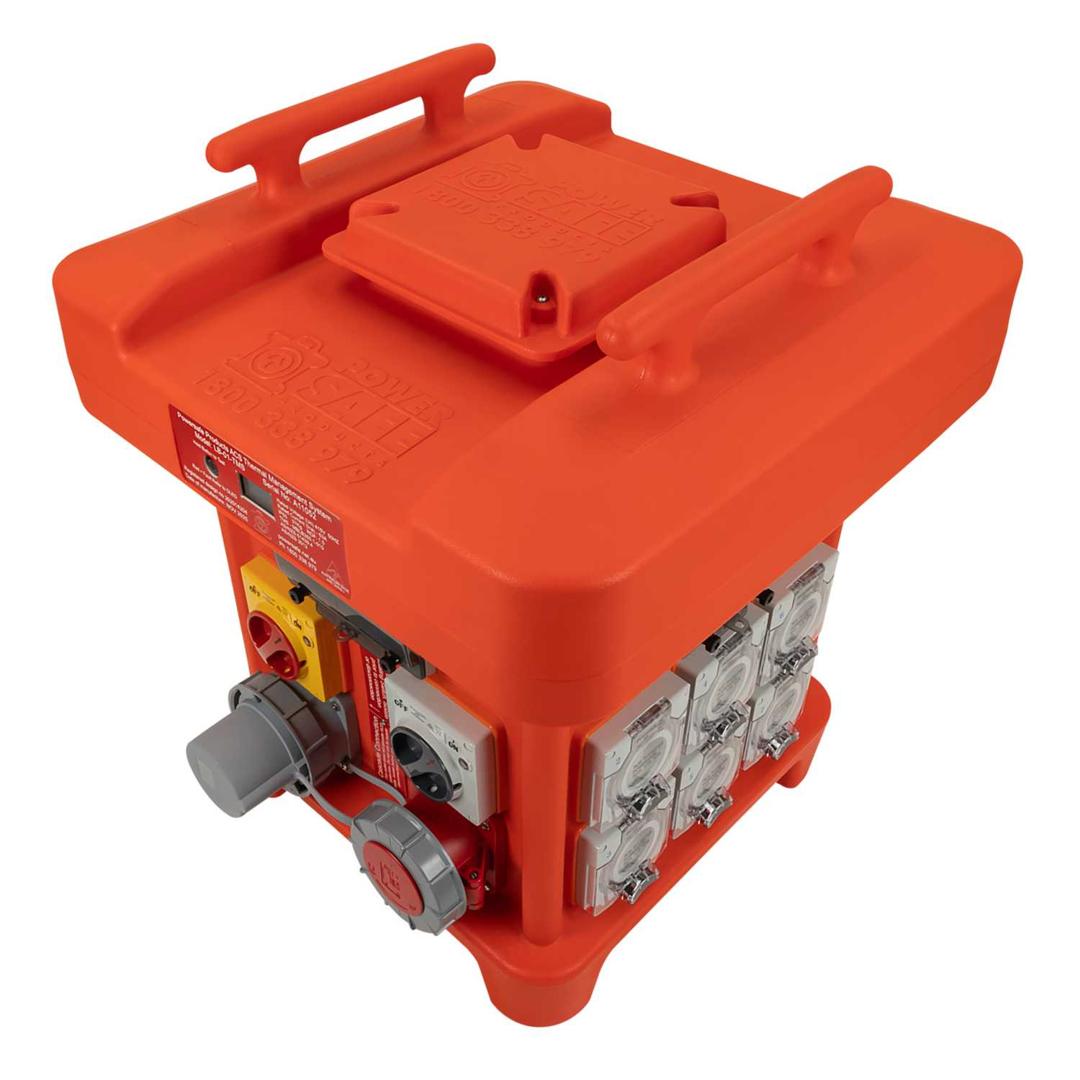

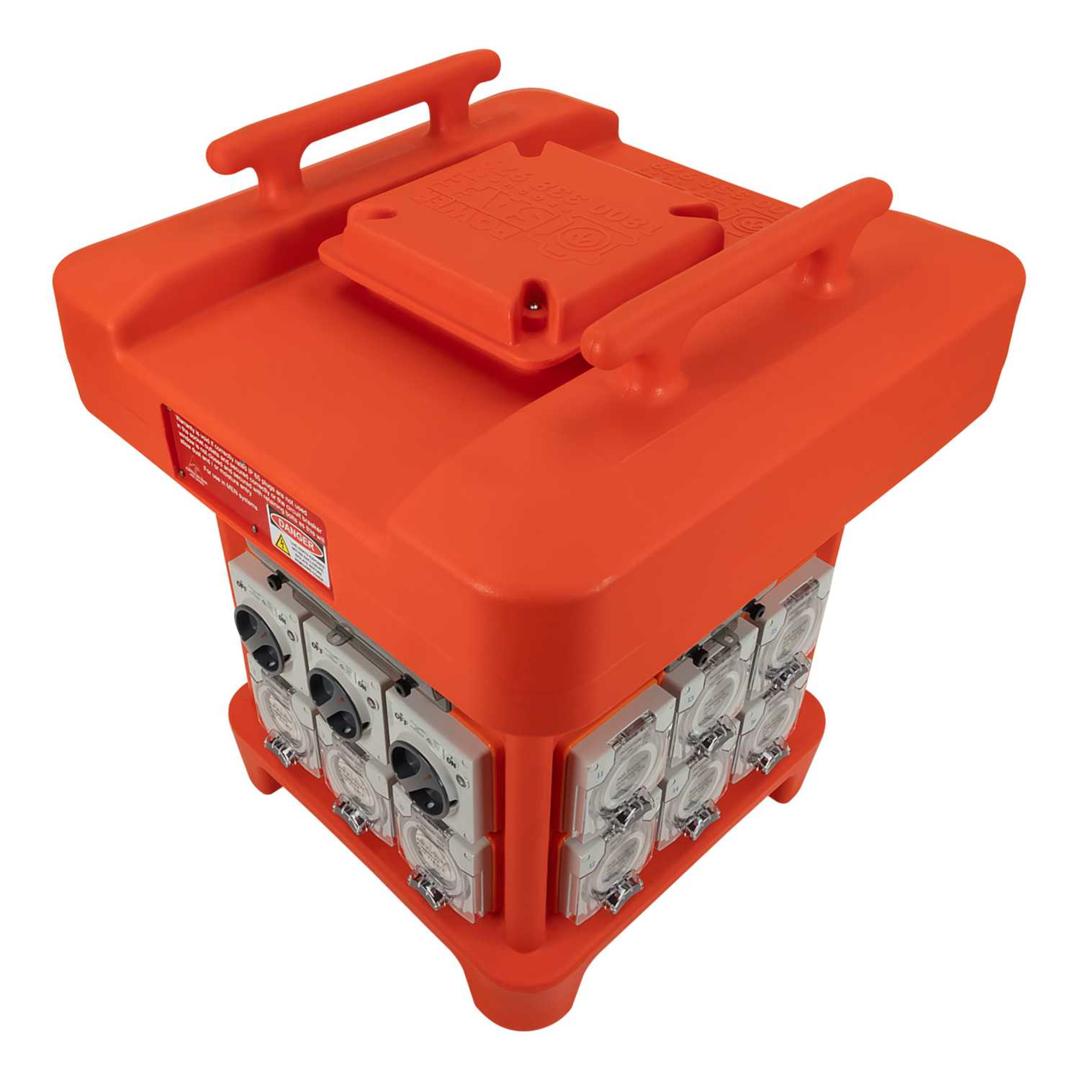

Powersafe 63A Portable Distribution Powerboard with Thermal Management IP65
Part Number: LB01-TMS
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Plug and play design allows the LB01 to be easily moved from site to site
- Main board isolating switch (lockable)
- 1 x 63A 415V 5 pin IP67 CEE Form appliance inlet
- 1 x 63A 415V 5 pin IP67 CEE Form cascade outlet
- 3 x 32A 415V 5 pin IP66 switched socket outlets
- 12 x 15A 240V 3 pin IP66 auto switched outlets
- 1 x 63A 3 pole Main MCB 10kA
- 1 x 63A 4 pole RCD 30mA (for three phase outlets)
- 3 x 32A 3 pole MCB 10kA
- 6 x 20A 2 pole RCBO 10kA 30mA
- 1 x IP66 breather drain
- Fitted with the Powersafe thermal management system
- Colour
- Orange
- Current Rating
- 63A
- Depth
- 530mm
- Dimensions
- (H)660 mm x (W)520 mm x (D)530 mm
- Guarantee
- 1 Year
- Height
- 660mm
- Ip Rating
- IP65
- Material
- V5 Polyethylene
- Packaging Types
- Each
- Product Range
- Portable Power Boards
- Standards
- AS/NZS61439.4 AS/NZS3012 AS/NZS3002
- Type
- Portable Powerboard
- Unspsc V18
- 39121105
- Unspsc V24
- 39121105
- Voltage Rating
- 415V AC
- Weight
- 34kg
- Width
- 520mm
