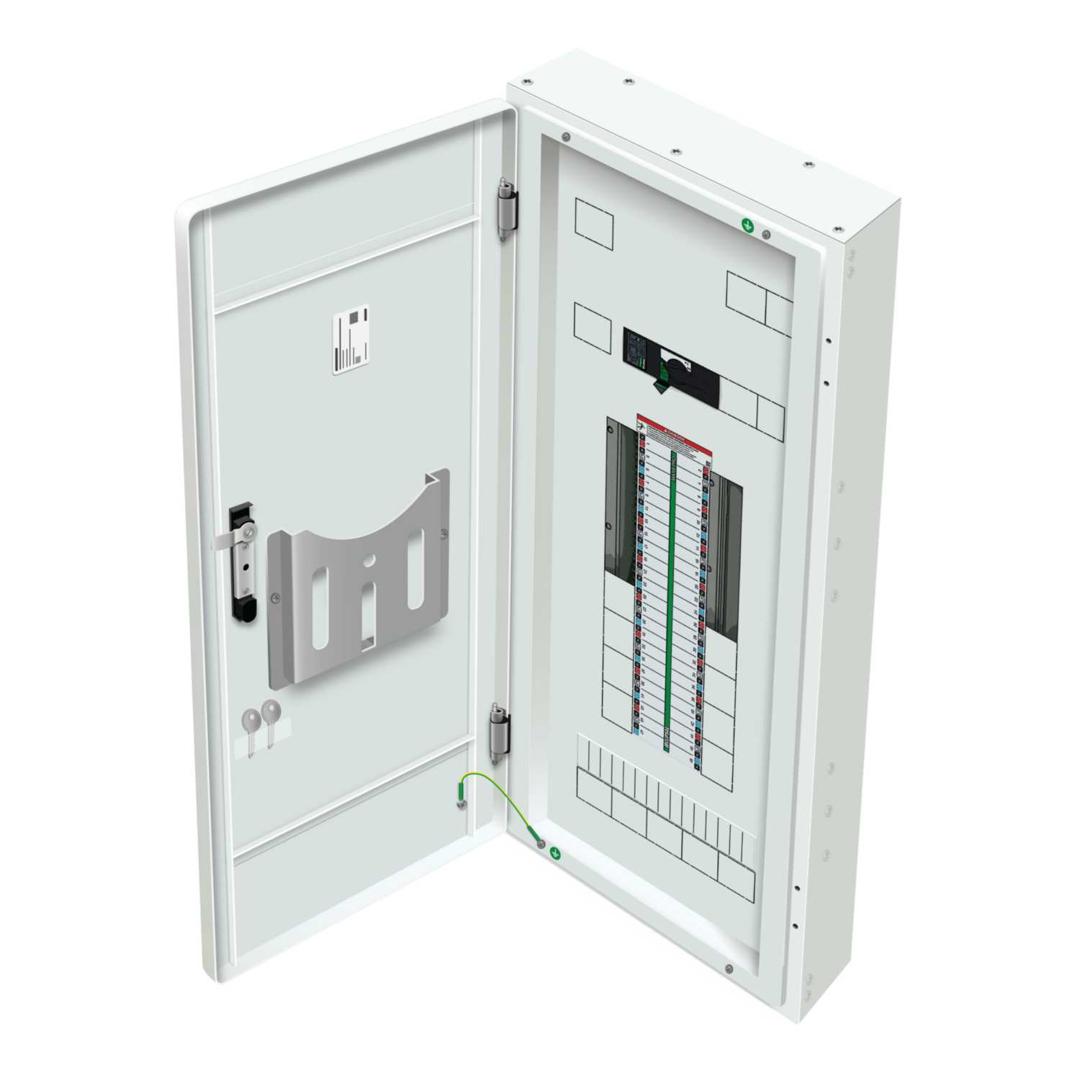

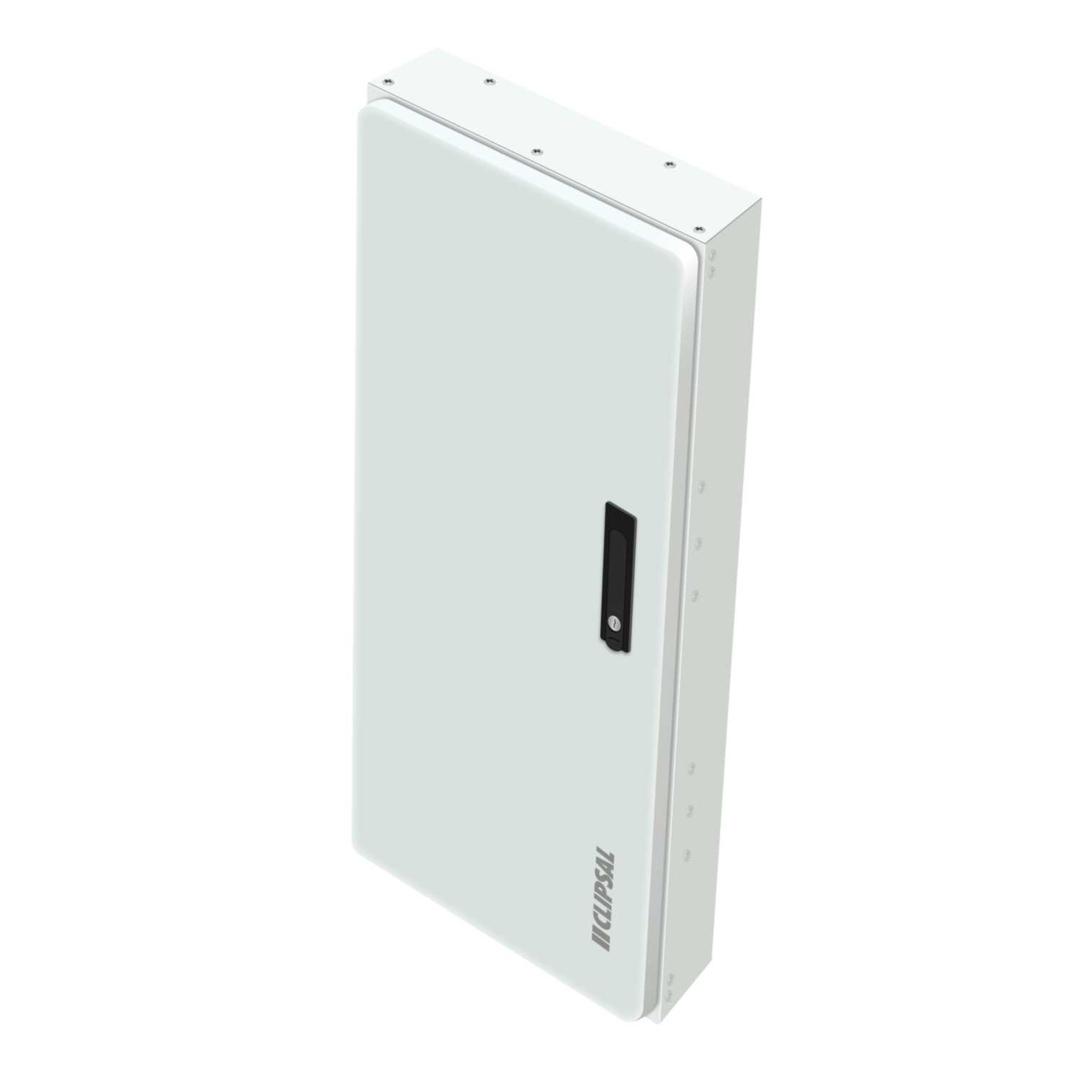

Clipsal 48 Way 250A Main Switch MAX9 PRO Distribution Board White
Part Number: MX9DB48S250
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 phase metal distribution board constructed from powder coated, 1.2mm galvanised steel
- 250A isolator main switch
- 250A rated busbar, neutral and earth bars
- Phase and neutral distributed chassis eliminates the need for neutral flying lead on RCBOs
- Chassis compatible with MAX9 phase neutral devices only (MX9MNxxx, MX9Rxxxx, MX9Axxxx)
- All other Clipsal MAX9 and Schneider Electric Acti9 devices and accessories can be mounted on DIN space provided
- 31 modules of DIN space, 16 modules at the top and 15 modules at the bottom of the board
- Removable gland plates top and bottom of the enclosure
- Supplied with pole fillers, circuit schedule holder and spare CL001 key for door lock
- Busbar Rating
- 250A
- Colour
- White RAL9003
- Current Rating
- 250A
- Depth
- 153mm
- Dimensions
- (H)1058 mm x (W)480 mm x (D)153 mm
- Door Type
- Hinged
- Finish
- Powder Coated
- Guarantee
- 18 Months
- Height
- 1058mm
- IP Rating
- IP30
- Ik Rating
- IK09
- Lockable
- Yes
- Material
- Galvanised Steel
- Mounting
- Surface
- Number Of Outgoing Ways Upto63 A
- 48
- Packaging Types
- Each
- Product Range
- MAX9 PRO
- Standards
- AS/NZS 61439.3, AS/NZS 3000
- Type
- Distribution Board
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V AC
- Weight
- 28kg
- Width
- 480mm
