Fantech 150mm One to Two Room Heat Transfer Kit
Part Number: FANFTPHTK1-2
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- High air velocity into rooms ensures warm air reaches the occupants
- High quality in-line fan includes plug and lead
- Kits designed for average room sizes of 4m x 4m x 2.5m high, or room volume 38m³
- Air flow per outlet approx. 50L/sec
- Minimum velocity at grille outlet is 3.0 to 4.0m/sec
- Larger rooms may require more than one outlet

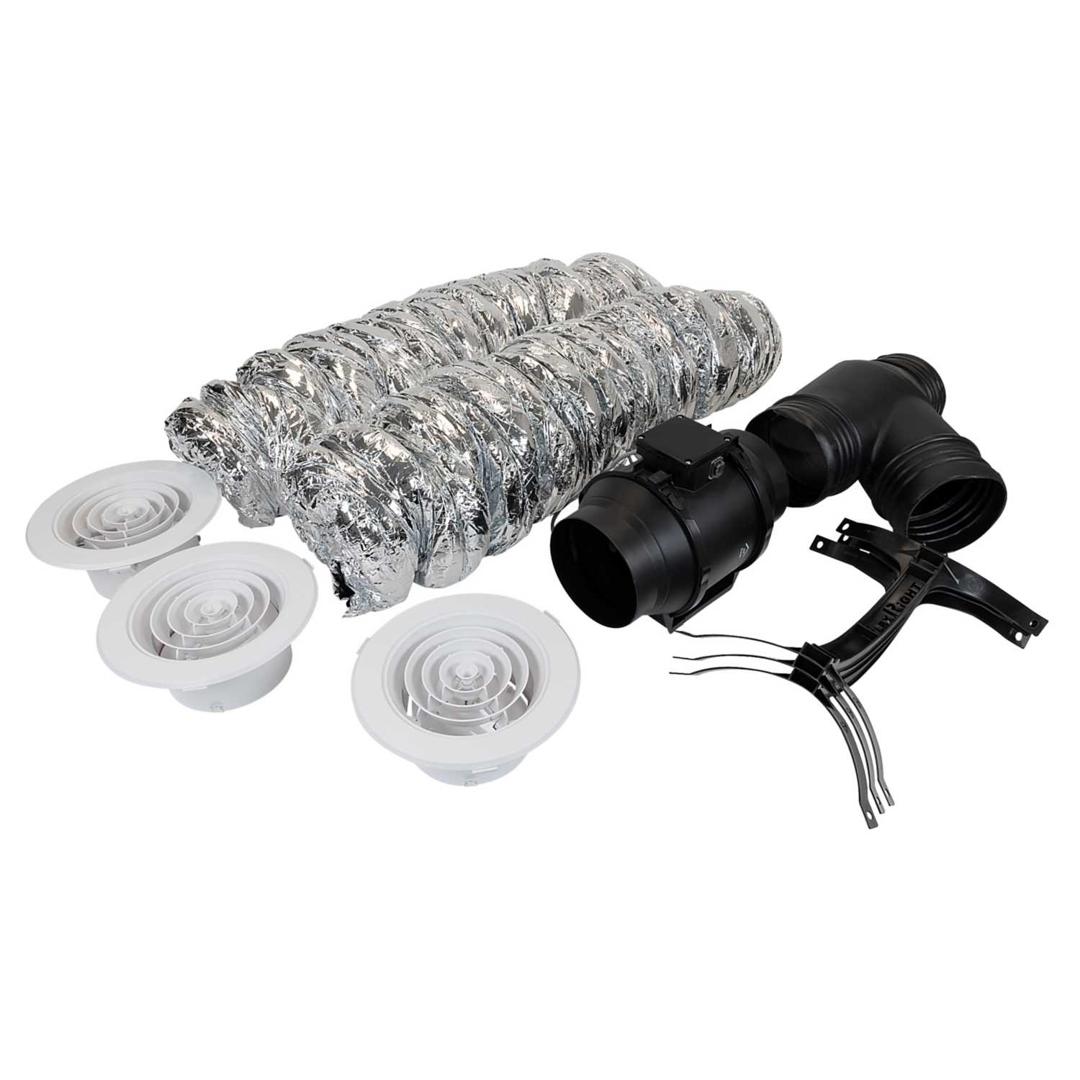

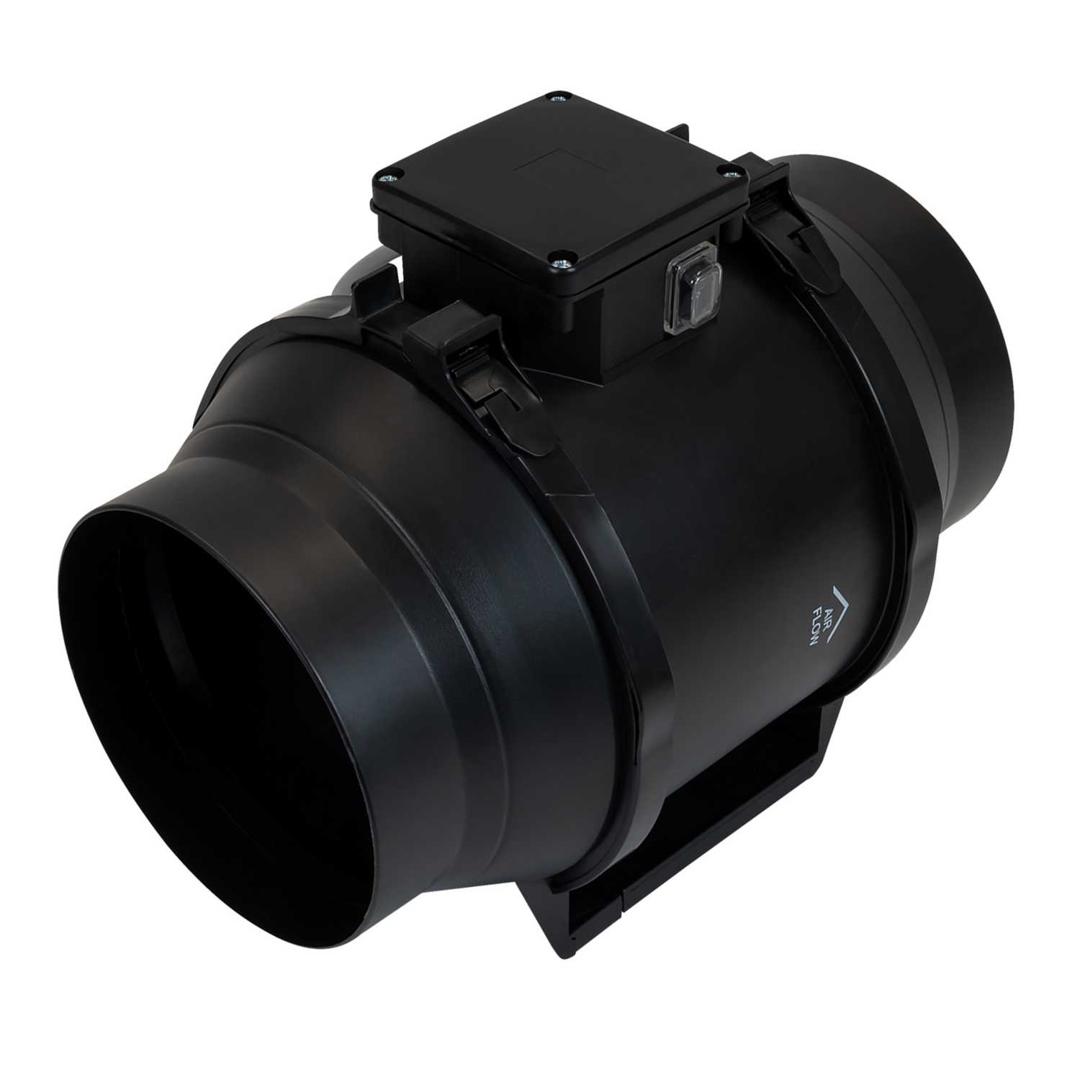

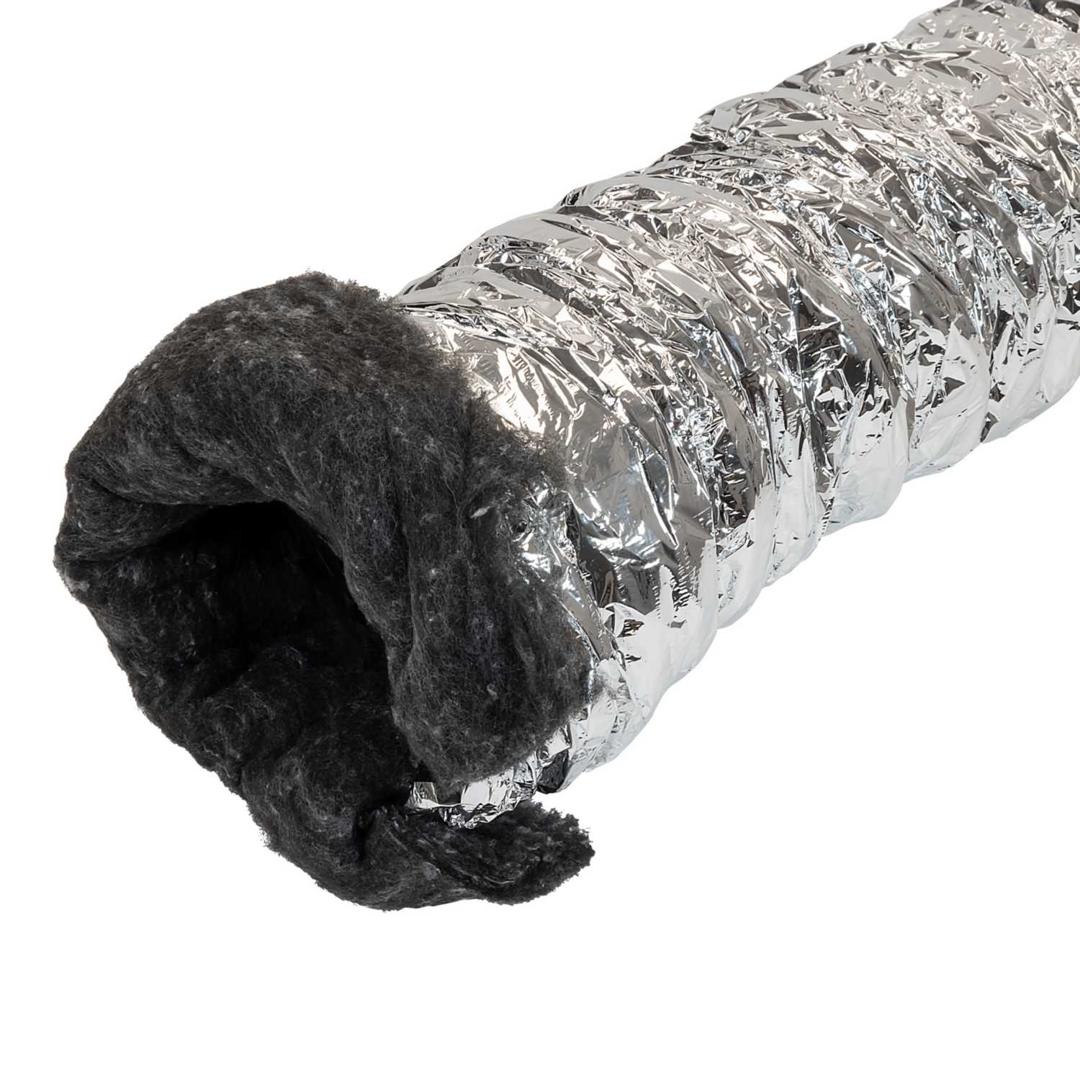

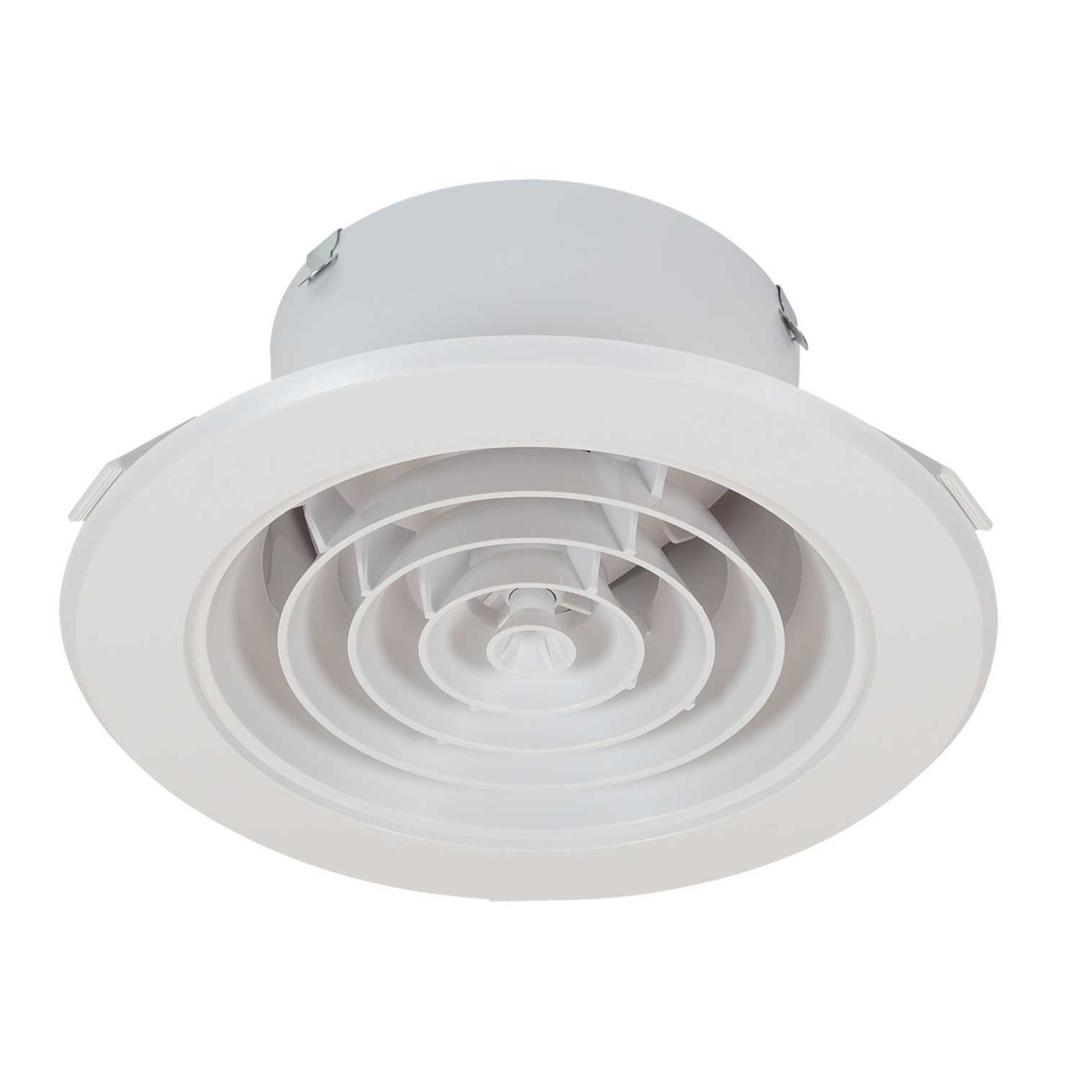

- Kits include 1 x in-line axial fan with 150mm spigot, 1 x 12m of insulated flexible duct, 3 x 150mm ceiling mounted adjustable grilles, 1 x 150mm branch take off and 1 x roll of duct tape
- Optional accessories: VA2.0 speed controller/switch, TFC6 fan control thermostat
- Decibel Rating
- 45 dB(A) @ 3m
- Frequency
- 50 Hz
- Guarantee
- 2 Years
- Ip Rating
- IP44
- Motor Type
- Axial
- Mounting
- Ceiling
- Packaging Types
- Kit
- Power Output
- 50W
- Product Range
- Fan Kits
- Supplied With
- 1 x In-Line Axial Fan with Ø150mm Spigot 12 Meters of Insulated Flexible Duct 3 x Ø150mm Ceiling Mounted Adjustable Grilles 1 x Ø150mm Branch Take Off 1 x Roll of Duct Tape
- Type
- Heat Transfer Kit
- Unspsc V18
- 40101510
- Unspsc V24
- 40101510
- Voltage Rating
- 240V AC
