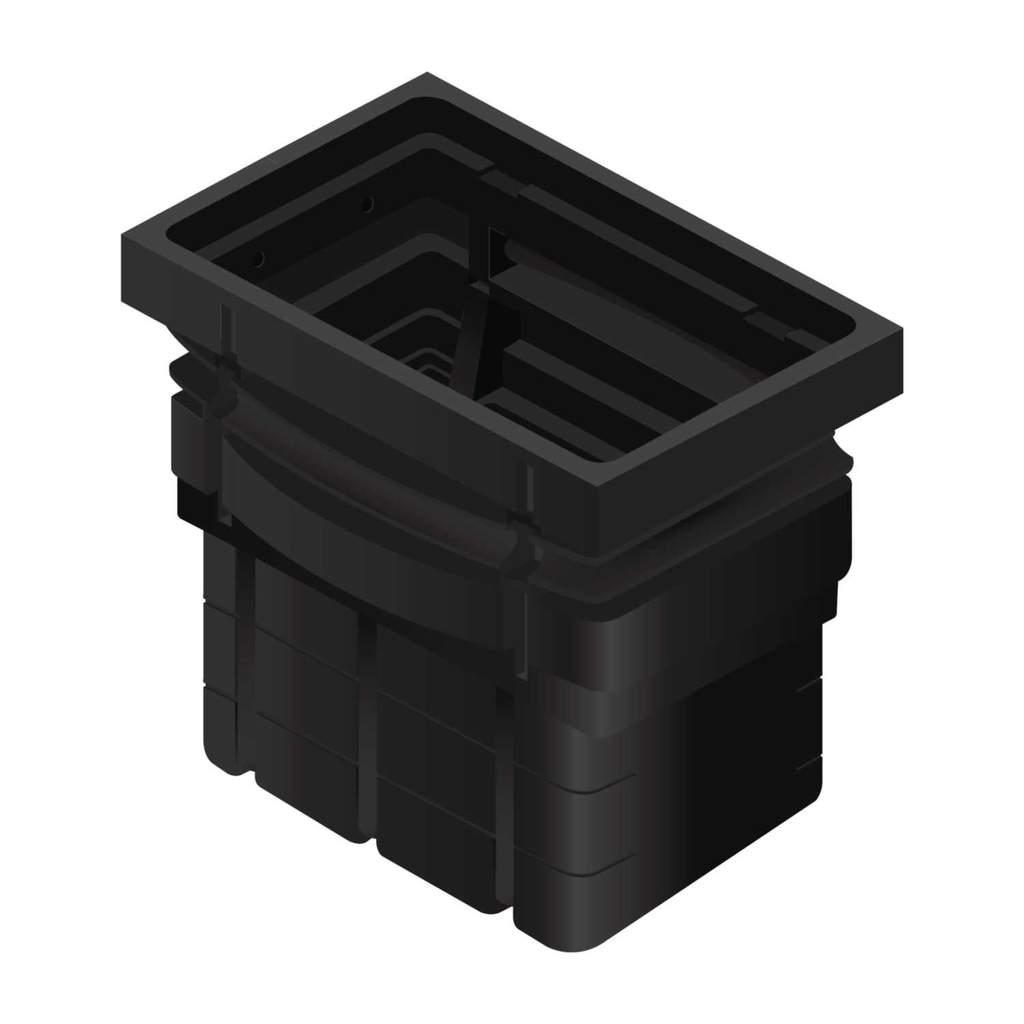

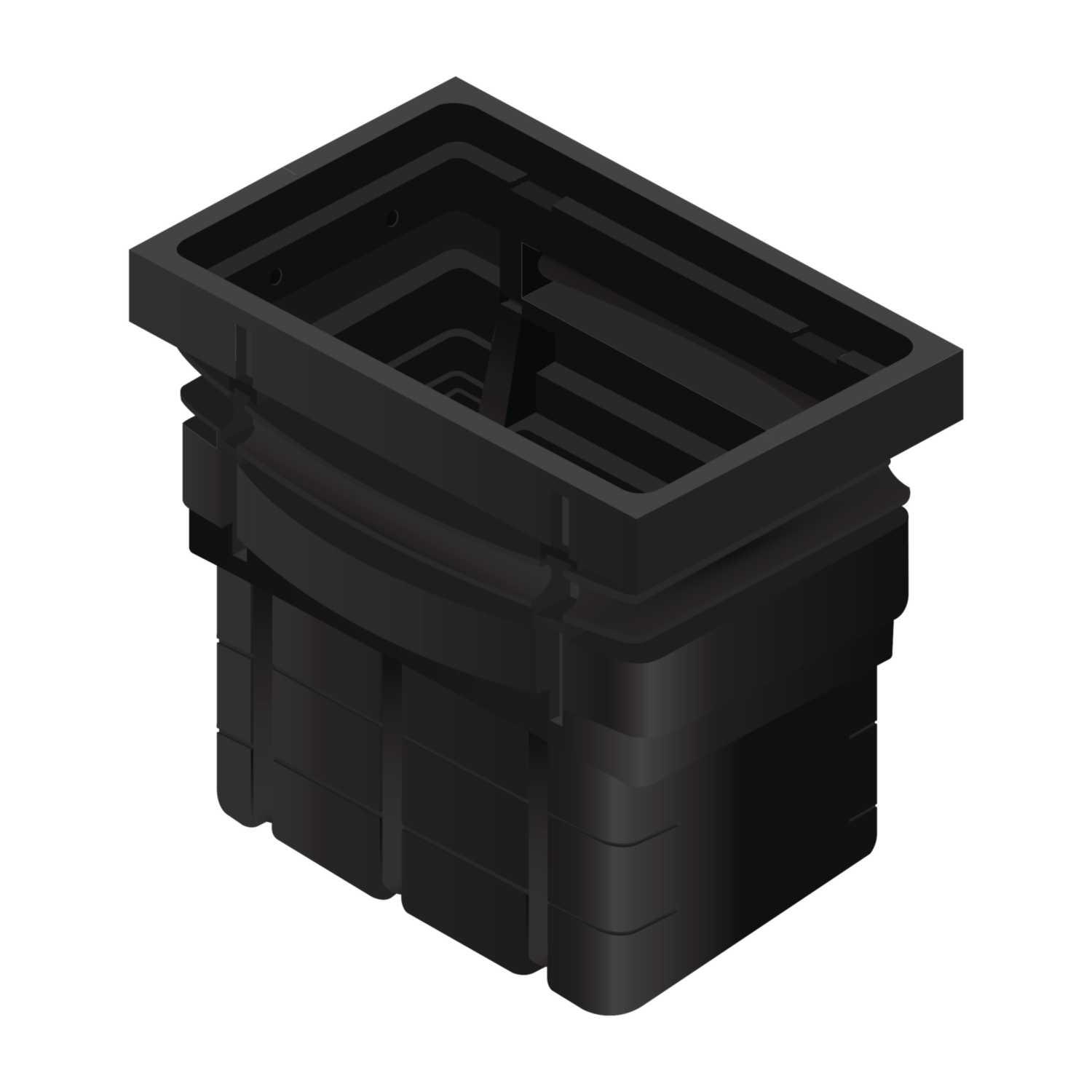

ACO Type 5 Polyethylene Cable Pit
Part Number: 76042
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Underground enclosure that houses and protects electrical cables, ensuring efficient and safe distribution of power, data and telecommunications
- Plastic pit construction offers an economic pit solution for light duty applications. plastic also offers excellent electrical resistivity
- Continuous ribbed wall design for maximum wall strength
- All plastic pits have undergone FEA analysis to ensure optimum pit performance
- Use hole saw to cut conduit hole anywhere on side wall
- Maximum number of holes recommended per pit is limited by conduit quantity and size (contact ACO for guidance if needed)
- Lids fit into rebate at top of pit, whilst access covers must be installed in a cast in situ concrete collar
- Pit can be cut at specific points to create a shallower pit
- Colour
- Black
- Depth
- 635mm
- Dimensions
- (L)713 mm x (W)463 mm x (D)635 mm
- Guarantee
- 1 Year
- Length
- 713mm
- Material
- Polyethylene
- Packaging Types
- Each
- Product Range
- CABLEMATE
- Type
- Cable Pit
- Unspsc V18
- 39121613
- Unspsc V24
- 39121613
- Weight
- 10kg
- Width
- 463mm
