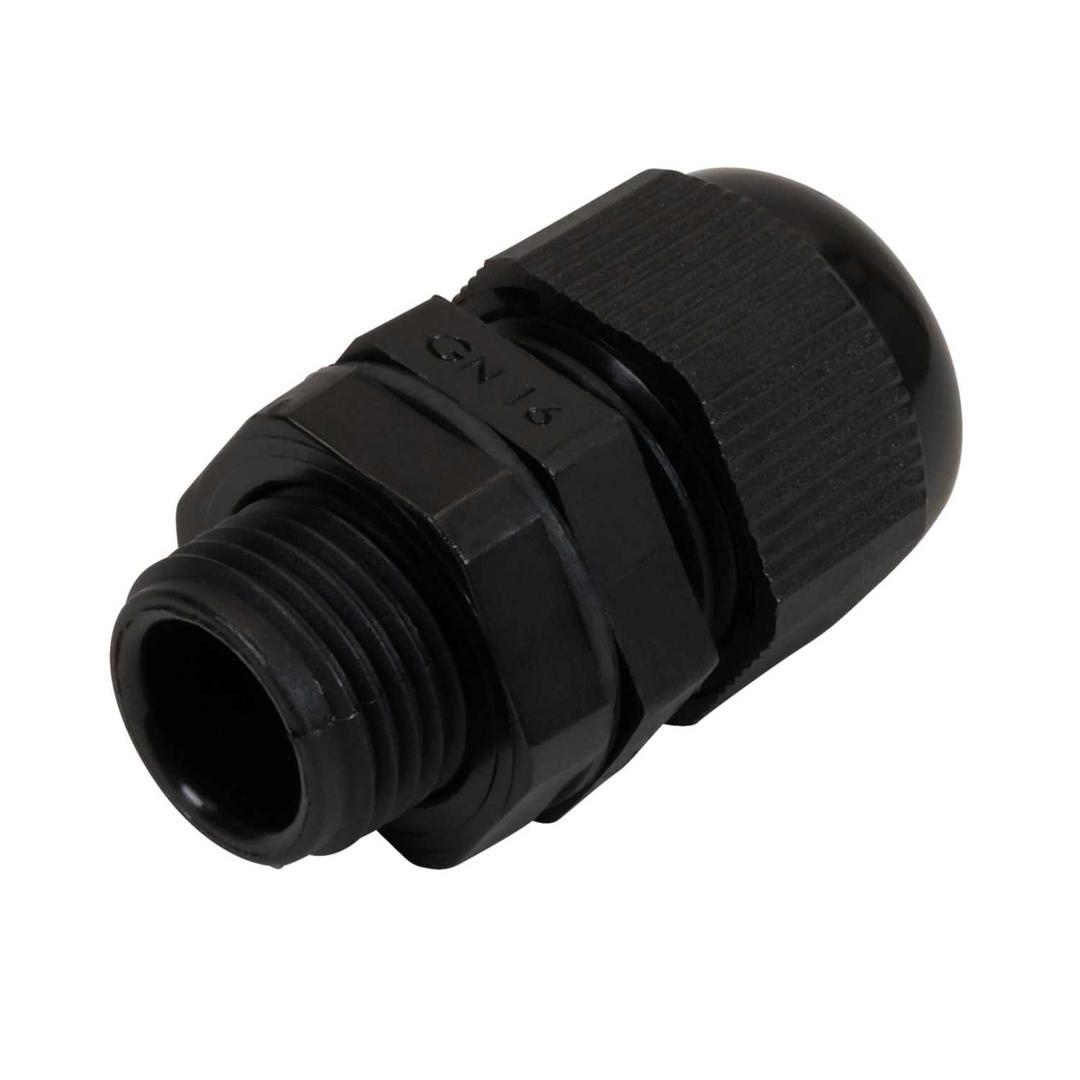

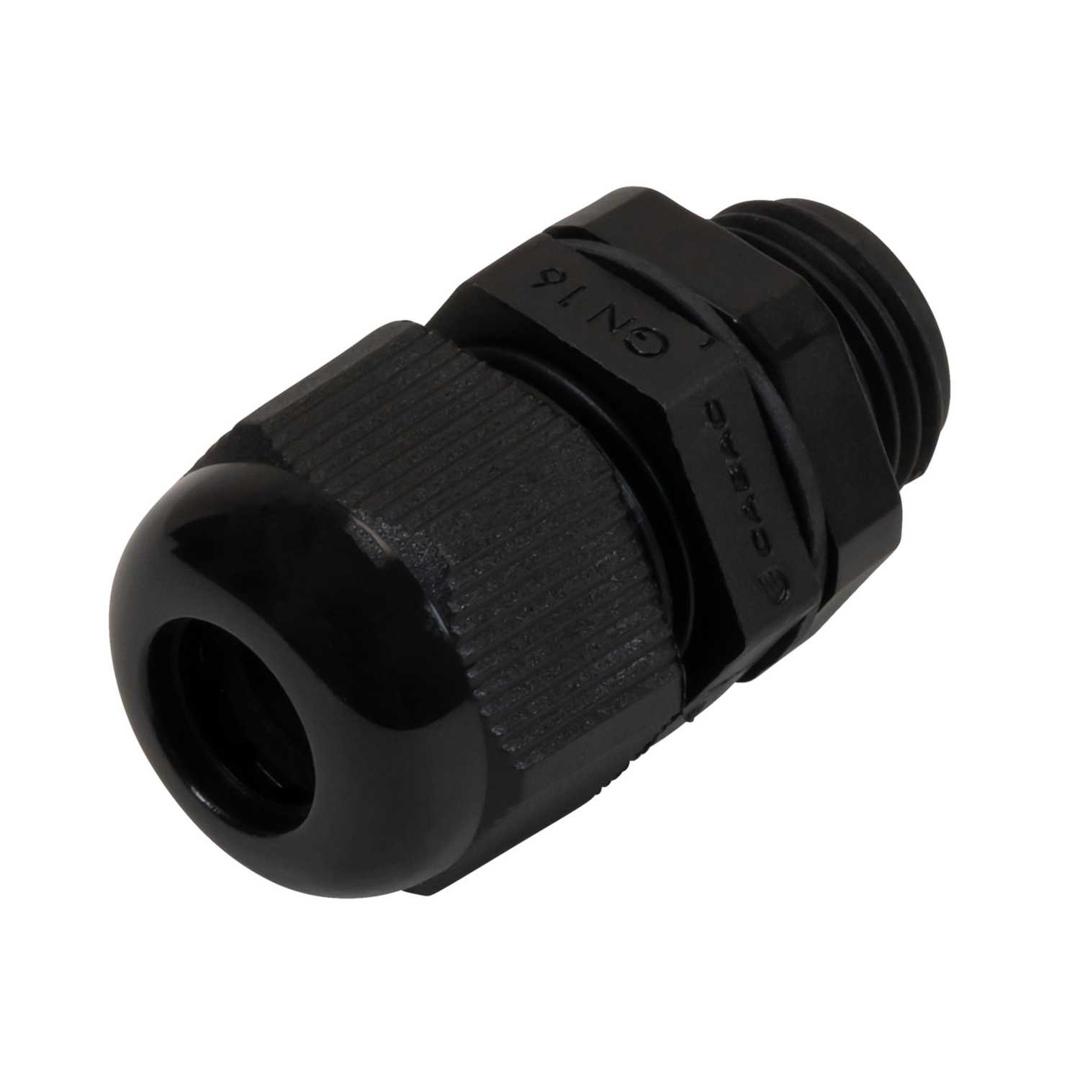

Cabac 16mm Nylon Cable Gland with Locknut IP68 Black
Part Number: GN16
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Metric threaded gland made from polyamide 6.6
- Cable range 5 - 10mm²
- A camera shutter principle in the cable sealing mechanism makes the gland IP68 and 50m submersible
- There is no necessity to disassemble the gland prior to installation, just insert the cable through and tighten up
- Medium resistance to vegetable oils and benzol
- Conforms to standards DIN VDE 0619
- Supplied complete with locknut and body seal
- Max torque: cap - 6 N m, nut - 2.82 N m
- Cable Size Range
- 5 - 10mm²
- Colour
- Black
- Diameter
- 16mm
- Dimensions
- (Dia)16 mm
- Guarantee
- 1 Year
- Ip Rating
- IP68
- Material
- Polyamide 6.6
- Operating Temperature Range
- 40 - 100°C
- Packaging Types
- Each
- Product Range
- Nylon Glands
- Standards
- DIN VDE 0619
- Supplied With
- Locknut
- Thread Size Male
- 16mm
- Type
- Nylon Cable Gland
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.004kg
