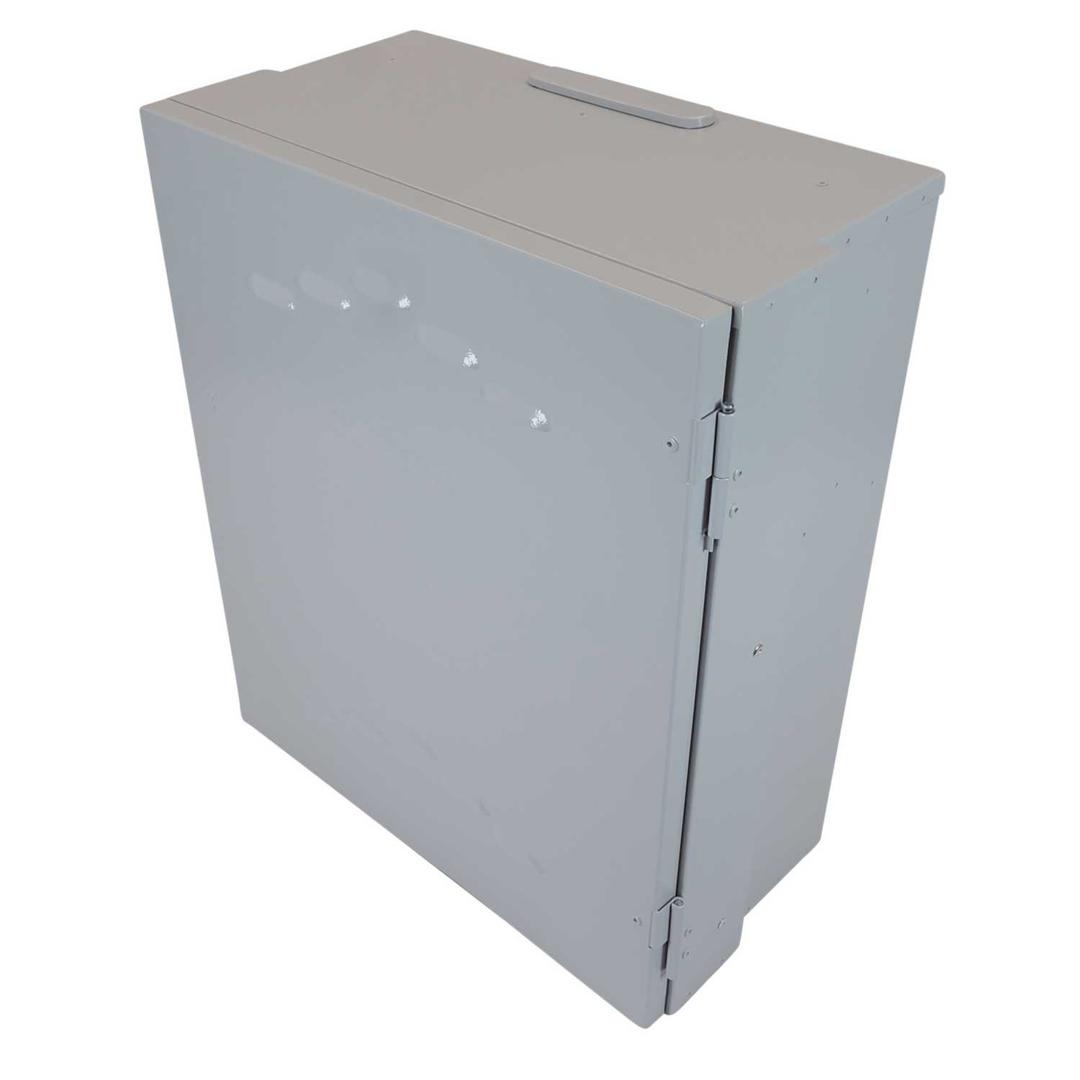

Clipsal SA 24 Module Meter Box Resi MAX Beige 600mm
Part Number: 230DRAS1MI
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

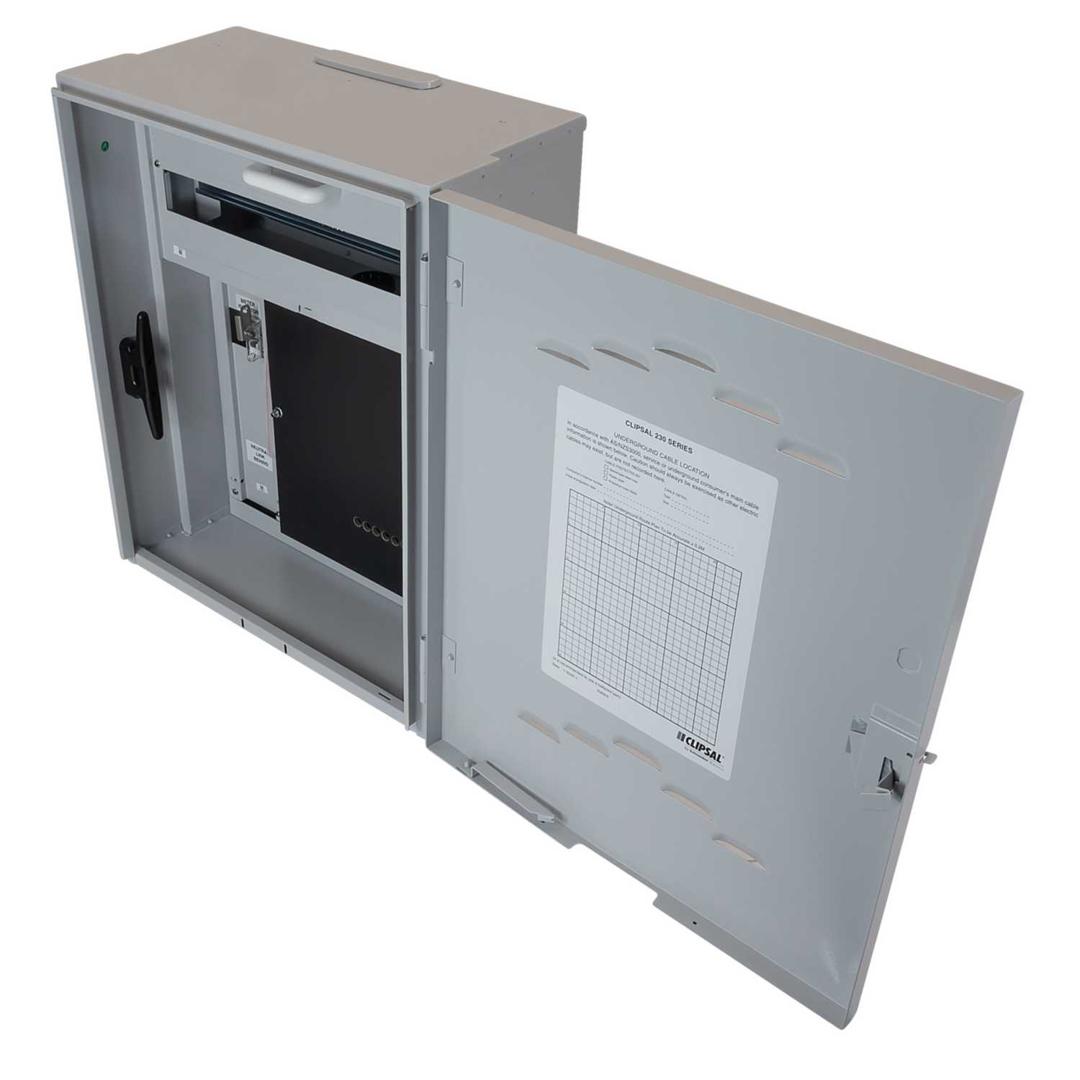

- Surface or semi flush meter box
- Ventilated removable door with door retainer and provision for locking
- 24 module DIN rail distribution board
- Knock outs top and bottom
- Supplied with meter isolator, earth and neutral grid assembly, removable meter panel, enclosure, DIN rail and fascia plate
- Meter isolator is 63A, single pole, 6kA MCB
- Powder coated merino beige colour
- Suitable to comply with South Australia service and installation rules
- Colour
- Beige
- Depth
- 256mm
- Dimensions
- (H)600 mm x (W)500 mm x (D)256 mm
- Finish
- Epoxy Powder Coated
- Guarantee
- 1 Year
- Height
- 600mm
- Material
- Galvanised Steel
- Mounting
- Surface or Semi Flush
- Packaging Types
- Each
- Product Range
- Resi MAX
- Standards
- AS/NZS 3000
- Suitable For
- South Australia
- Type
- Meter Box
- Unspsc V18
- 39121303
- Unspsc V24
- 39121303
- Weight
- 16.3kg
- Width
- 500mm
