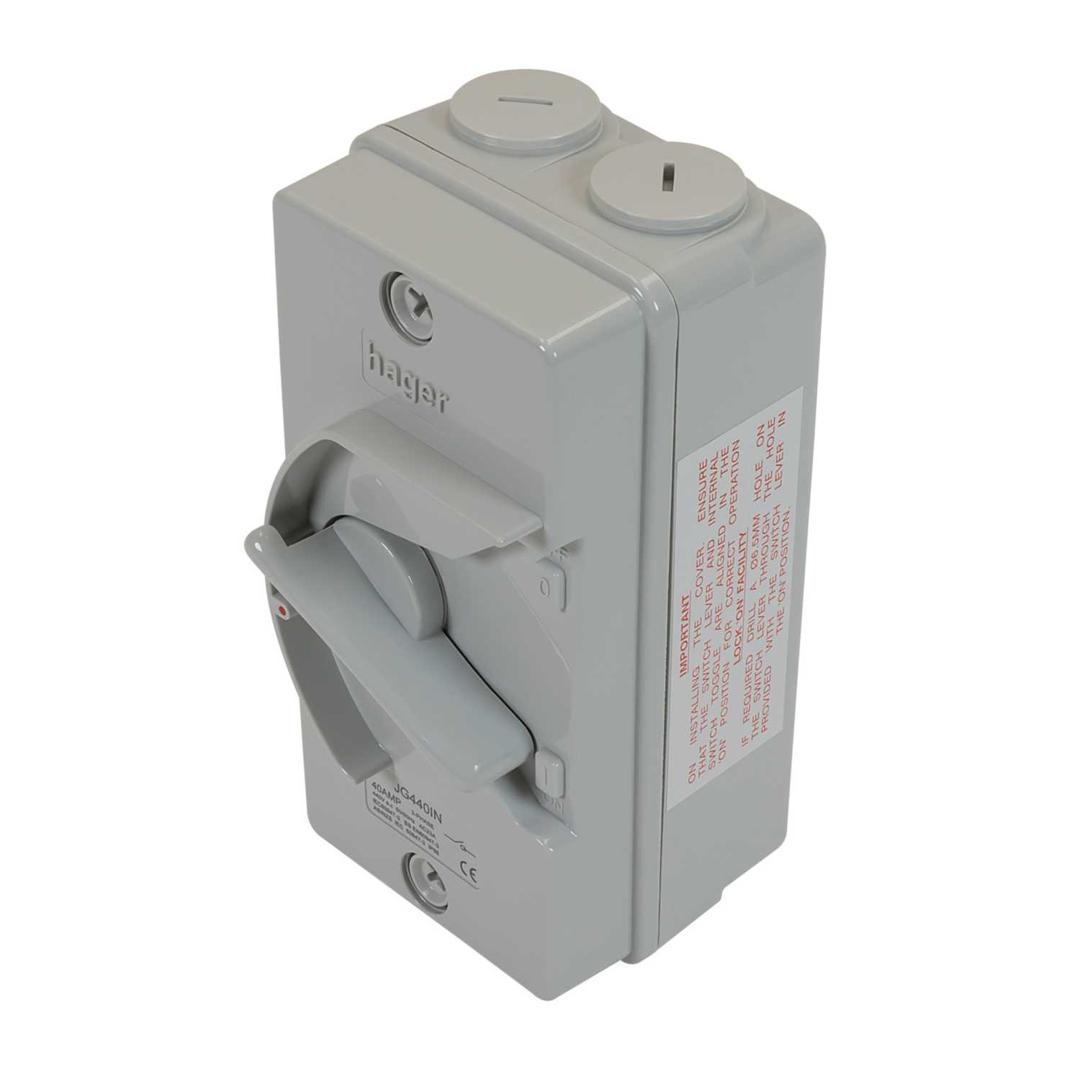

Hager 40A 3 Pole and Switched Neutral Weatherproof Isolator IP66 Grey
Part Number: JG440IN
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 4 pole IP66 switch disconnector for indoor or outdoor use
- Can be used to isolate motor/compressor loads without derating
- AC-21A, AC-22A, AC-23A for switching any type of load from resistive to highly inductive loads
- External material is UV stabilised polycarbonate
- 25mm top and bottom cable entry hole caps
- 25mm and 20mm conduit entry knock-cuts
- Provision for padlocking in both ON and OFF position
- Colour
- Grey
- Current Rating
- 40A
- Depth
- 87mm
- Dimensions
- (H)170 mm x (W)84 mm x (D)87 mm
- Frequency
- 50 Hz
- Guarantee
- 2 Years
- Height
- 170mm
- Ip Rating
- IP66
- Material
- Polycarbonate
- Mounting
- Surface
- Number Of Poles
- Triple Pole & Switched Neutral
- Packaging Types
- Each
- Product Range
- JG
- Shape
- Rectangular
- Standards
- AS/NZS IEC 60947-3
- Terminal Capacity Live Neutral
- 1 x 16mm²
- Type
- Weatherproof Isolator
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 440V AC
- Weight
- 0.5kg
- Width
- 84mm
