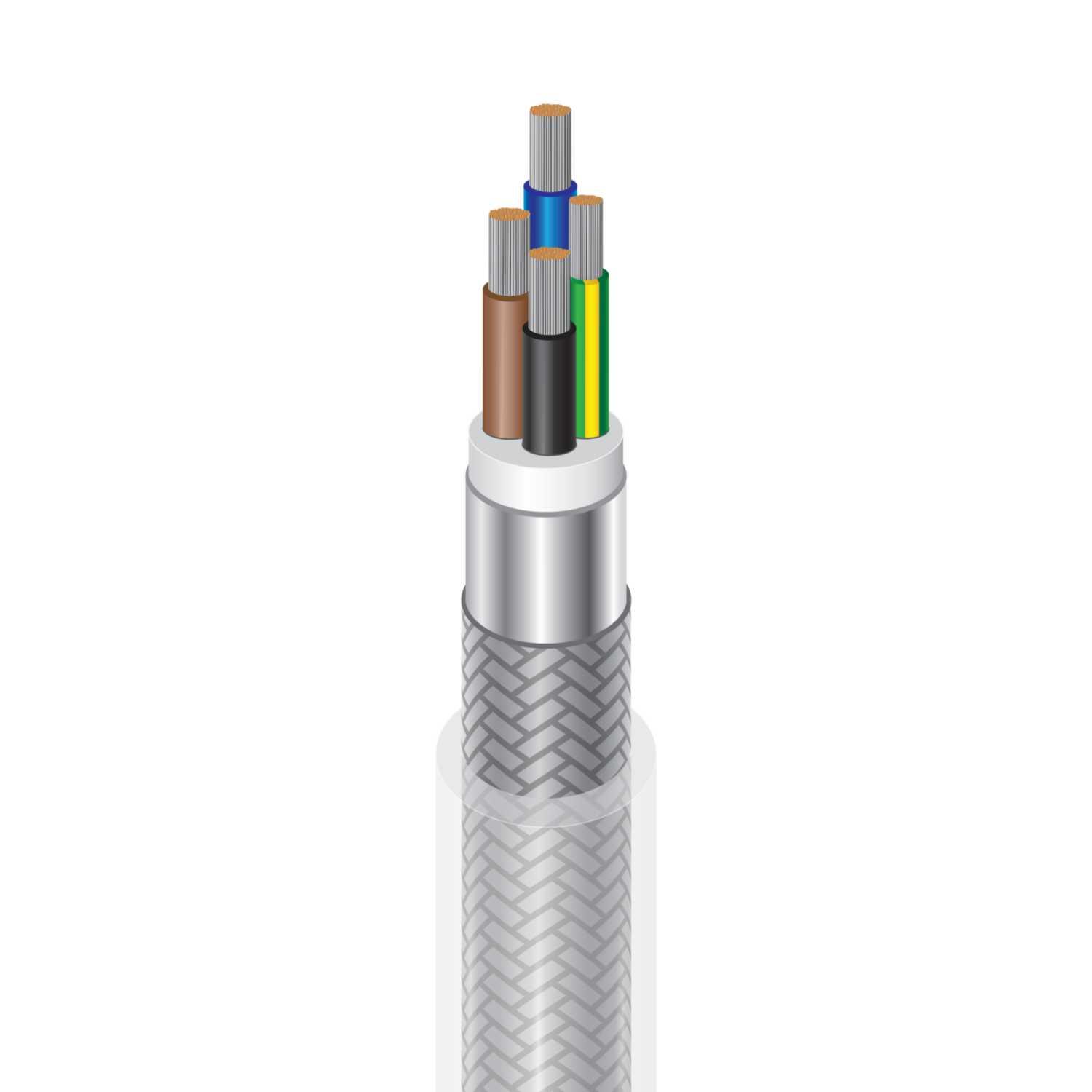

Electra 10mm² 3 Core and Earth VSD Cable Clear 100m Drum (Sold per Metre)
Part Number: VSD3100E
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Supply motors from variable speed controllers in fixed installations
- Designed to significantly reduce radiated interference from electrical noise
- Cables can be laid unenclosed, enclosed in conduit, mounted on trays or in underground ducts
- Class 2 plain annealed copper conductors
- Galvanised steel wire amour
- Black, blue, brown and green/yellow cores
- Greenstar approved
- Armour Type
- SWA [Galvanised Steel Wires]
- Colour
- Clear
- Conductor Class
- 2
- Cross Sectional Area
- 10mm²
- Dimensions
- (L)100 m
- External Diameter
- 19.8mm
- Finish
- Plain Annealed
- Guarantee
- 1 Year
- Length
- 100m
- Material
- Copper
- Number Of Cores
- 3 E
- Online Search Priority
- 1
- Packaging Types
- Drum
- Product Range
- VSD
- Sheath
- 5V-90 PVC
- Sheath Thickness
- 1.8mm
- Standards
- AS/NZS 5000.1 AS/NZS 3808 AS1125
- Type
- Variable Speed Drive Cables (VSD)
- Unspsc V18
- 26121603
- Unspsc V24
- 26121603
- Weight
- 0.73kg
