Legrand 24 Pole Distribution Enclosure Plexo³ IP65
Part Number: 601982
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 24 way, 2 row, surface mount loadcentre
- The design of Plexo³ enclosures makes them suitable for use in outdoor and industrial applications, as well as in agricultural and photovoltaic installations
- Class II insulated enclosure
- Impact resistant reinforced polystyrene material
- IP65 - IK09
- Self-extinguishing: resistance to incandescent wire 650°C
- Rated insulation voltage 400V DC

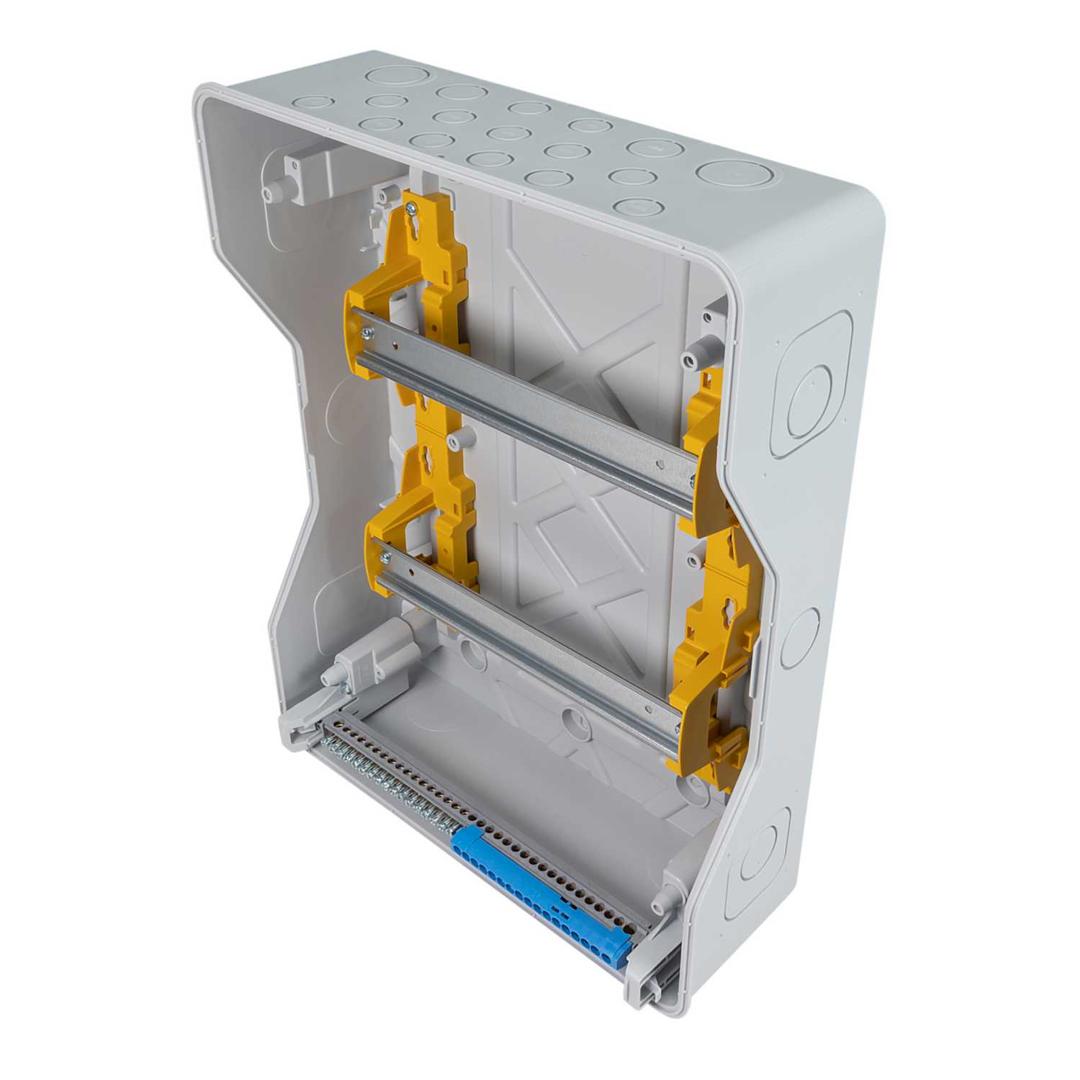

- DIN rail, earth and neutral bars included

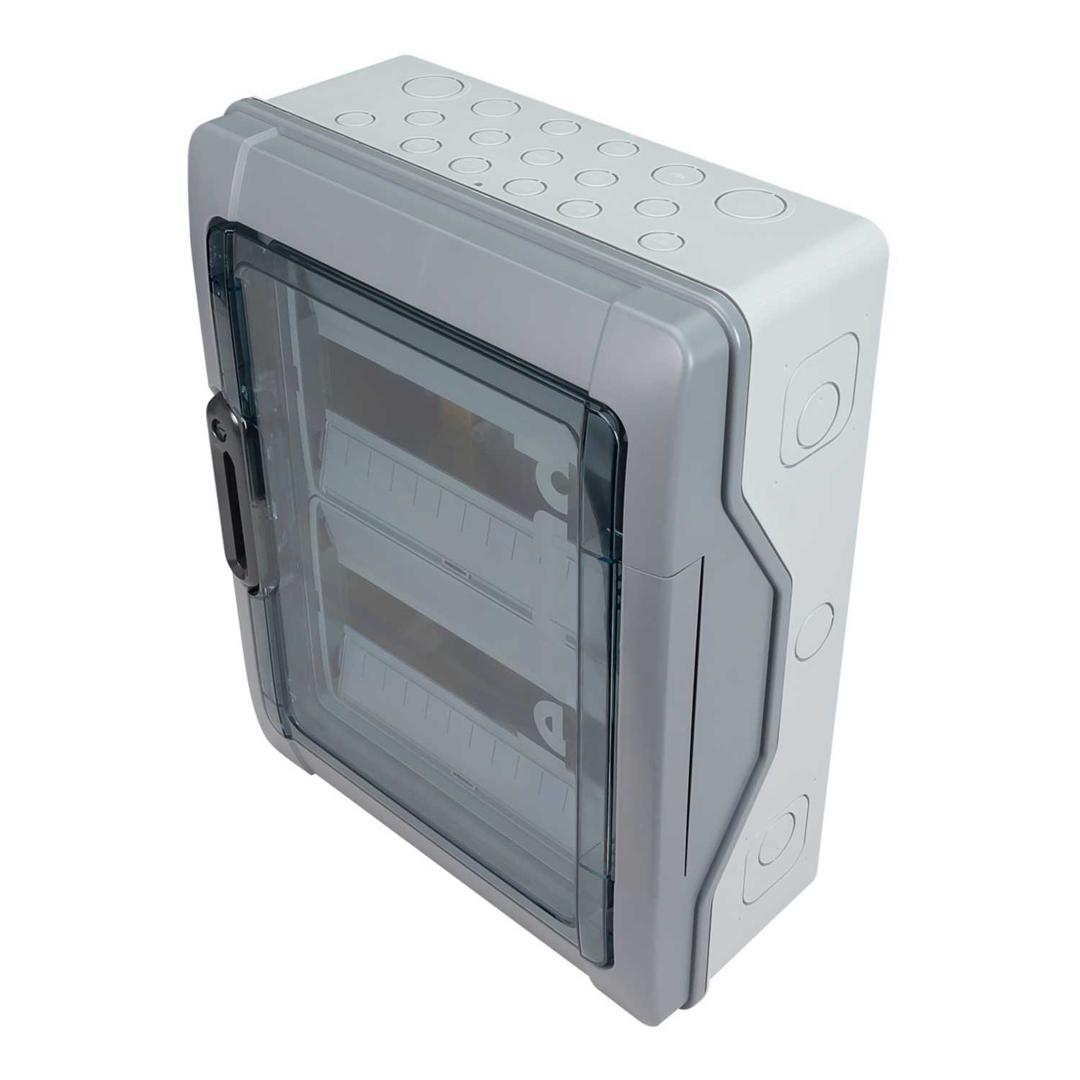

- Transparent polycarbonate door, hinged at the side
- Door and enclosure fully reversible
- Colour
- Light Grey
- Depth
- 161mm
- Dimensions
- (H)432 mm x (W)340 mm x (D)161 mm
- Guarantee
- 1 Year
- Height
- 432mm
- Material
- Polystyrene
- Mounting
- Surface
- Number Of Modules
- 24
- Packaging Types
- Each
- Product Range
- Plexo³
- Standards
- AS/NZS 61439.3
- Type
- Distribution Enclosure
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Weight
- 3.181kg
- Width
- 340mm
