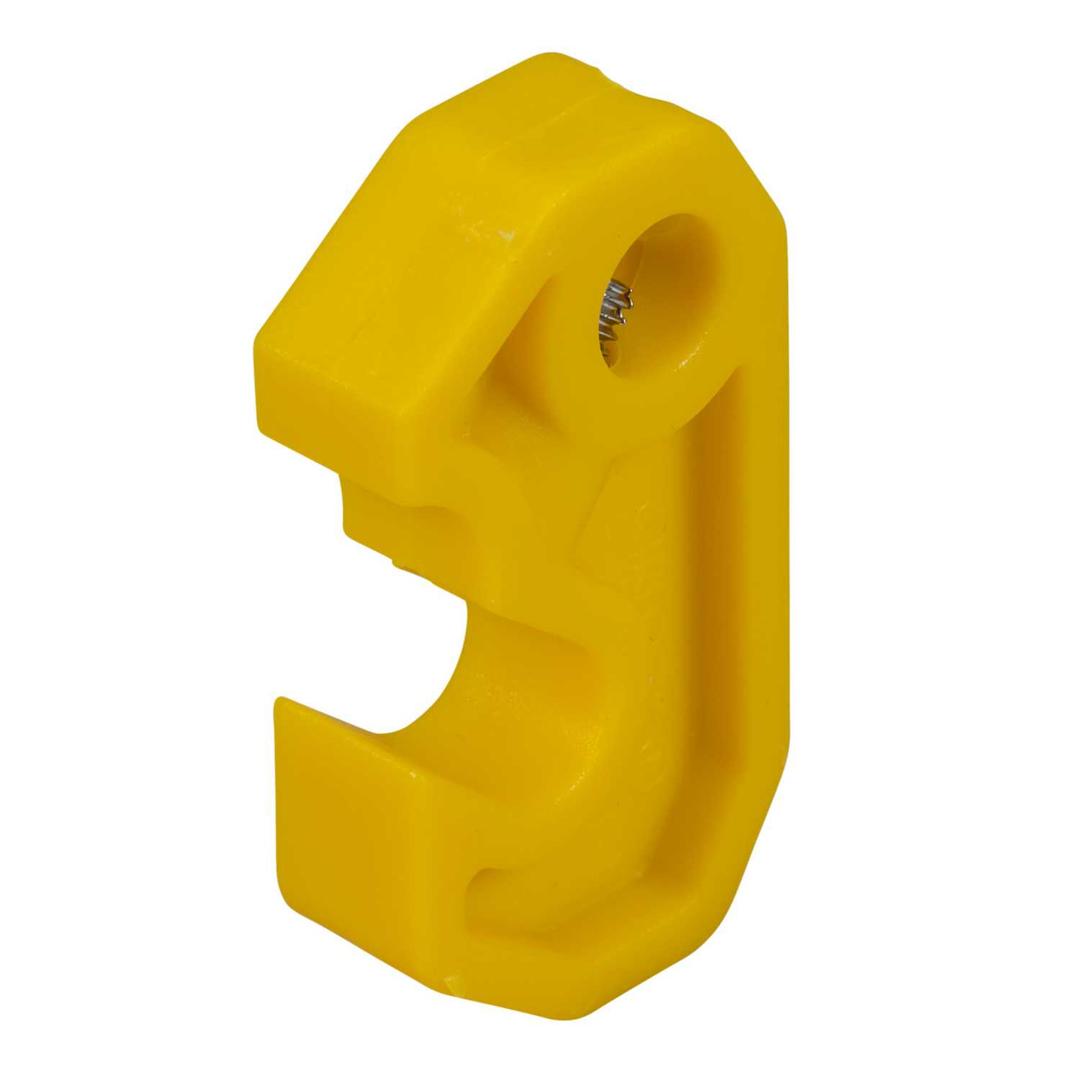

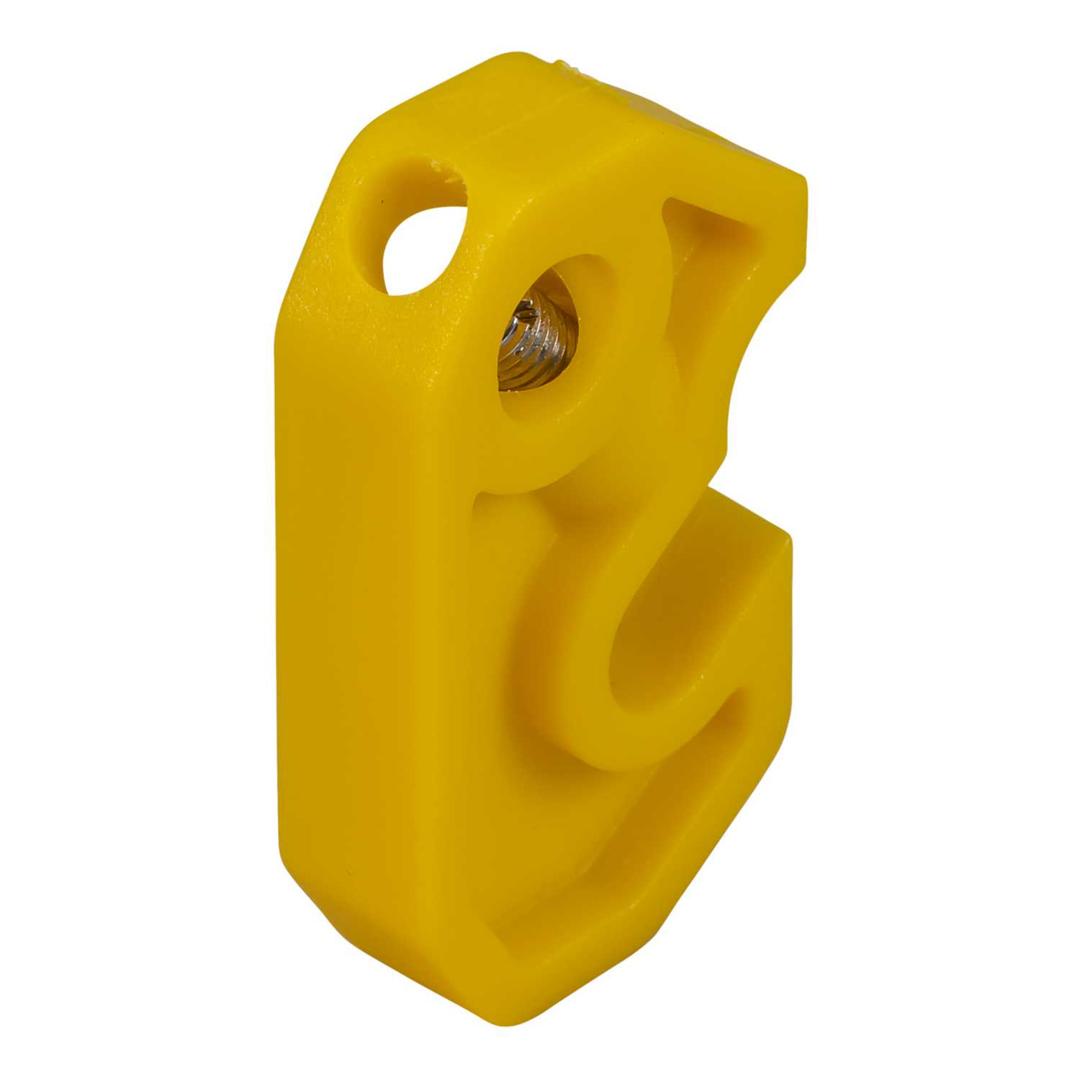

Cirlock Universal Lockout for MCBs Yellow
Part Number: CIRUCL1
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Will lock out most types of miniature circuit breakers
- Supports 1-4 pole circuit breakers
- Maximum toggle size it can clamp is 8mm thick
- 1 x 8mm padlock hole
- Application: Clamp UCL-1 onto the circuit breaker toggle in the OFF position, using a small screwdriver tighten the set screw in the device Place a padlock through the hole to prevent access to the screw
- Colour
- Yellow
- Depth
- 10mm
- Dimensions
- (H)42 mm x (W)25 mm x (D)10 mm
- Guarantee
- 1 Year
- Height
- 42mm
- Material
- Nylon Plastic with Zinc Plated Metal Set Screw
- Packaging Types
- Each
- Product Range
- Circuit Breaker Lockouts
- Type
- MCB Lockout
- Unspsc V18
- 46171511
- Unspsc V24
- 46171511
- Weight
- 0.009kg
- Width
- 25mm
