Schneider Harmony 9001K 2 Direction Spring Return to Zero Metal Joystick Controller
Part Number: 9001K71
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

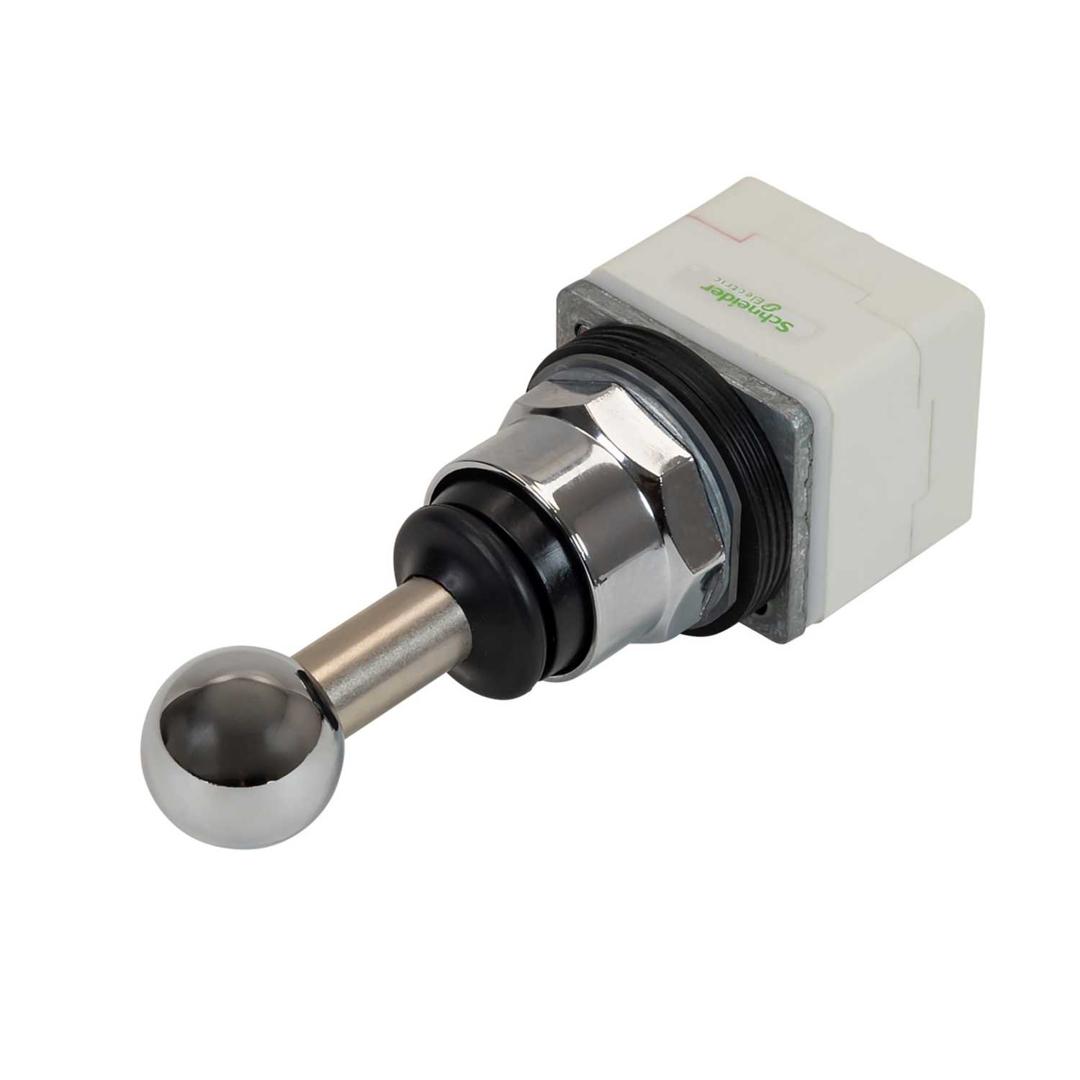

- Joystick controller has 3 positions, operates with spring return to centre position
- Chromium-plated metal bezel
- Joystick controller provides an ergonomic interface for controlling your machines

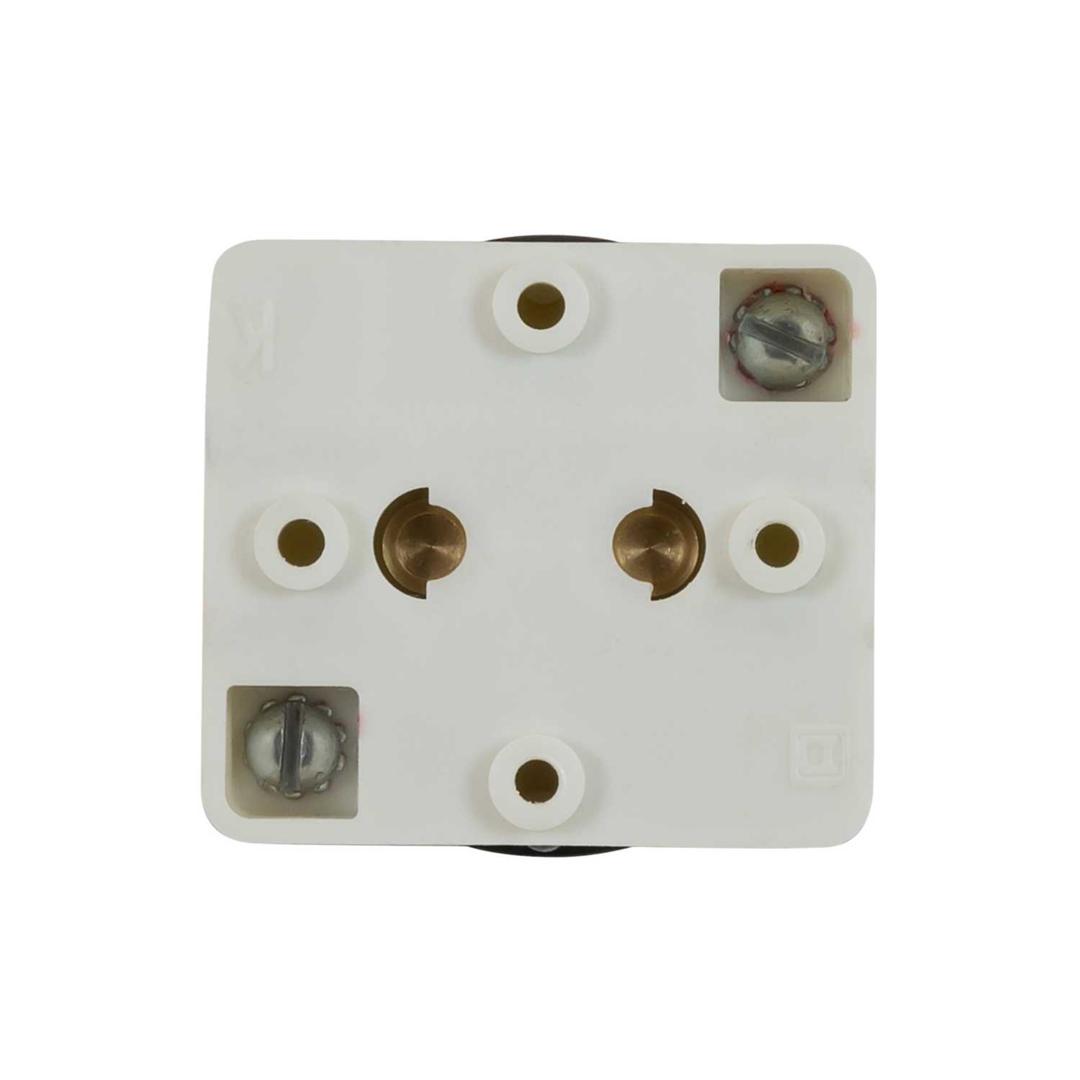

- Easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections
- Provides a smooth and precise control of your machine in a variety of industrial applications
- Impact resistant, dust resistant, water resistant and vibration resistant
- Suitable for operation in harsh environments
- Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents
- Colour
- Black/Chrome
- Cut Out
- 30mm
- Diameter
- 30mm
- Dimensions
- (Dia)30 mm
- Guarantee
- 18 Months
- Ip Rating
- IP66
- Joystick Directions
- 2
- Material
- Metal
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Notches Per Direction
- 1
- Number Of Positions
- 3
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony 9001K
- Standards
- IEC 60947-5-1 IEC 60947-5-4 IEC 60947-1
- Type
- Joystick
- Unspsc V18
- 39122227
- Unspsc V24
- 39122227
- Weight
- 0.247kg
