Schneider Harmony 9001K 1 Hole Aluminium Empty Control Station Grey
Part Number: 9001KY1
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

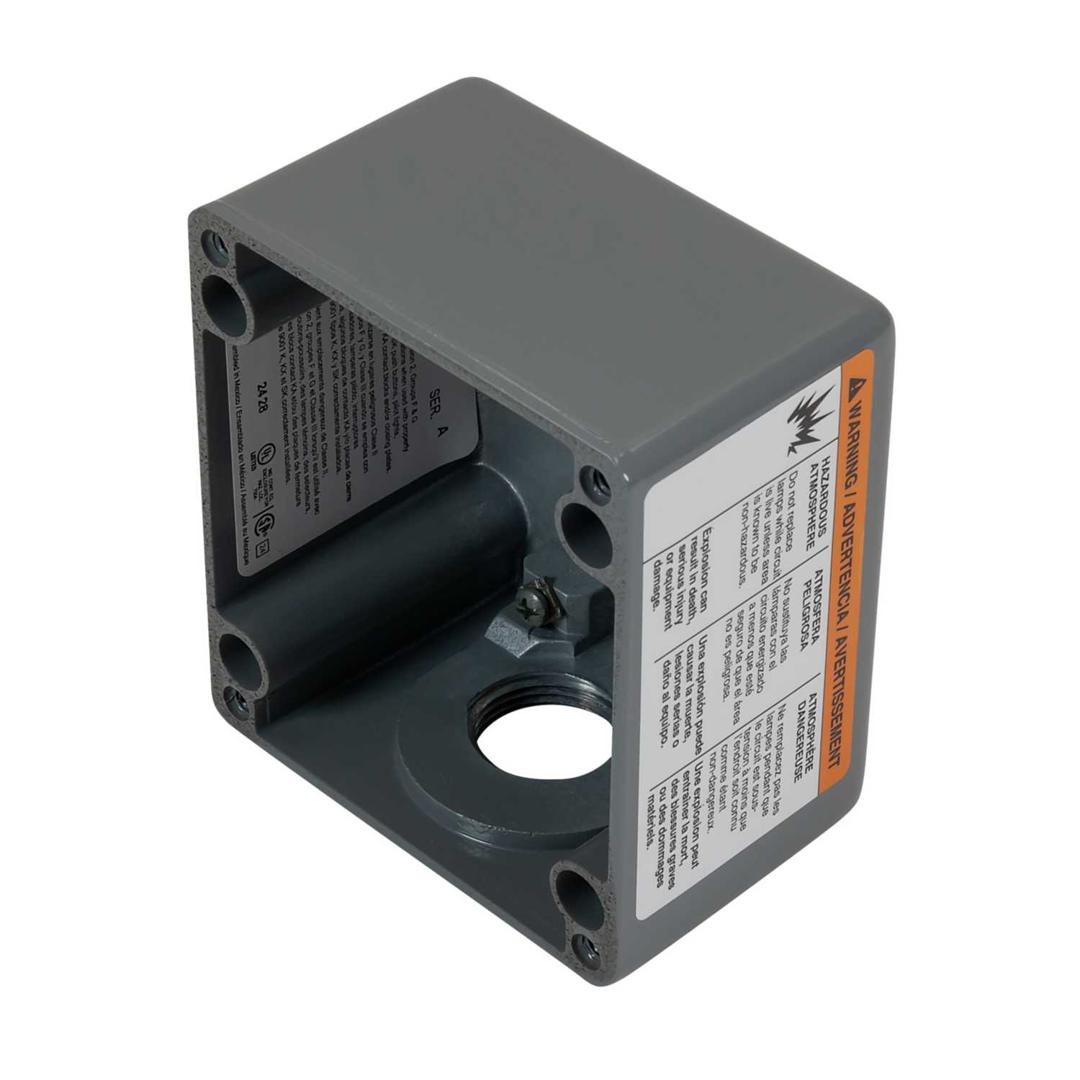

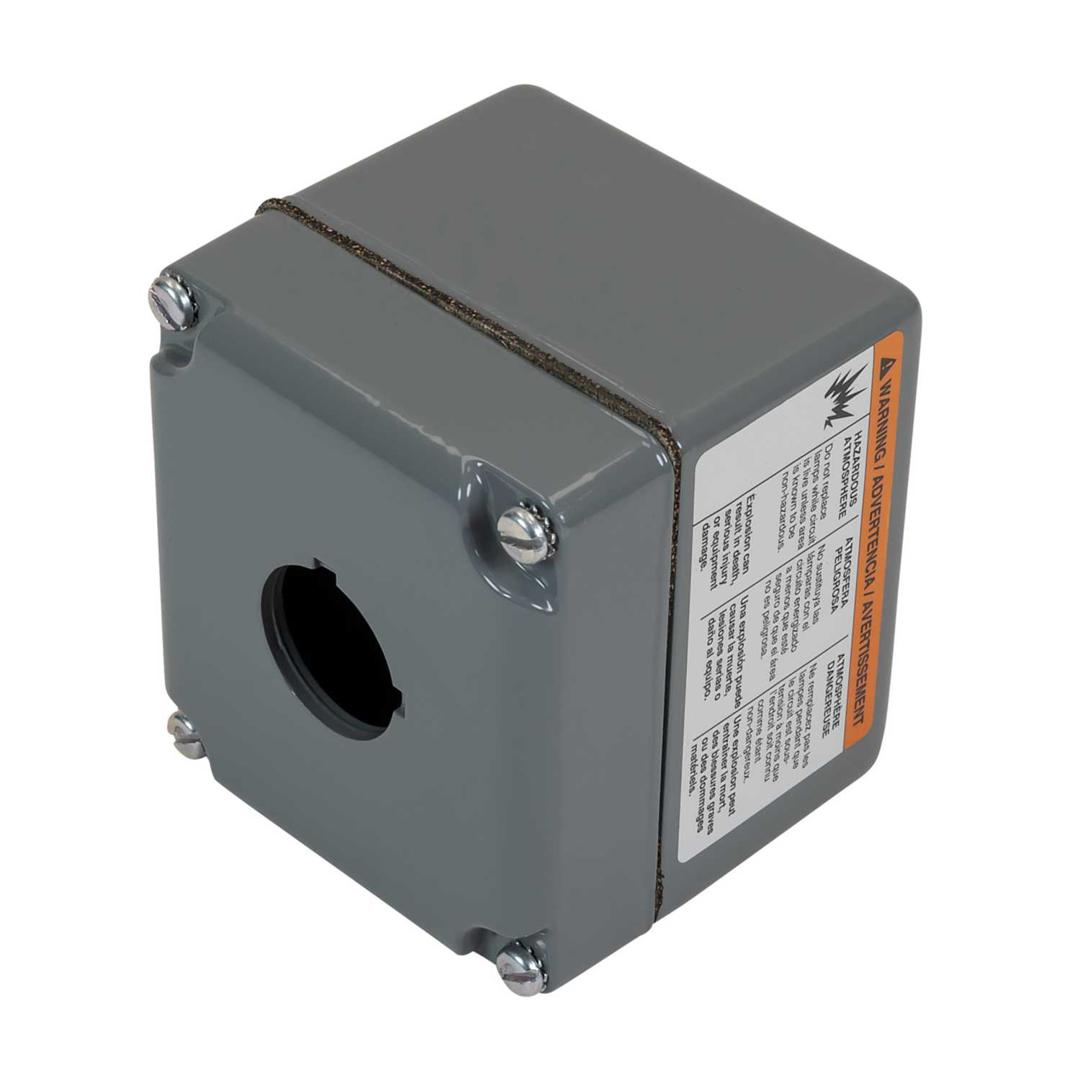

- Aluminium empty control station for use with Harmony 9001K or 9001SK series 30mm control and signalling units
- Grey metallic finish
- 1 entry tapped for 3/4'' cable gland
- IP66, IP67, IP69 and IP69k when appropriate glands and Harmony XB5 products are installed correctly
- Mechanical impact protection IK10
- Cable Entry
- 1 knock-out for cable entry 2 knock-outs for Pg 13 cable gland and ISO M20
- Colour
- Grey
- Cut Out
- 30mm
- Depth
- 100mm
- Dimensions
- (H)114.3 mm x (W)106.68 mm x (D)100 mm
- Guarantee
- 18 Months
- Height
- 114.3mm
- Ip Rating
- IP66
- Material
- Aluminium
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Number Of Ways
- 1
- Packaging Types
- Each
- Product Range
- Harmony 9001K
- Standards
- IEC 61140 NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 4 NEMA 6
- Storage Temperature Range
- -40 - 70°C
- Type
- Control Station
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 1.203kg
- Width
- 106.68mm
