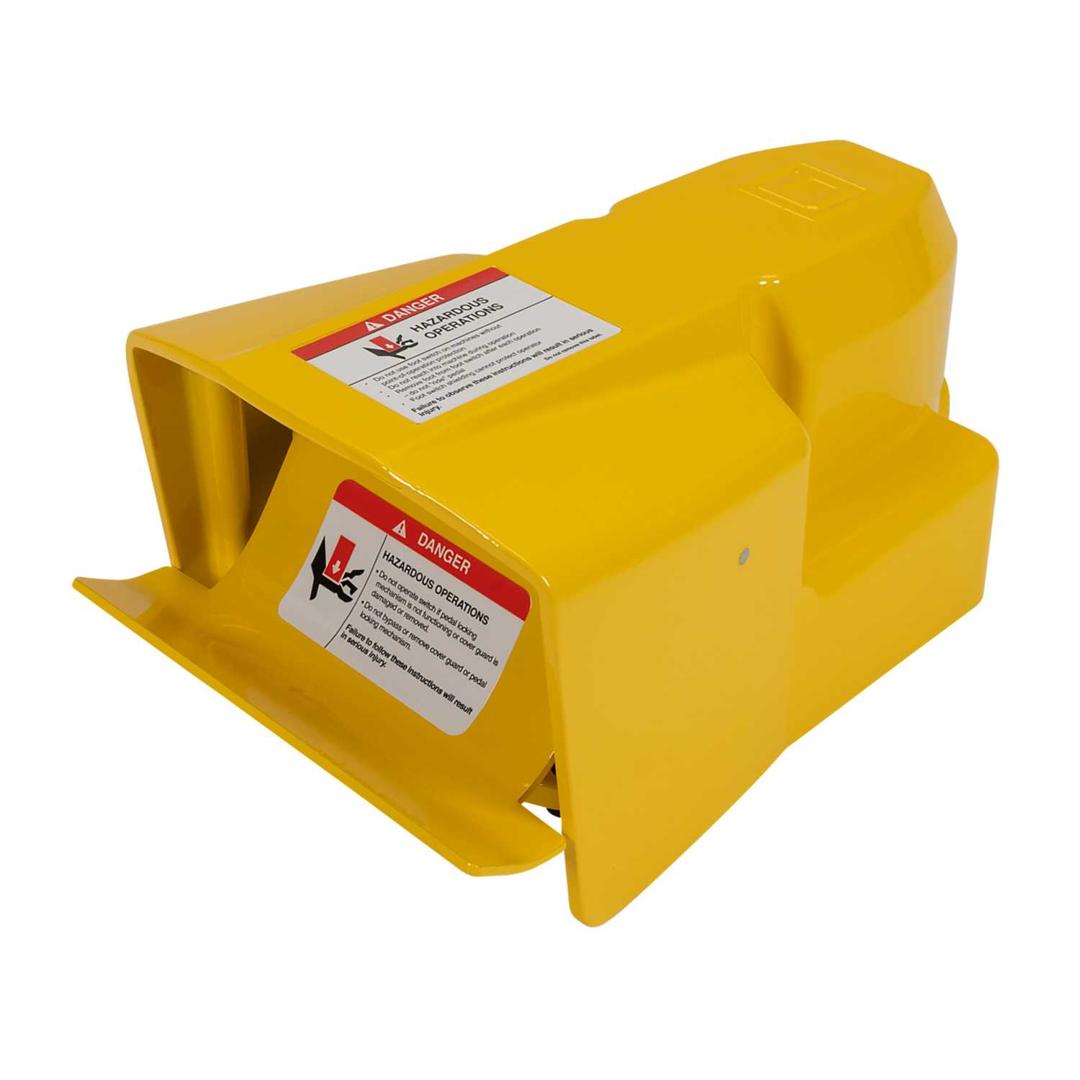

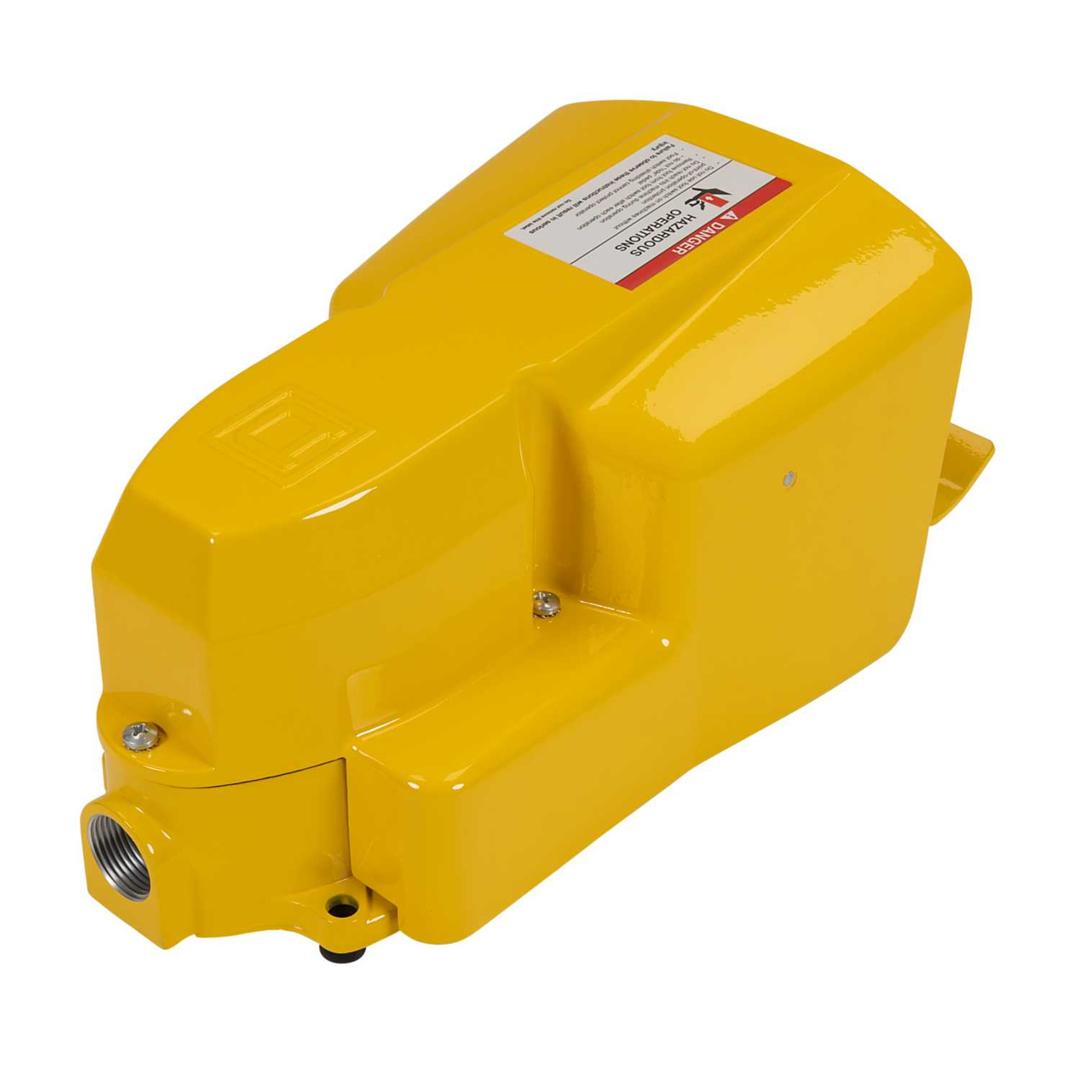

Schneider 5A 600V Foot Switch Two Stage SPDT Shrouded Oversized Yellow
Part Number: 9002AW117
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Industrial foot switches are heavy duty devices to be used to control many industrial processes while leaving the operator's hands free to perform other functions
- Foot switch has an oversized pedal shield, side shields and a safety door
- Single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC
- Snap switch contains two double break contact elements (1 NO and 1 NC) that must be used on circuits of same polarity
- Two step actuation
- Cable Entry
- 0.75 inch NPT Conduit Entrance
- Colour
- Yellow
- Contact Configuration
- 1 NO + 1 NC
- Current Rating
- 5A
- Depth
- 217mm
- Dimensions
- (H)159 mm x (W)163 mm x (D)217 mm
- Footguard
- Yes
- Guarantee
- 18 Months
- Height
- 159mm
- Material
- Plastic
- Number Of Pedals
- 1
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony
- Type
- Foot Switch
- Unspsc V18
- 39122222
- Unspsc V24
- 39122222
- Voltage Rating
- 600
- Weight
- 5.209kg
- Width
- 163mm
