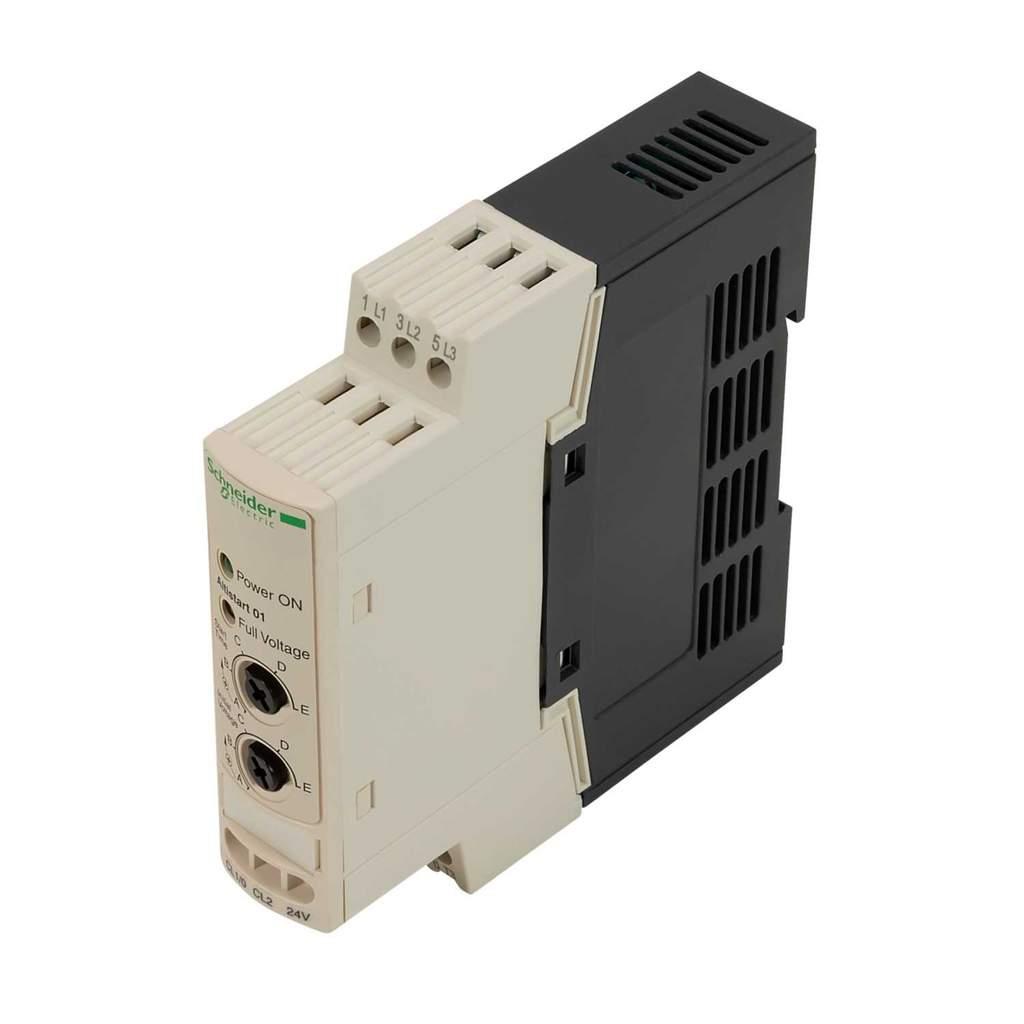

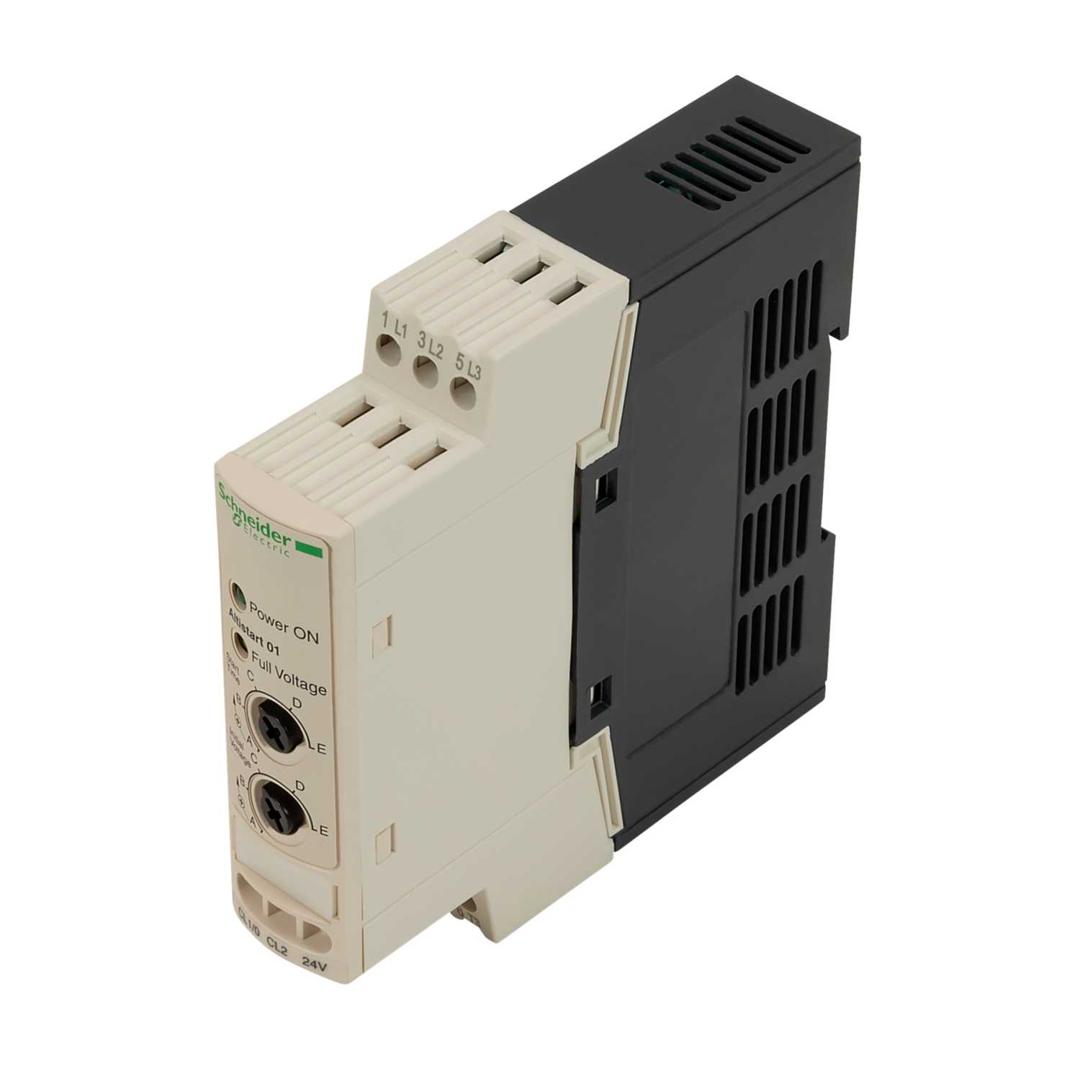

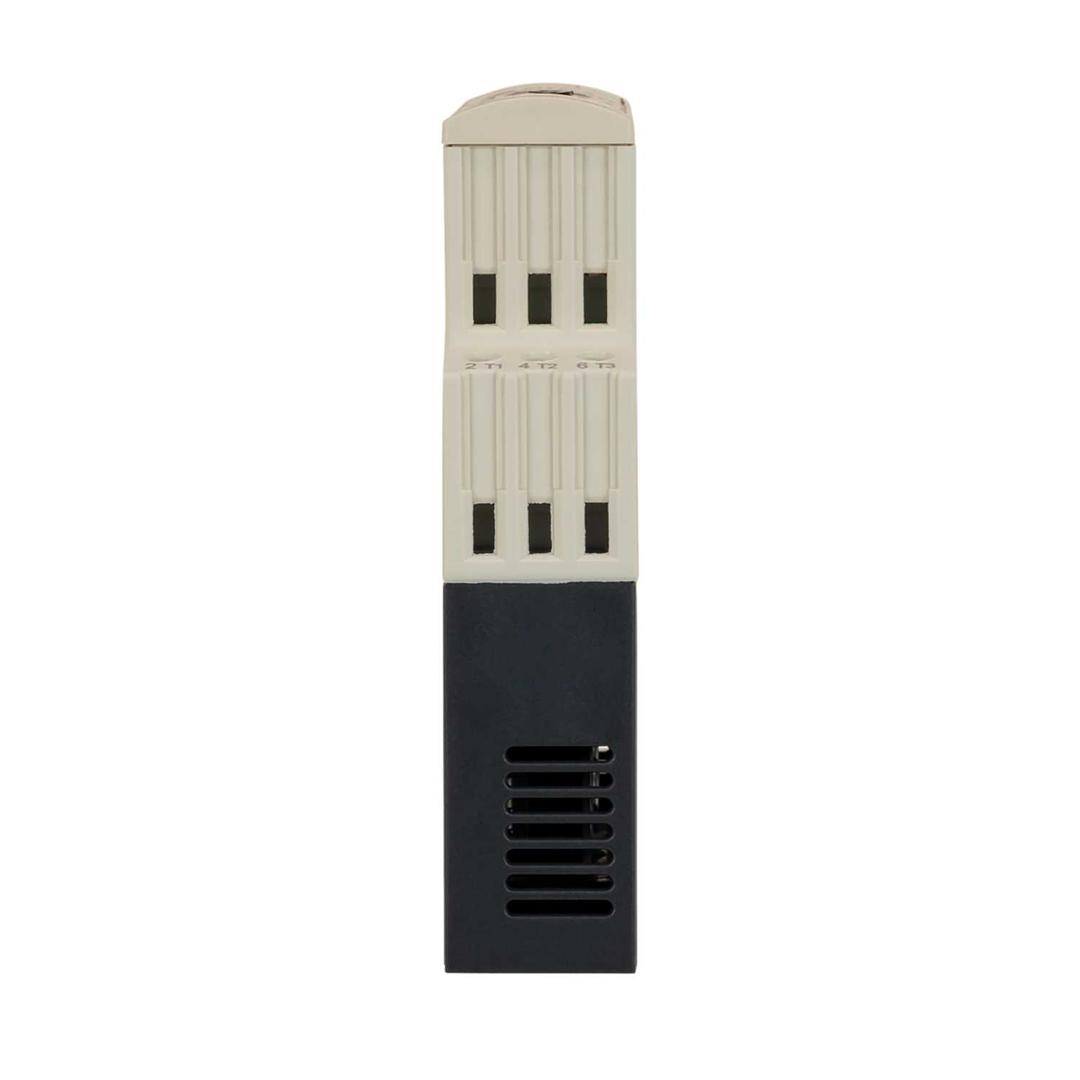

Schneider Altistart 01 3A 0.55-1.1kW 110V-480V AC Soft Starter for Asynchronous Motor
Part Number: ATS01N103FT
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- DIN rail mounted soft starter that can feed single or 3-phase asynchronous motors
- Designed to enable smooth start for simple machines
- Integrated bypass that reduces noise and decreases heat dissipation
- Adjustable starting time and initial voltage
- Power on and full voltage LED indicators
- Supply voltage 110V to 480V AC
- Control circuit voltage 24V AC/DC, 110V AC or 240V AC
- Current Rating
- 3A
- Depth
- 100mm
- Dimensions
- (H)100 mm x (W)23 mm x (D)100 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 100mm
- Ip Rating
- IP20
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- Altistart 01
- Standards
- EN/IEC 60947-4-2
- Type
- Soft Starter
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Weight
- 0.171kg
- Width
- 23mm
