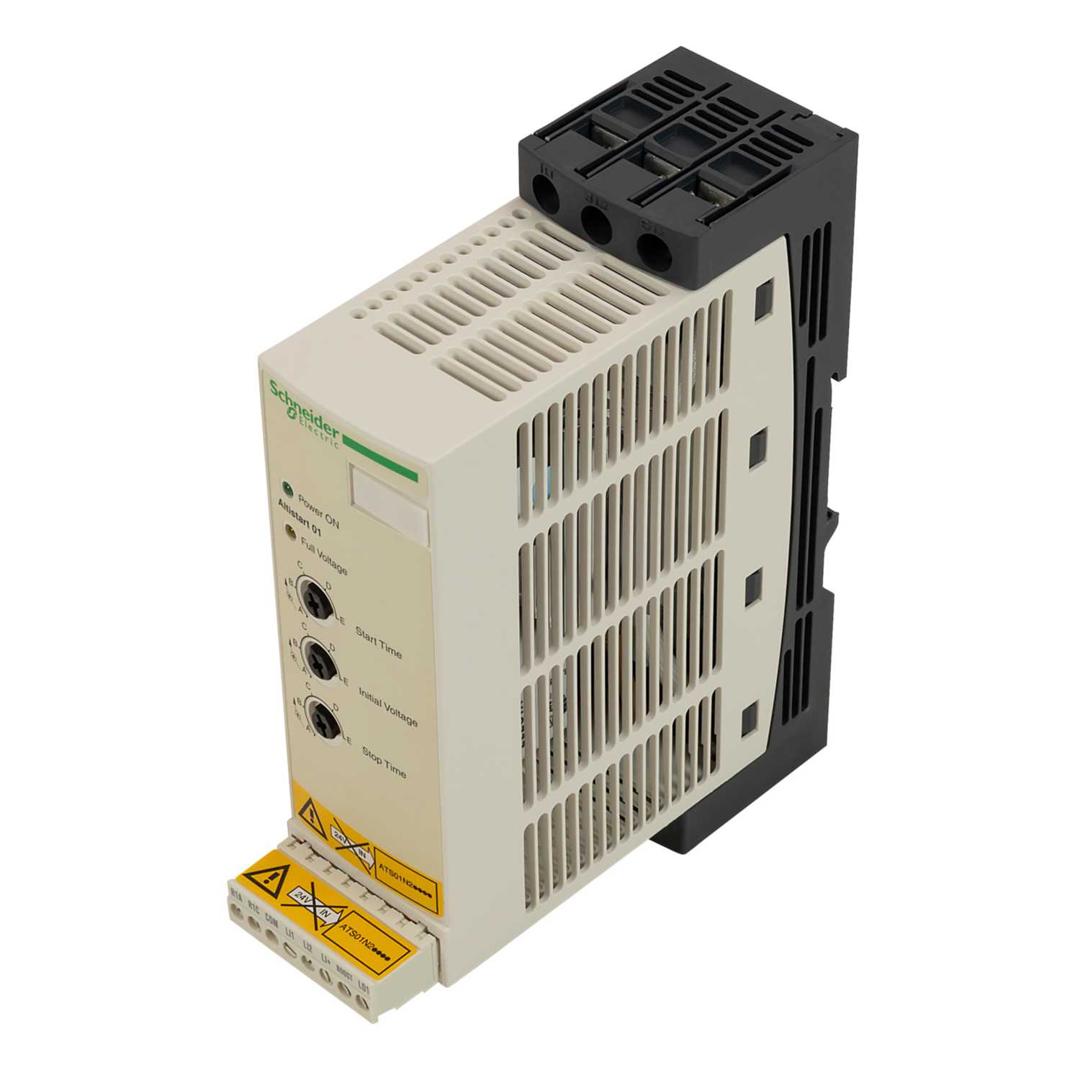

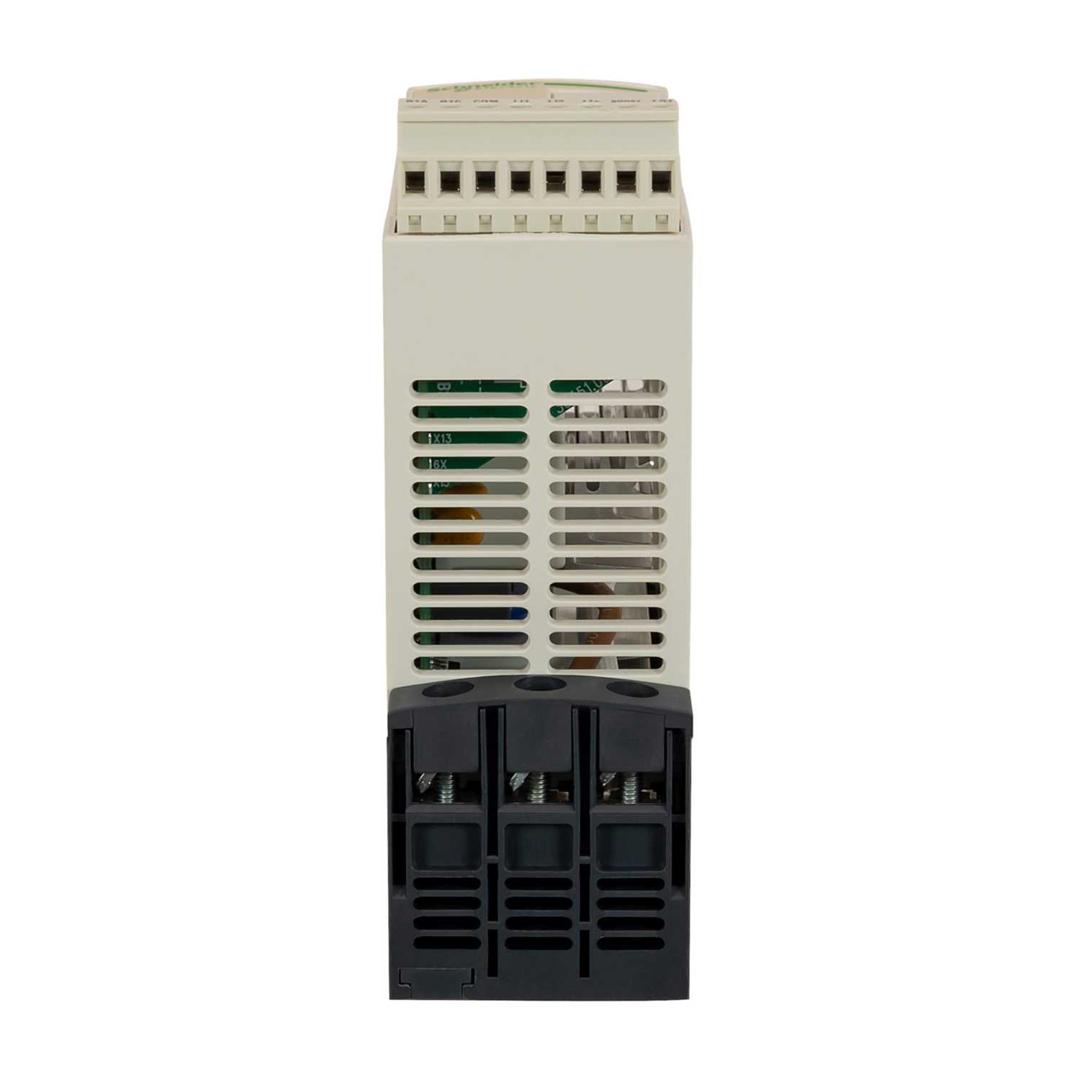

Schneider Altistart 01 32A 15kW 380V-415V AC Soft Starter for Asynchronous Motor
Part Number: ATS01N232QN
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- DIN rail mounted soft starter that can feed 3-phase asynchronous motors
- Designed to enable smooth start for simple machines
- Integrated bypass that reduces noise and decreases heat dissipation
- Adjustable starting time and initial voltage
- Power on and full voltage LED indicators
- Supply voltage 380V to 415V AC
- Control circuit voltage built into the starter
- Current Rating
- 32A
- Depth
- 131mm
- Dimensions
- (H)154 mm x (W)45 mm x (D)131 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 154mm
- Ip Rating
- IP20
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- Altistart 01
- Standards
- EN/IEC 60947-4-2
- Type
- Soft Starter
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Weight
- 0.652kg
- Width
- 45mm
