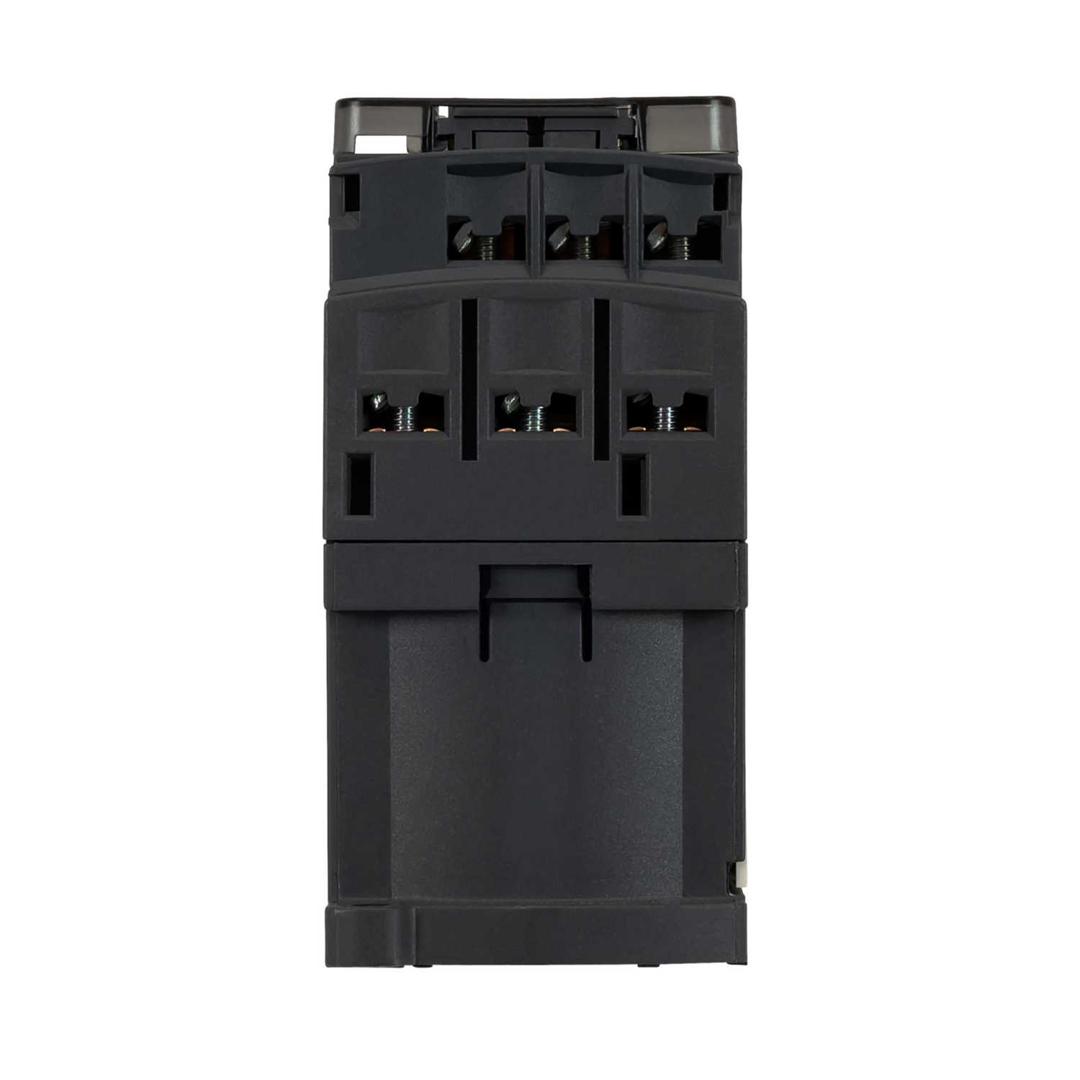

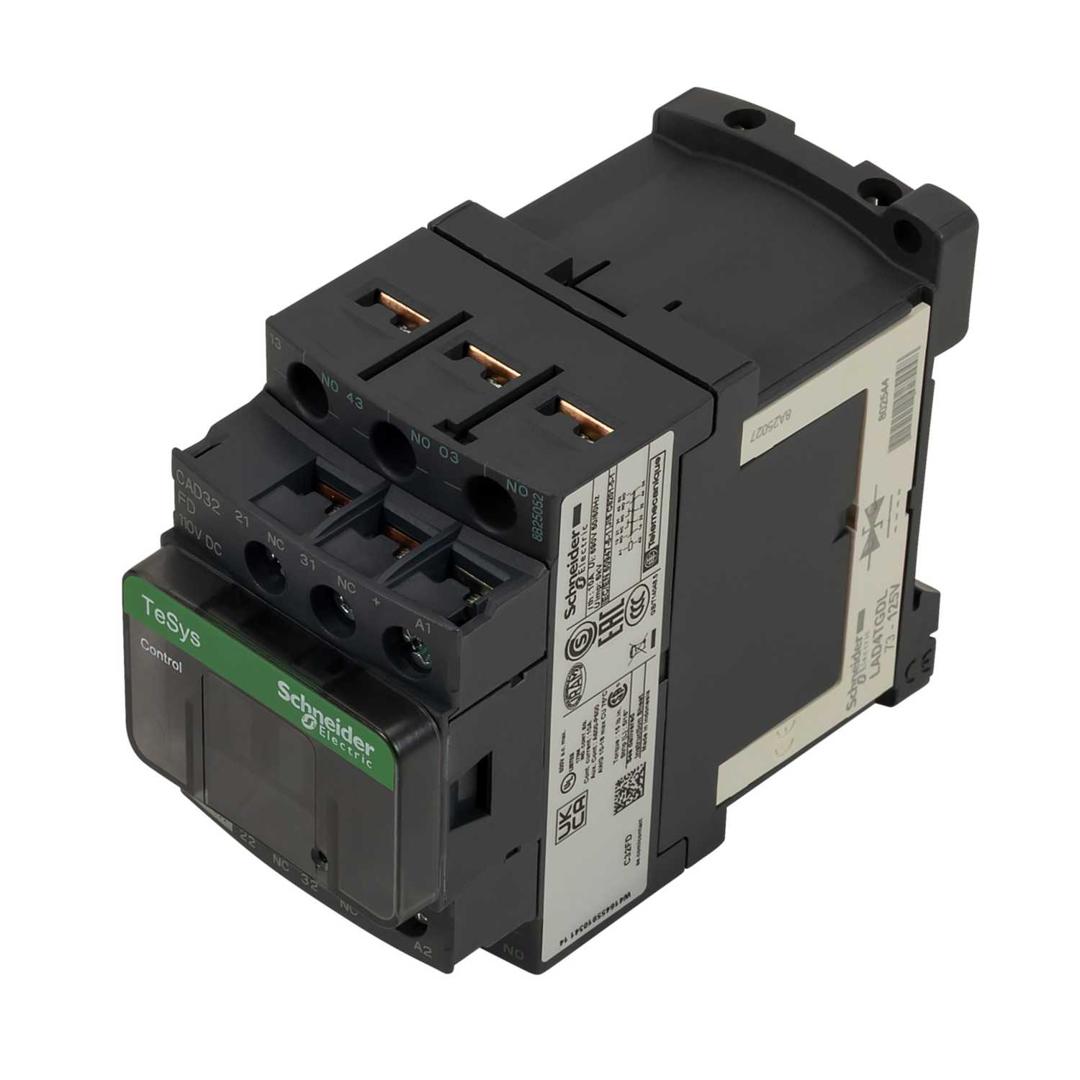

Schneider 10A 110V DC Standard Coil Control Relay 3NO + 2NC Contacts
Part Number: CAD32FD
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Relay for control of electromagnetic loads AC-15/DC-13
- 110V DC control circuit with no inrush consumption and equipped with a surge suppression device
- Screw clamp terminals
- DIN rail or plate mounted
- Coil Voltage
- 110V DC
- Colour
- Black
- Contact Configuration
- 3 NO + 2 NC
- Current Rating
- 10A
- Depth
- 93mm
- Dimensions
- (H)77 mm x (W)45 mm x (D)93 mm
- Guarantee
- 18 Months
- Height
- 77mm
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- EN/IEC 60947-5-1
- Type
- Control Relay
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Rating
- 690V
- Weight
- 0.513kg
- Width
- 45mm
