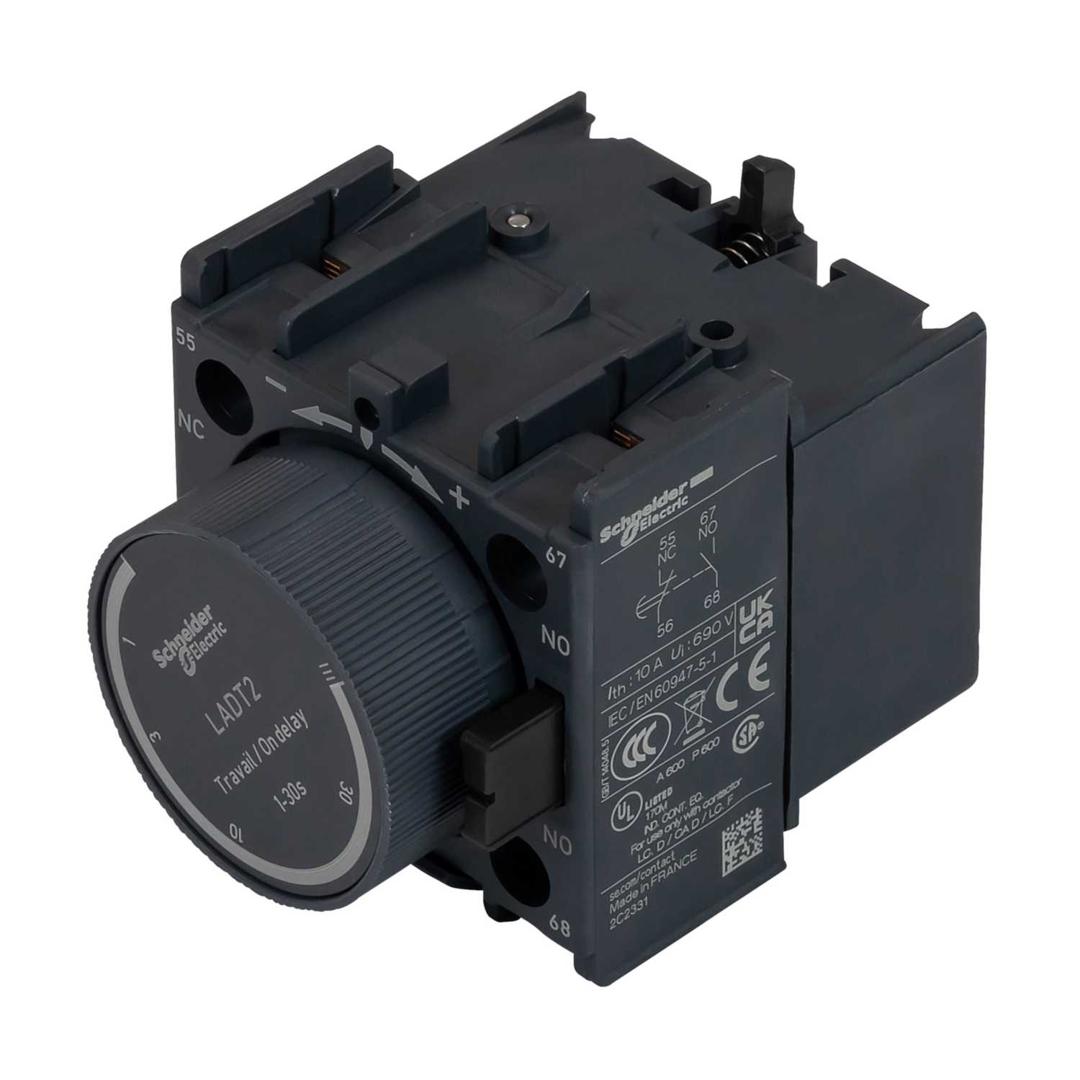

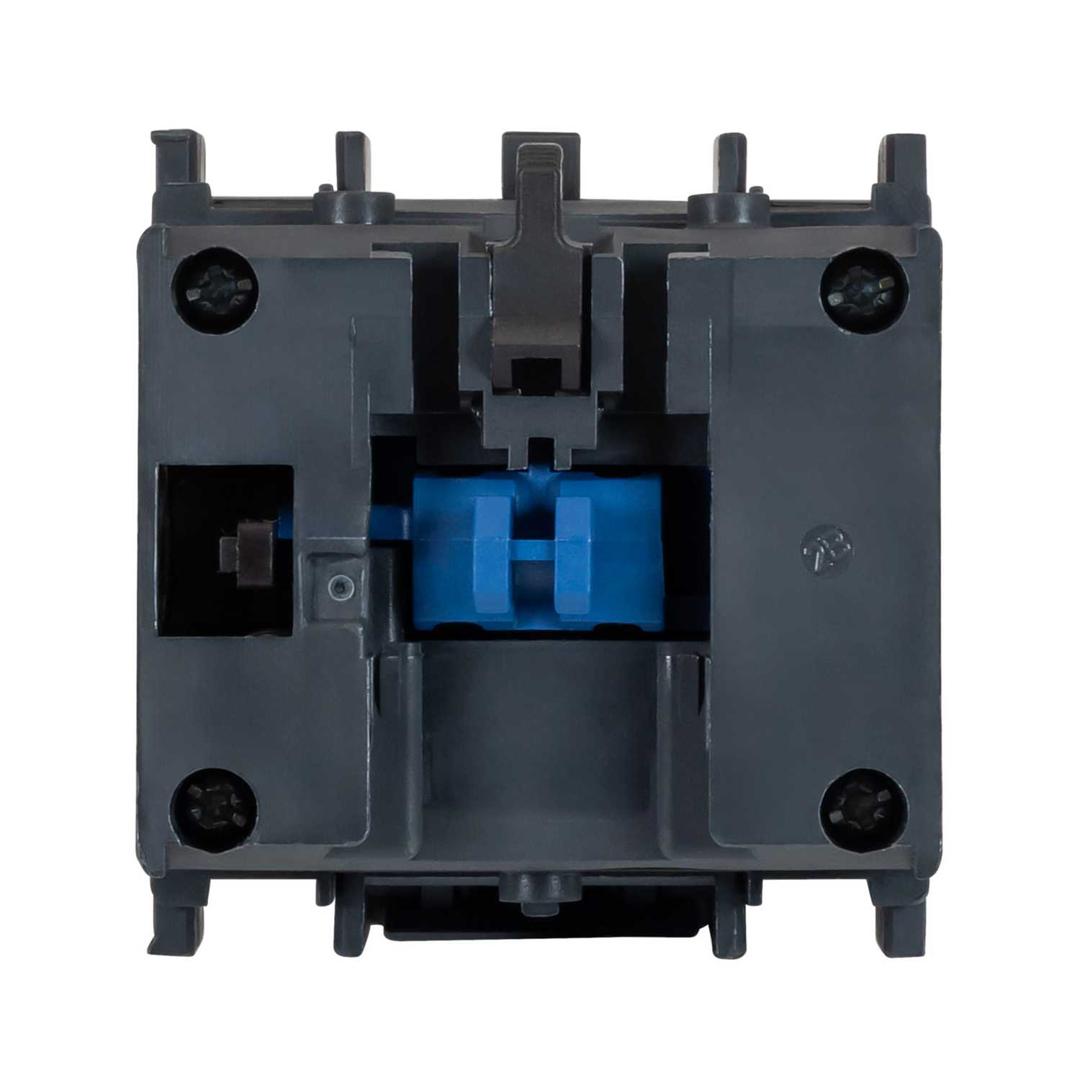

Schneider 1NO+1NC On Delay Timer Front Mount Auxiliary Contact Block TeSys D
Part Number: LADT2
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- On-delay auxiliary contact block, for contactors LC1D, LC1F and control relays
- On-delay setting range: 1s - 30s
- Provides 1NO+1NC contacts rated up to 10A/690V AC
- Connection by screw clamp terminals, clip-on front mounting
- Colour
- Dark Grey
- Contact Configuration
- 1 NO + 1 NC
- Depth
- 61mm
- Dimensions
- (H)48 mm x (W)44 mm x (D)61 mm
- Guarantee
- 18 Months
- Height
- 48mm
- Ip Rating
- IP20
- Material
- Plastic
- Mounting
- Front
- Operation Type
- On Delay
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- EN/IEC 60947-5-1 EN 50012 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ
- Suitable For
- LC1D, LC1F and Control Relays
- Timer Configuration
- 1 - 30 secs
- Type
- Auxiliary Contact Block
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Range
- 120-690 V AC
- Weight
- 0.07kg
- Width
- 44mm
