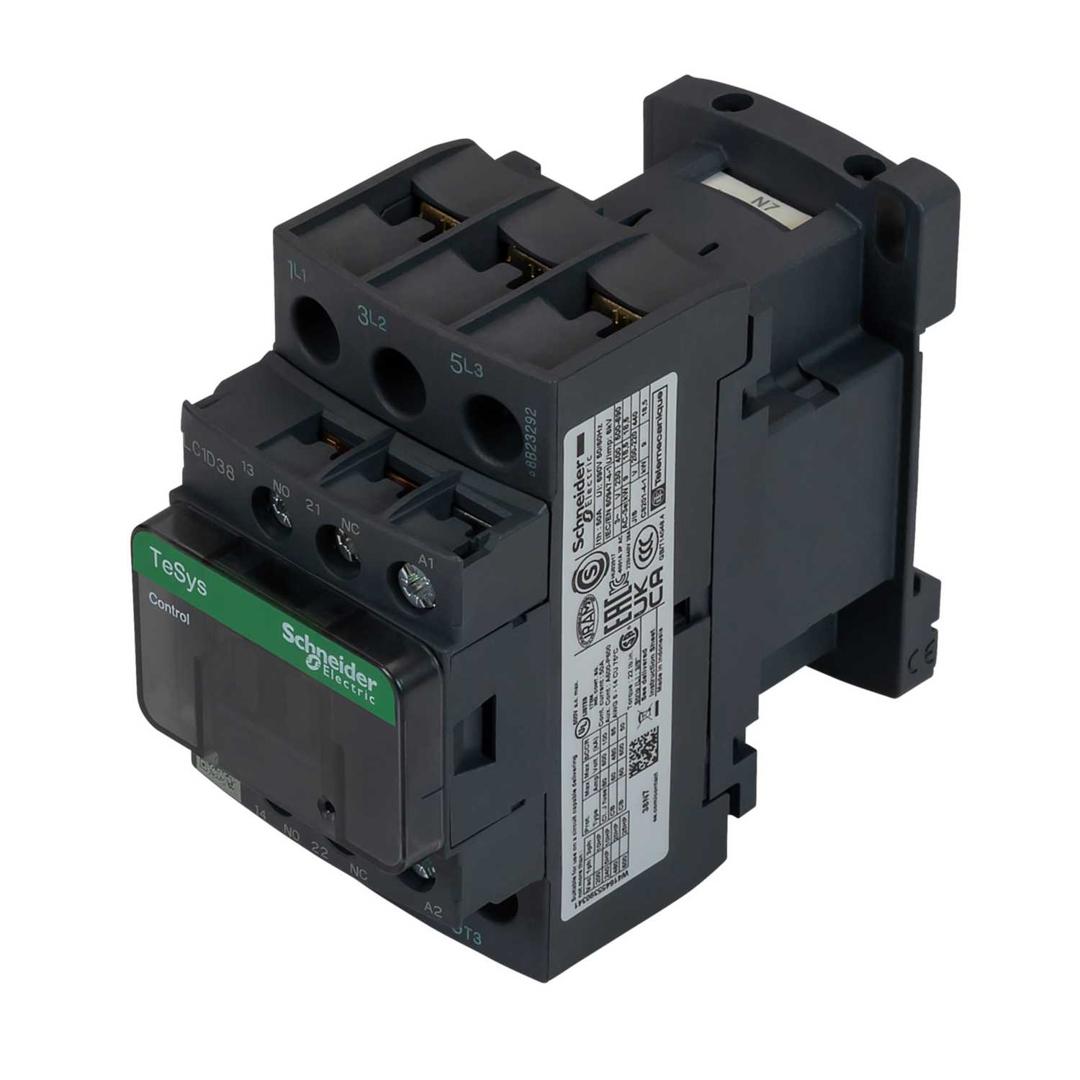

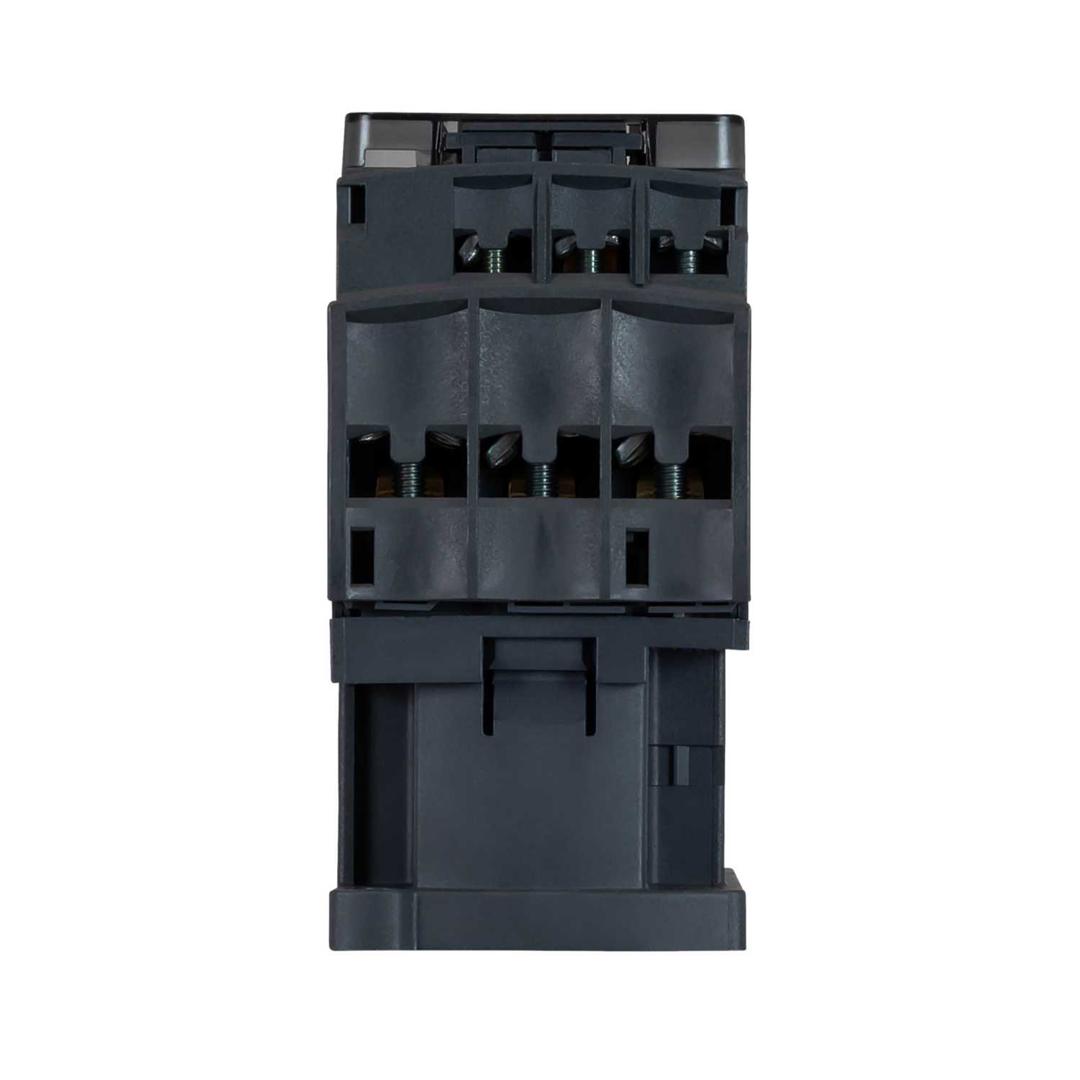

Schneider 38A AC3 3 Pole (3NO) 415V AC Coil TeSys D Contactor
Part Number: LC1D38N7
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For motor control applications up to 38A/440V AC-3/3e (18.5kW at 400V)
- Suitable for motors and resistive loads
- Easier to install and operate with multi-standard screws
- IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
- 415V AC coil with transient suppressor module
- 1NO 1NC built-in auxiliary contacts (NC mirror certified)
- DIN rail or panel mounting
- Auxiliary Contact
- 1 NO 1 NC
- Coil Voltage
- 415V AC
- Colour
- Dark Grey
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 50A
- Current Rating Ac3
- 38A
- Depth
- 92mm
- Dimensions
- (H)85 mm x (W)45 mm x (D)92 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 85mm
- IP Rating
- IP20
- Material
- Plastic
- Mounting
- Panel or DIN Rail
- Number Of Poles
- 3 Pole
- Online Search Priority
- 1
- Packaging Types
- Each
- Product Range
- TeSys Deca
- Standards
- CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 IEC 60335-1
- Type
- Contactor
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 690V AC 300V DC
- Weight
- 0.427kg
- Width
- 45mm
