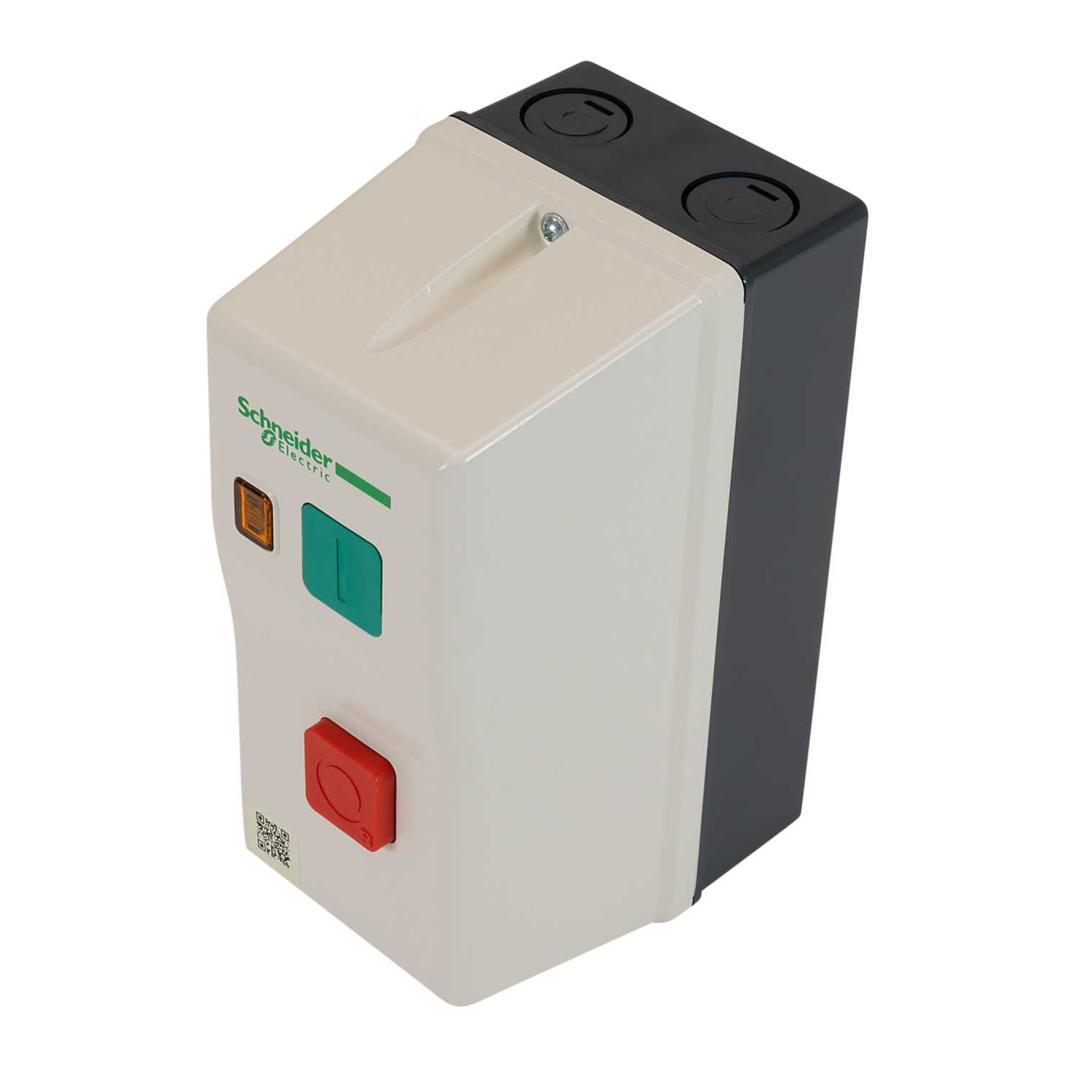

Schneider 7.5kW 415V AC Coil 12-16A Overload TeSys Enclosed DOL Starter
Part Number: LE1M35N722
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

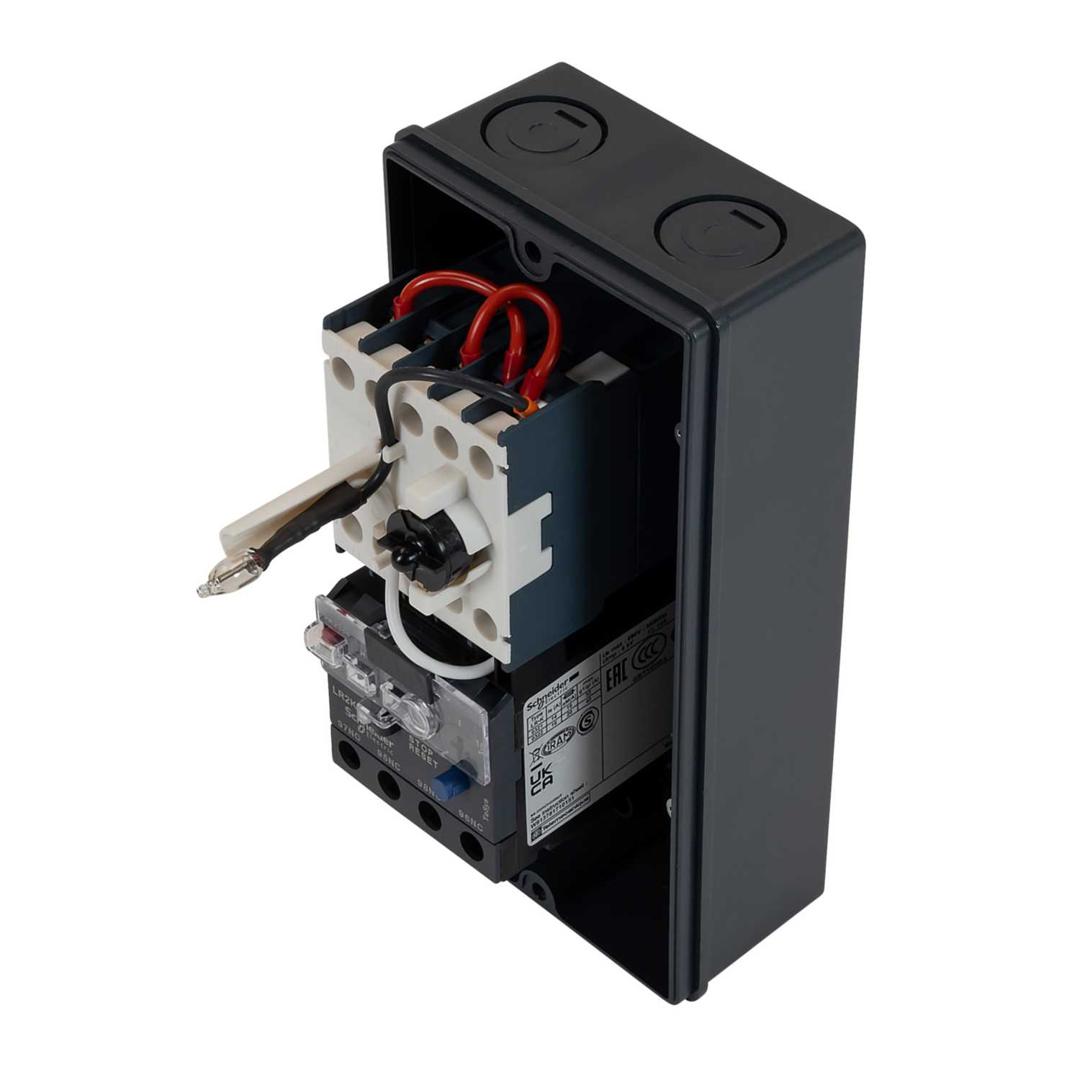

- TeSys enclosed direct-on-line starter with 3 pole contactor for non-reversing motor control applications up to 7.5kW@415V AC-3
- Motor protection against overload: manual reset with the red push button or remotely
- Thermal overload protection, range adjustable from 12 to 16A
- Yellow operating indicator
- Red and green pushbuttons
- 415V AC coil for control circuit
- Self-extinguishing ABS material
- Multi size knock-outs for cable entry both top and bottom
- IP65
- IK07
- To be combined with an external short circuit protection component, to reach a type 1 or type 2 coordination
- Button Configuration
- Start / Stop Reset
- Coil Voltage
- 415V AC
- Colour
- Grey
- Depth
- 108mm
- Dimensions
- (H)160 mm x (W)78 mm x (D)108 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 160mm
- Ip Rating
- IP65
- K W Rating
- 7.5kW
- Material
- ABS
- Mounting
- Surface
- Number Of Poles
- 3 Pole
- Overload Rating
- 12 - 16A
- Packaging Types
- Each
- Product Range
- TeSys
- Standards
- IEC 60947-4-1 IEC 60529
- Type
- DOL Starter
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 415V AC
- Weight
- 0.56kg
- Width
- 78mm
