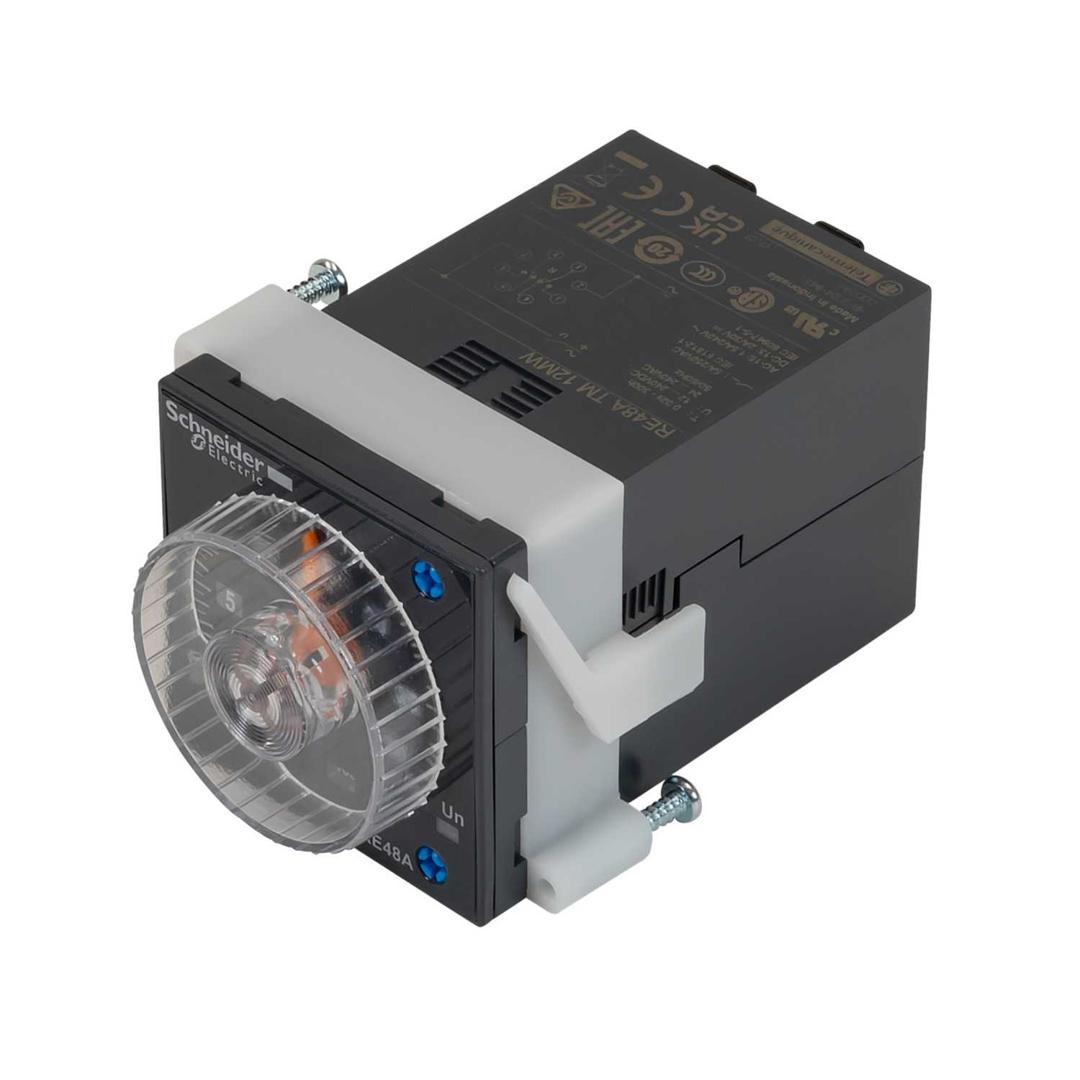

Schneider Harmony 5.0A 2CO 8 Pin Plug-in On Delay Timer Relay 24-240V AC/DC
Part Number: RE48ATM12MW
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- RE48 timing relay can be set between 0.02 seconds and 300 hours
- Output rating of 5A
- 48mm wide, supply voltage 24V-240V AC/DC
- Sealable cover, simple and precise settings with rotary trimmers
- Status display with 2 LEDs
- Single function timer for a simple integration in hard-wired logic schematics
- Colour
- Black/Clear
- Contact Configuration
- 2 CO
- Current Rating
- 5A
- Dimensions
- (L)96.8 mm x (H)48 mm x (W)48 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 48mm
- Length
- 96.8mm
- Material
- Plastic
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- -20°C
- Mounting
- Plug-in

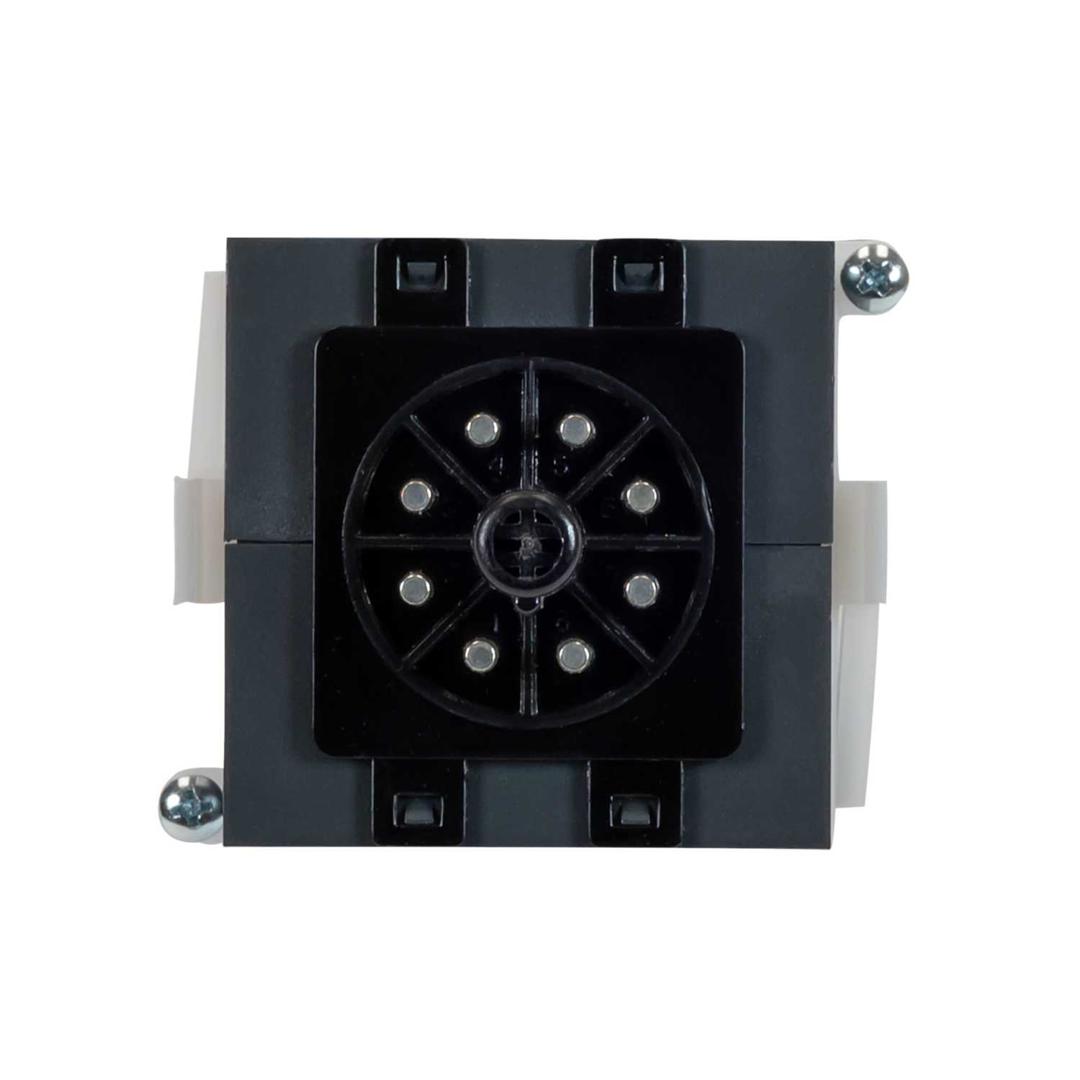

- Number Of Pins
- 8
- Operation Type
- On Delay
- Packaging Types
- Each
- Product Range
- Harmony RE48
- Standards
- IEC 61812-1 IEC 60669-2-3
- Timer Range
- 0.02 secs - 300
- Type
- Timer Relay
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Range
- 24-240V AC/DC
- Weight
- 0.119kg
- Width
- 48mm
