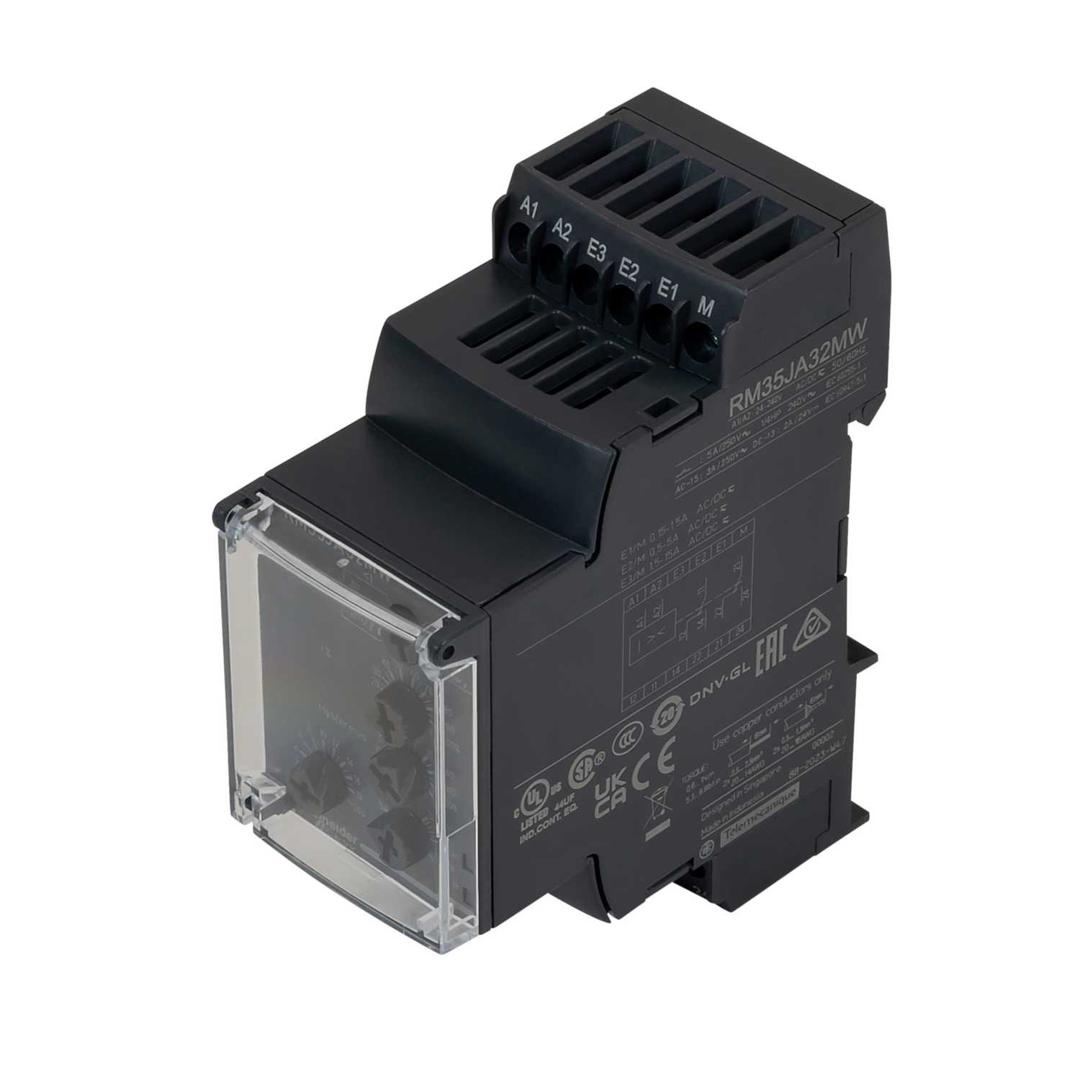

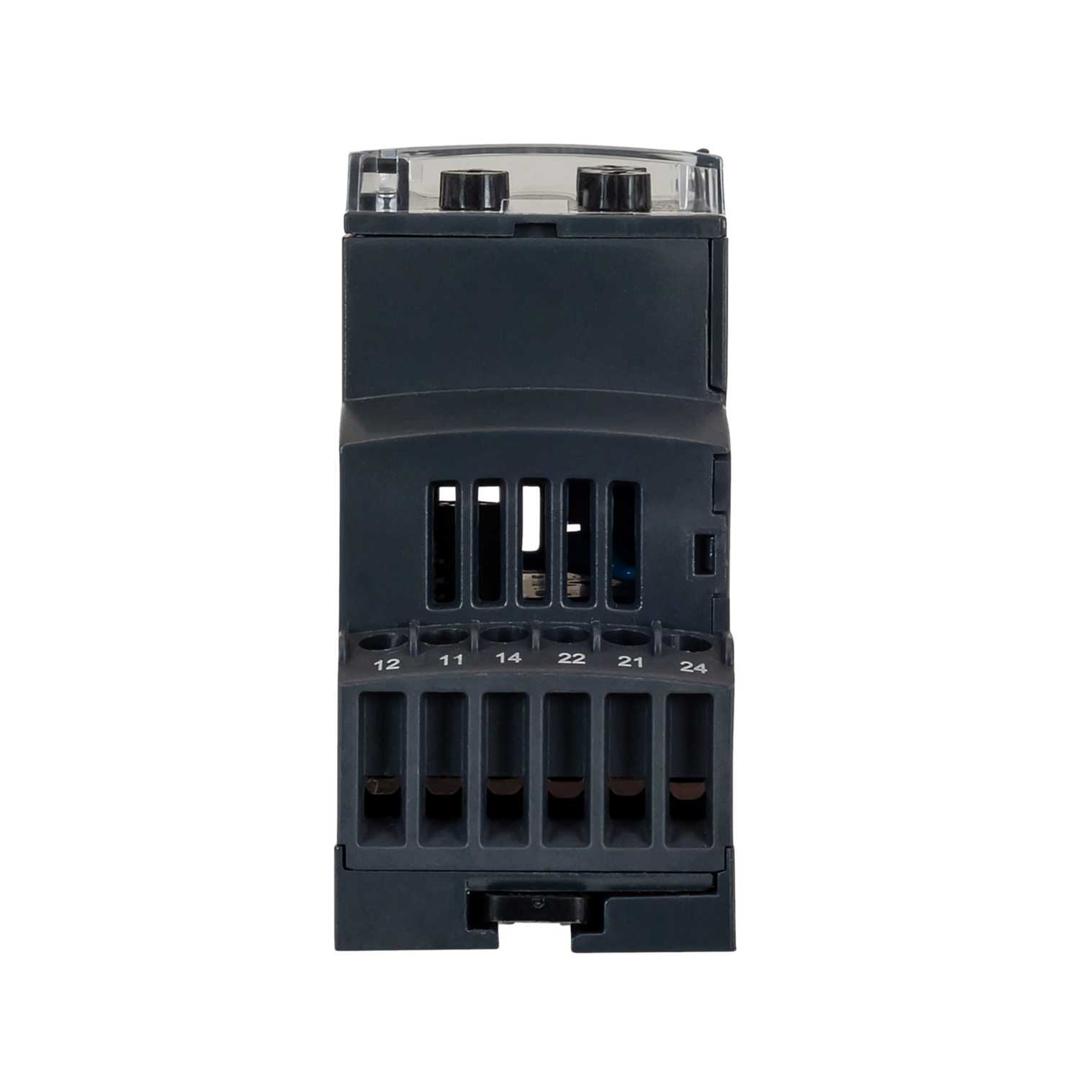

Schneider Harmony 2CO 24-240V AC/DC 5A 1 Phase Current Control Relay
Part Number: RM35JA32MW
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Overcurrent or undercurrent detection
- Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault Adjustable 1...20 s, 0 + 10 % Ti- inhibition time delay upon startup
- 1,250VA switching capacity
- DIN rail mounted
- IEC 60255-6
- Changeover
- Yes
- Colour
- Dark Grey
- Contact Configuration
- 2 CO
- Current Rating
- 5A
- Depth
- 72mm
- Dimensions
- (H)90 mm x (W)35 mm x (D)72 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 90mm
- Ip Rating
- IP20
- Material
- Self-Extinguishing Plastic
- Mounting
- Din Rail
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- Harmony
- Standards
- IEC 60255-6
- Type
- Control Relay
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Range
- 24-240V AC/DC
- Voltage Rating
- 240
- Weight
- 0.144kg
- Width
- 35mm
