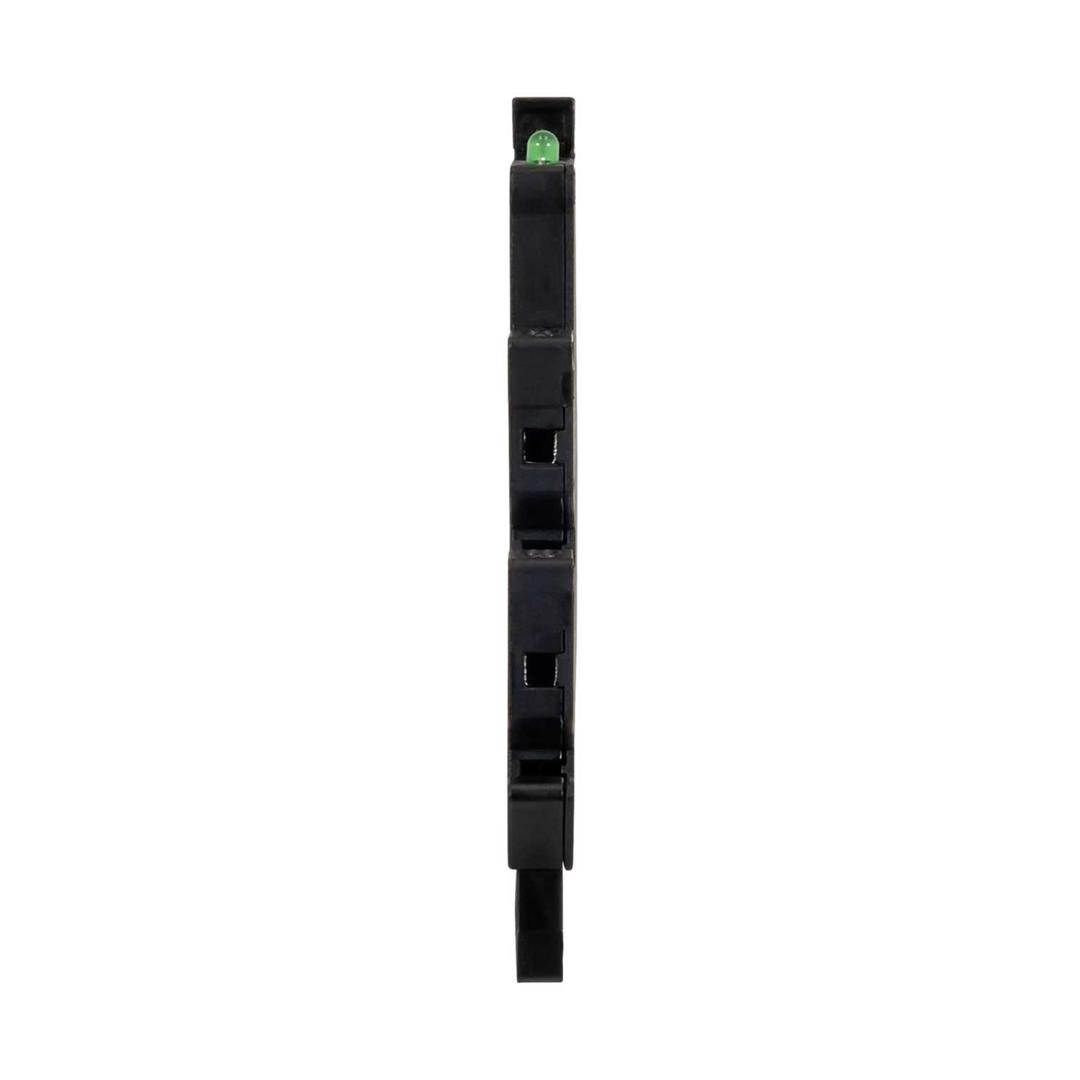

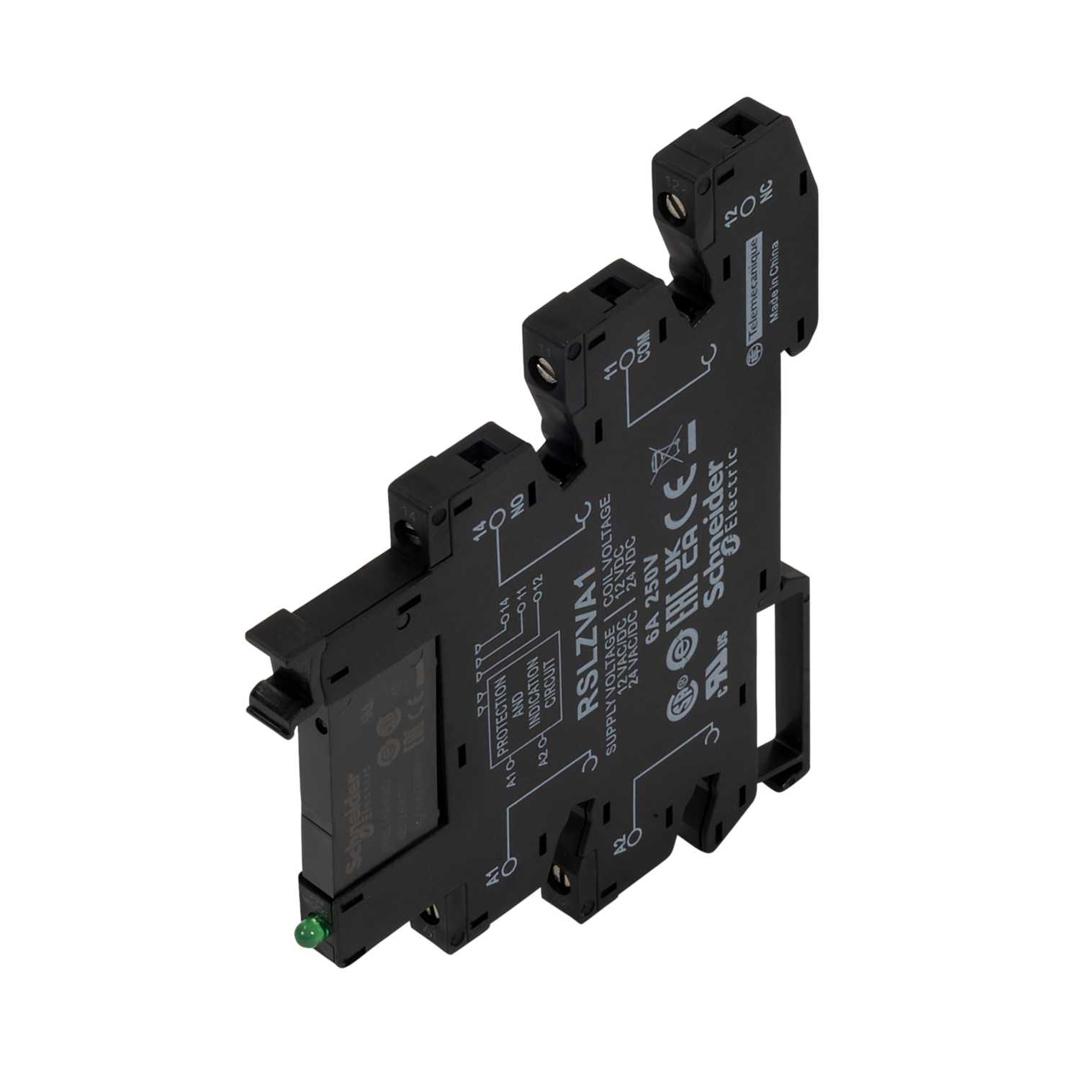

Schneider Harmony 6.0A 1CO Slim Electromechanical Relay with LED 24VA AC/DC
Part Number: RSL1PVBU
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A
- It has large choice of number of contacts for high rated current use
- Also offers LED indicator and protection circuit
- One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere
- Compatible with high breaking capacity or low-level current application requirements
- Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)
- Status display with LED, clearly signal both in the day and night
- Changeover
- Yes
- Colour
- Black
- Current Rating
- 6.0A
- Depth
- 95mm
- Dimensions
- (H)78.6 mm x (W)6.2 mm x (D)95 mm
- Guarantee
- 18 Months
- Height
- 78.6mm
- Indication Lamp
- Yes
- Material
- Plastic
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -40°C
- Mounting
- DIN
- Packaging Types
- Each
- Product Range
- Harmony
- Standards
- IEC 61810-1
- Terminal Type
- Screw
- Type
- Relay
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Range
- 24V AC DC
- Weight
- 0.029kg
- Width
- 6.2mm
