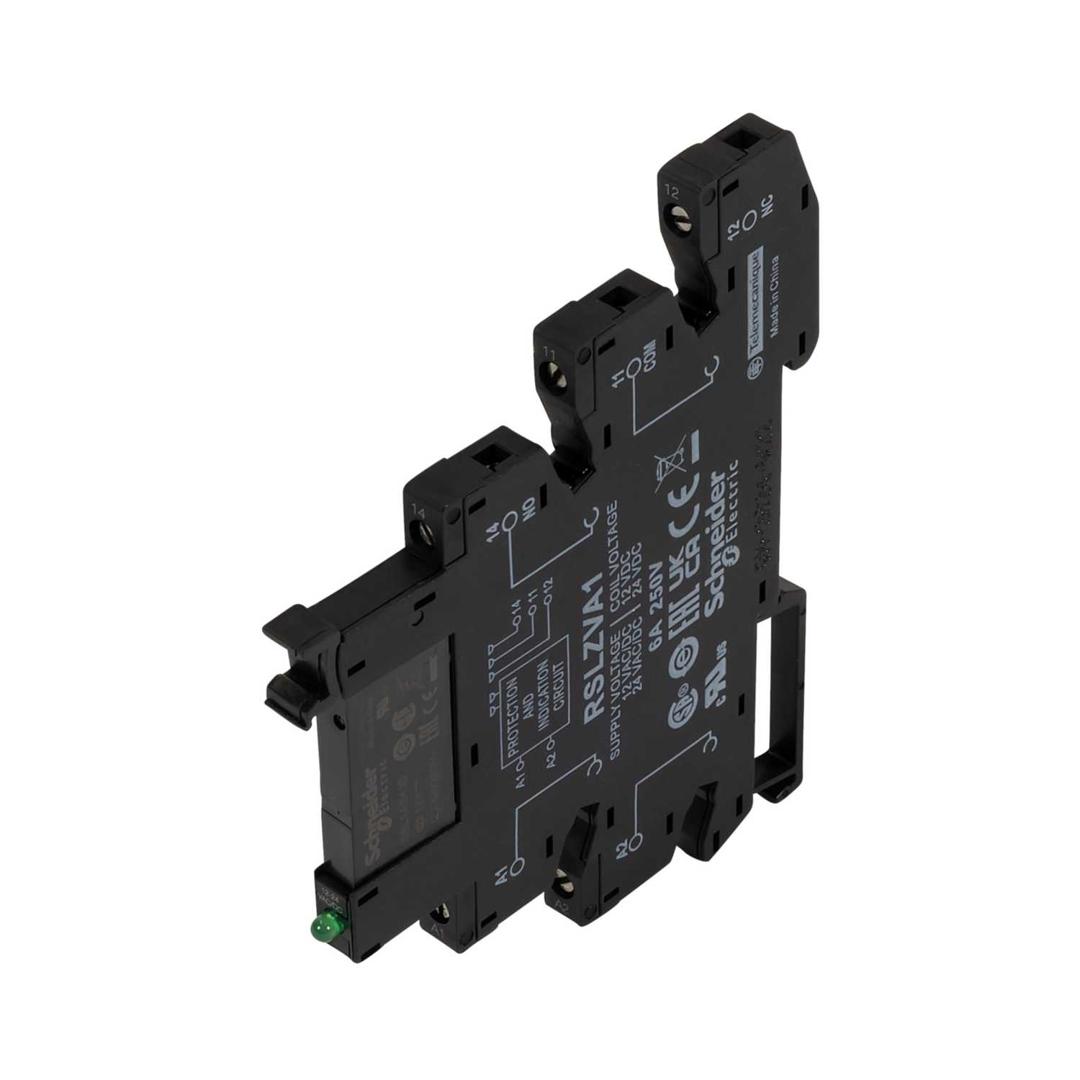

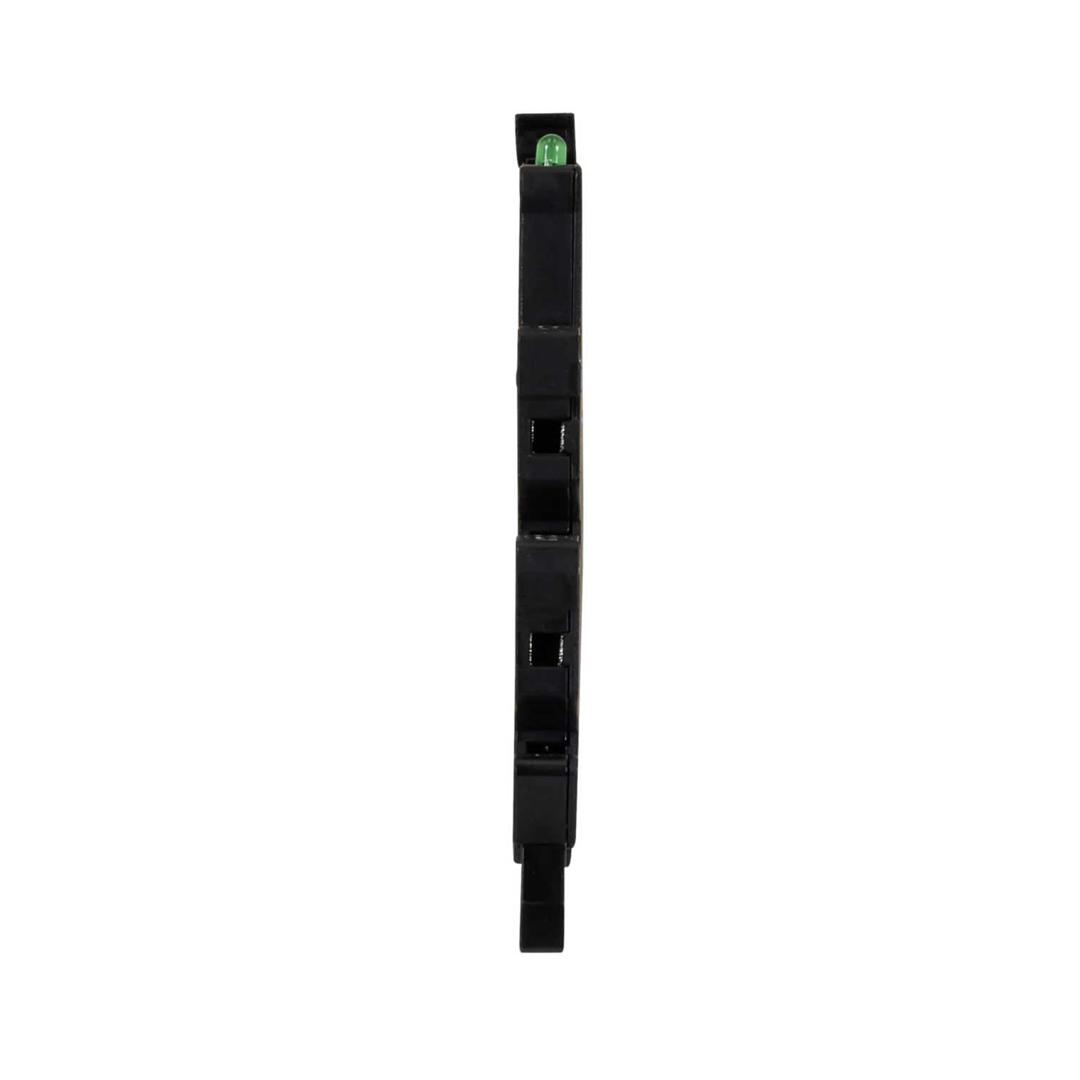

Schneider Harmony 12-24V AC/DC Slim Relay Socket Base with LED and Circuit Protection
Part Number: RSLZVA1
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC
- It has large choice of number of contacts for high rated current use
- It also offers LED indicator and protection circuit
- One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere
- Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)
- Status display with LED, clearly signal both in the day and night
- Colour
- Black
- Depth
- 78.7mm
- Dimensions
- (H)96 mm x (W)6.5 mm x (D)78.7 mm
- Guarantee
- 18 Months
- Height
- 96mm
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- DIN
- Packaging Types
- Each
- Product Range
- Harmony Relay Base
- Standards
- IEC 61984
- Suitable For
- RSL1 Relay's
- Terminal Type
- Screw
- Type
- Harmony Relay Base
- Unspsc V18
- 39122335
- Unspsc V24
- 39122335
- Voltage Range
- 12-24V AC DC
- Weight
- 0.029kg
- Width
- 6.5mm
