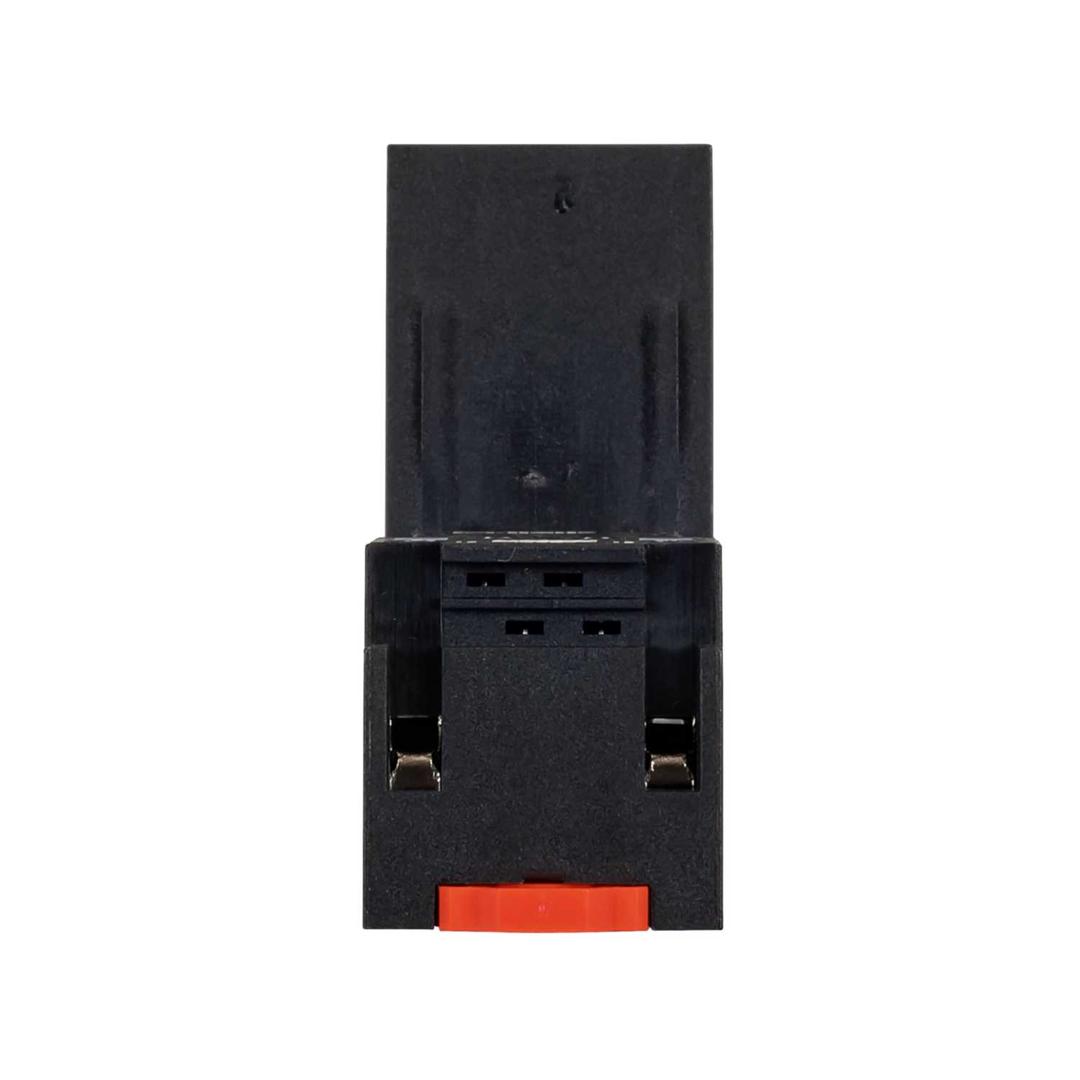

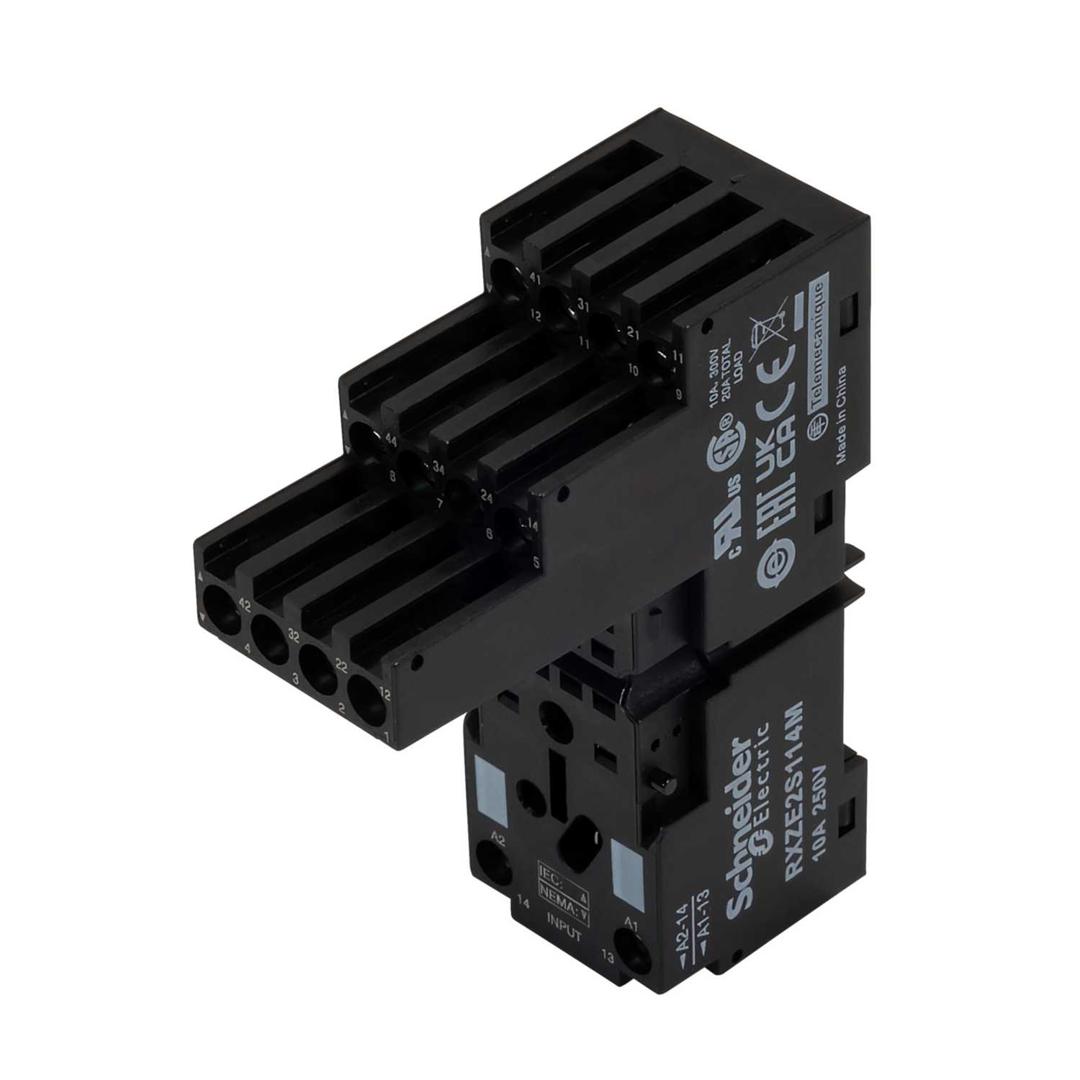

Schneider Harmony RXM2/RXM4 Relay Socket Base with Separate Contact and Screw Connectors
Part Number: RXZE2S114M
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- RXZ plug-in relay socket has a coil control voltage of 250V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 10A
- It has large choice of contacts for high rated current use
- Compatible with plug in control relay
- Easy installation and connect to the relay from its socket
- Suitable for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)
- Colour
- Black
- Current Rating
- 10A
- Depth
- 61mm
- Dimensions
- (H)79 mm x (W)27 mm x (D)61 mm
- Guarantee
- 18 Months
- Height
- 79mm
- Material
- Plastic
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -40°C
- Mounting
- DIN
- Number Of Pins
- 14
- Packaging Types
- Each
- Product Range
- Harmony
- Standards
- IEC 61984
- Suitable For
- RXM Relays
- Terminal Type
- Screw
- Type
- Relay Base
- Unspsc V18
- 39122335
- Unspsc V24
- 39122335
- Voltage Range
- 250 V
- Weight
- 0.065kg
- Width
- 27mm
