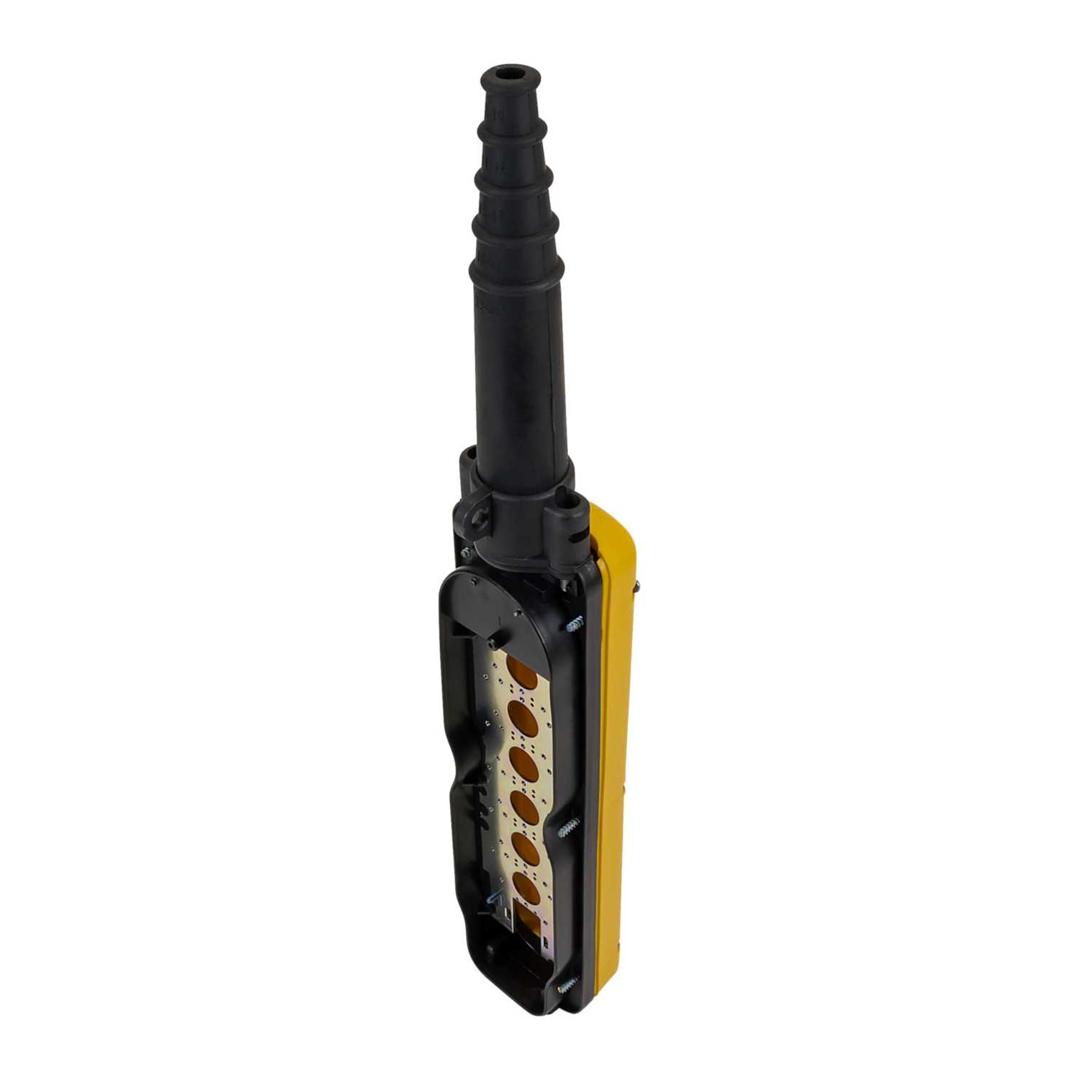

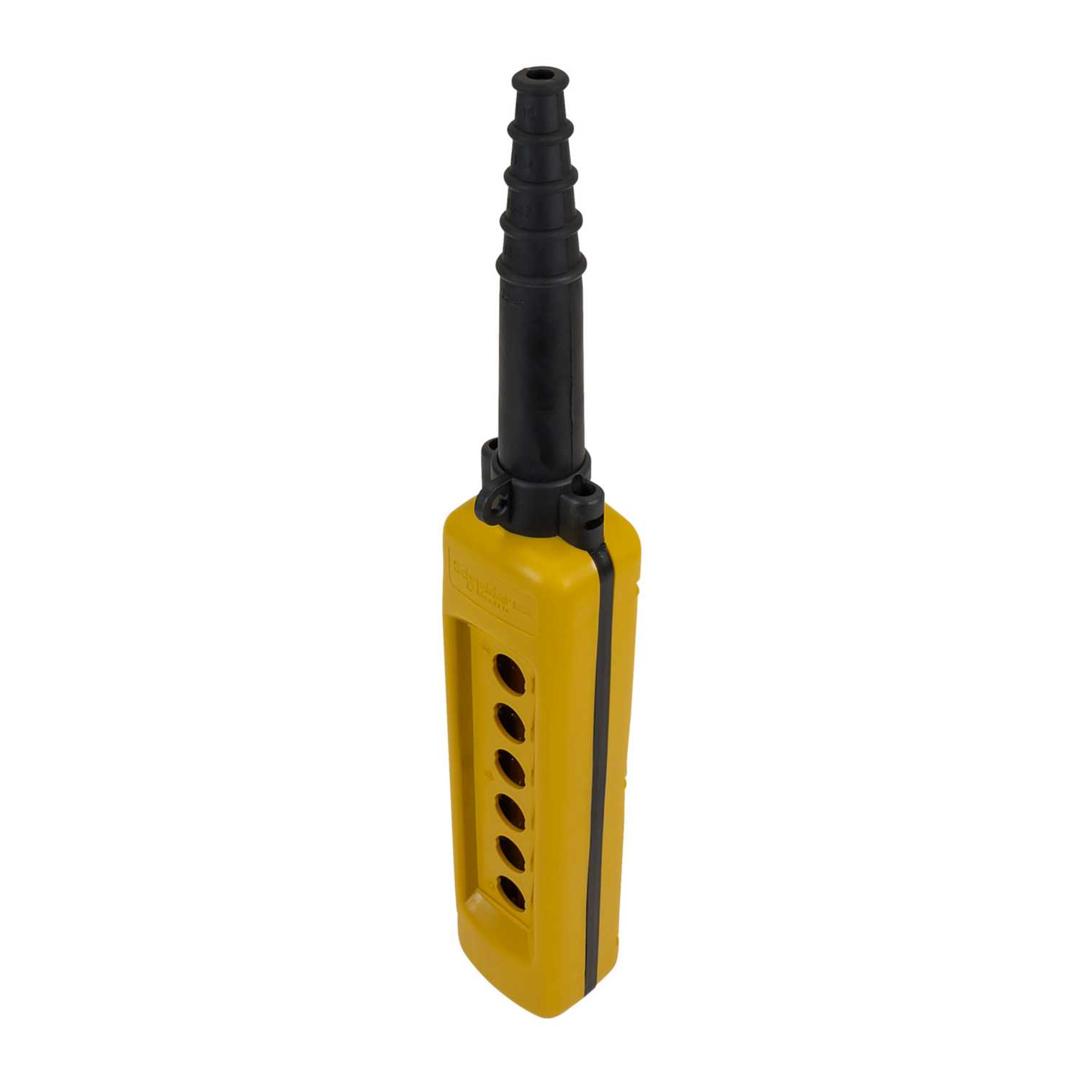

Schneider Harmony XAC 6 Hole Plastic Empty Pendant Control Station Yellow
Part Number: XACA06
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Plastic empty control station for use with Ø 22mm control and signalling units
- 6 x 22.5mm holes in vertical arrangement
- 30mm spacing between hole centres
- Rubber sleeve with stepped cable entry 8 to 26mm
- Double insulated
- Impact, dust, water and vibration resistant
- IP65 when appropriate products are installed correctly
- IK08 impact protection
- Colour
- Yellow/Black
- Depth
- 70mm
- Dimensions
- (H)500 mm x (W)80 mm x (D)70 mm
- Guarantee
- 18 Months
- Height
- 500mm
- Material
- Polypropylene
- Number Of Button Cut Outs
- 6
- Packaging Types
- Each
- Product Range
- Harmony XAC
- Standards
- CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60204-32 UL 508 IEC 60068-2-6 IEC 60068-2-27 IEC 61140 IEC 60529 EN 50102
- Type
- Pendant Control Station
- Unspsc V18
- 39121561
- Unspsc V24
- 39121561
- Weight
- 0.749kg
- Width
- 80mm
