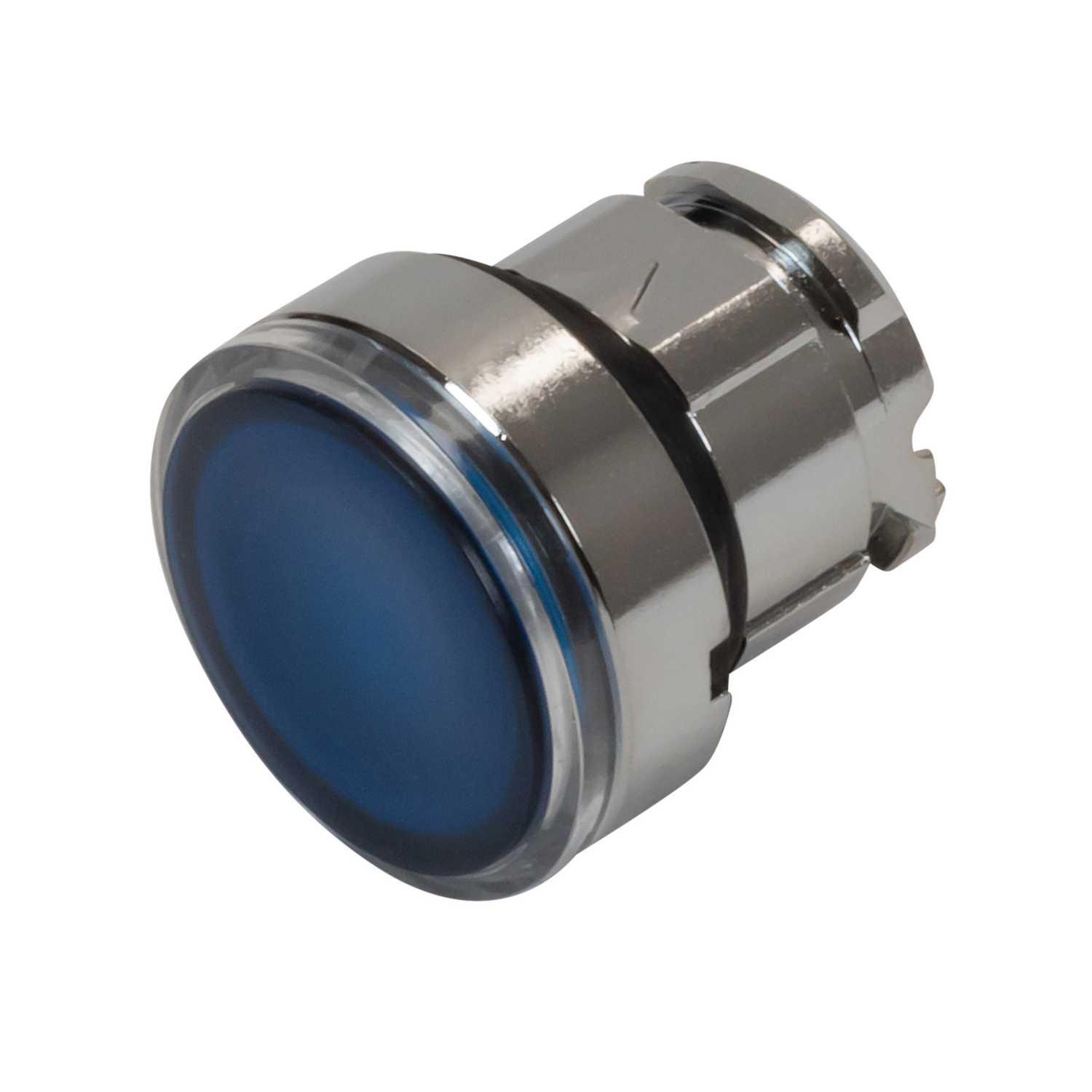

Schneider Harmony XB4 LED Illuminated Spring Return Pushbutton Head Blue
Part Number: ZB4BW363
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Head for illuminated pushbutton
- Chrome plated metal bezel
- Spring return
- Flush button, unmarked
- Plain lens
- For integral LED
- Colour
- Blue
- Cut Out
- 22.5mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)29 mm
- Finish
- Chromium Plated
- Guarantee
- 18 Months
- Head Type
- Flush
- IP Rating
- IP66
- Illuminated
- Yes
- Material
- Metal
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Panel
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- CSA C22.2 No 14 JIS C8201-5-1 UL 508 IEC 60947-1 IEC 60947-5-1 IEC 60947-5-5 IEC 60947-5-4 JIS C8201-1 IEC 62262 IEC 60529 IEC 60536
- Storage Temperature Range
- -40-70°C
- Type
- Pushbutton Head
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Weight
- 0.027kg
- Width
- 29mm
