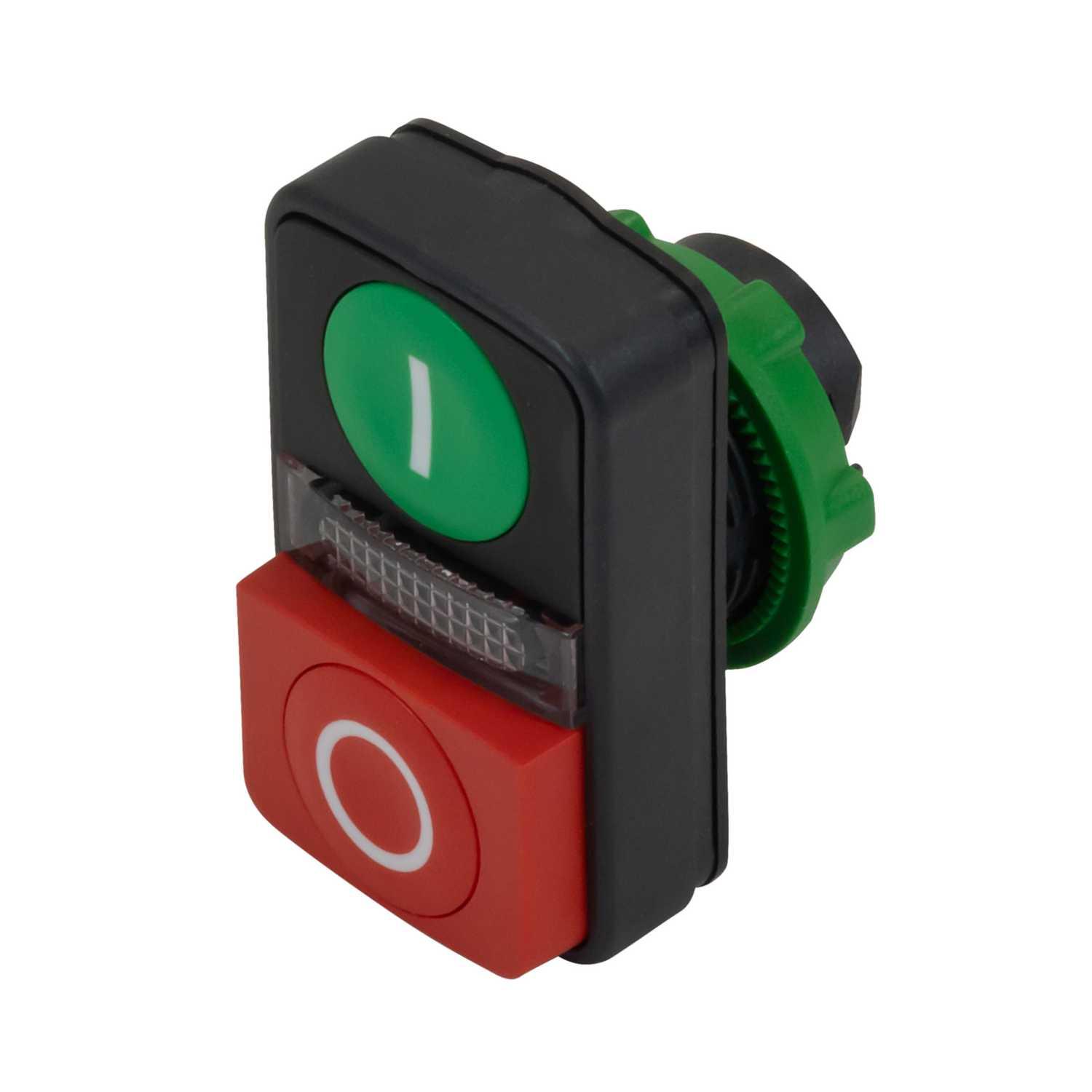

Schneider Harmony XB5 Illuminated Double Headed Pushbutton Head Projecting Stop
Part Number: ZB5AW7L3741
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Double head has a 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism
- Double-head button provides a versatile interface for controlling your machines
- Easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly
- Impact resistant, dust resistant, water resistant and vibration resistant
- Plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation
- Designed to fit in a standard 22.5mm cut-out, ensuring compatibility when installing in pre-existing machinery
- Colour
- Green/Red
- Cut Out
- 22.5mm
- Depth
- 35mm
- Dimensions
- (H)50 mm x (W)30 mm x (D)35 mm
- Guarantee
- 18 Months
- Height
- 50mm
- Illuminated
- Yes
- Ip Rating
- IP69
- Lamp Included
- No
- Legend
- "l" and "0"
- Material
- Plastic, Rubber
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB5
- Standards
- IEC 60947-5-4 IEC 60947-1 IEC 60947-5-1
- Type
- Illuminated Push Button
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.027kg
- Width
- 30mm
