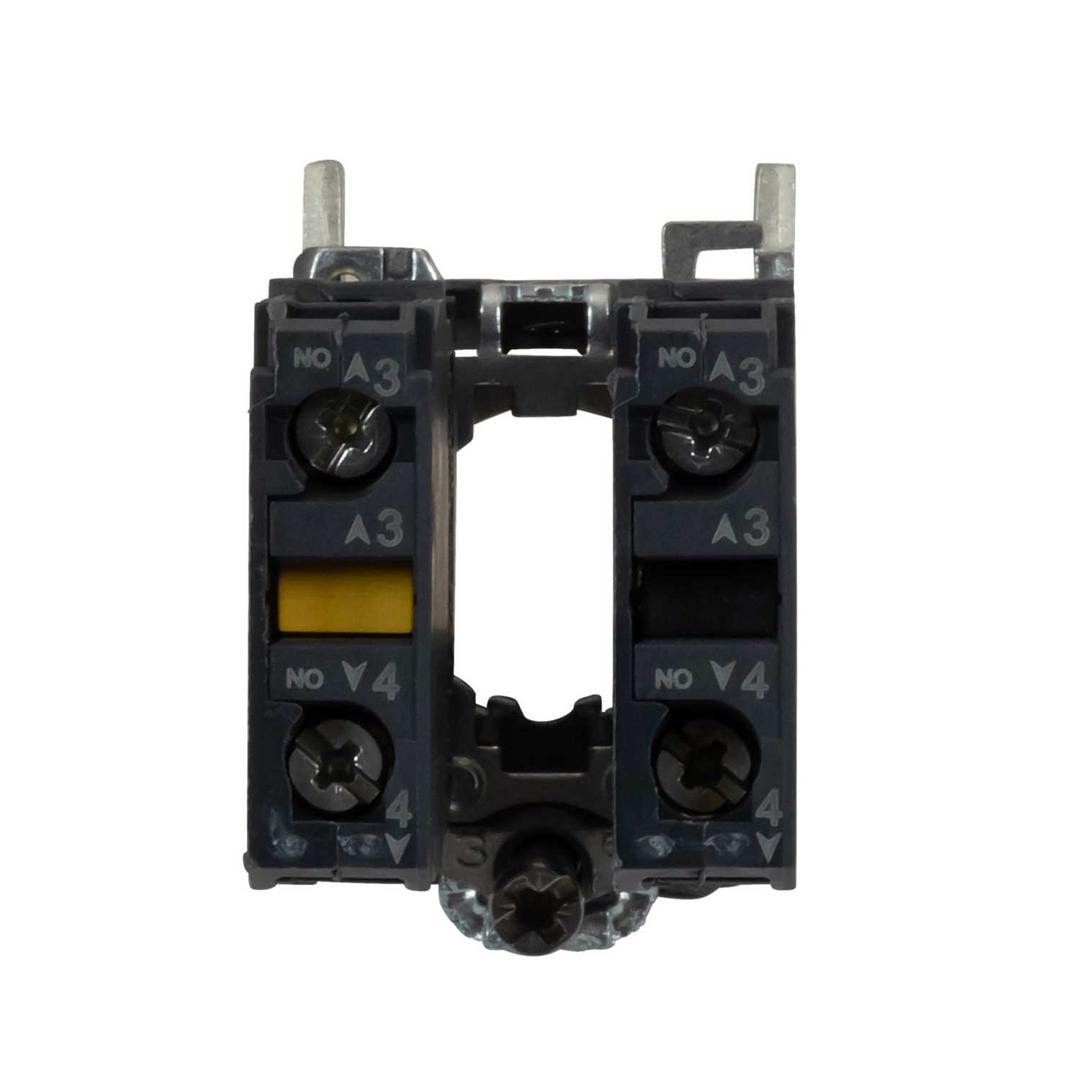

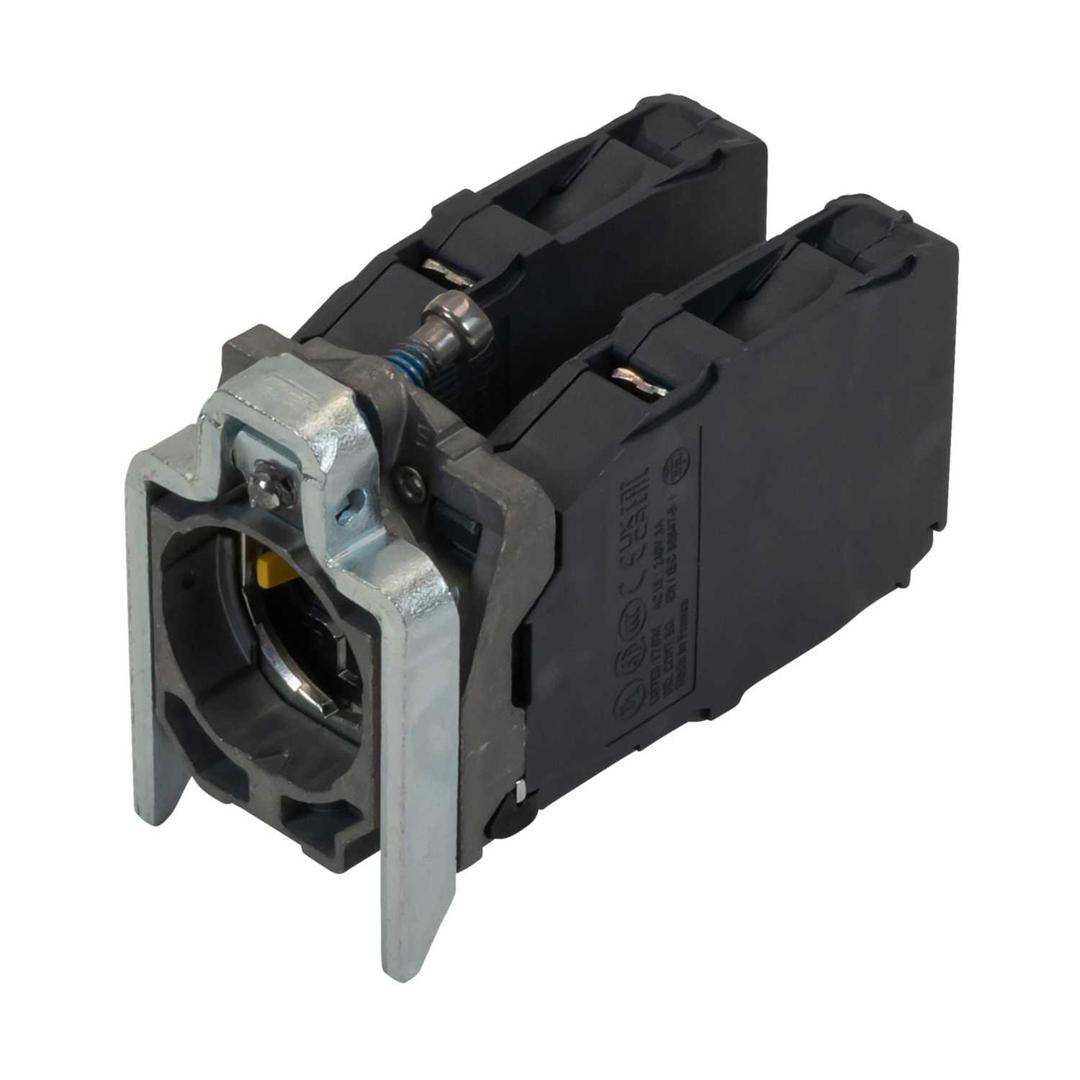

Schneider Harmony XB4 4NO Contact Block and Collar for 4 Direction Joystick Controller
Part Number: ZD4PA203
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Contacts type and composition: 4 NO
- Contact block operates with 4 directions and uses screw-clamp terminals
- Chromium-plated metal bezel
- Contact block is pre-mounted to a body fixing collar and allow fast and easy replacement and configuration of your joystick controllers with 4-direction operation
- Easily installed and replaced on XB4 complete joystick controllers and connects to control circuits with simple screw-clamp connections
- Colour
- Black/Chrome
- Contact Configuration
- 4 NO
- Cut Out
- 22.5mm
- Dimensions
- (H)47 mm x (W)30 mm
- Guarantee
- 18 Months
- Height
- 47mm
- Ip Rating
- IP20
- Material
- Plastic, Metal
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- IEC 60947-1 IEC 60947-5-1 IEC 60947-5-5 IEC 60947-5-4
- Type
- Contact Block and Collar
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Weight
- 0.081kg
- Width
- 30mm
