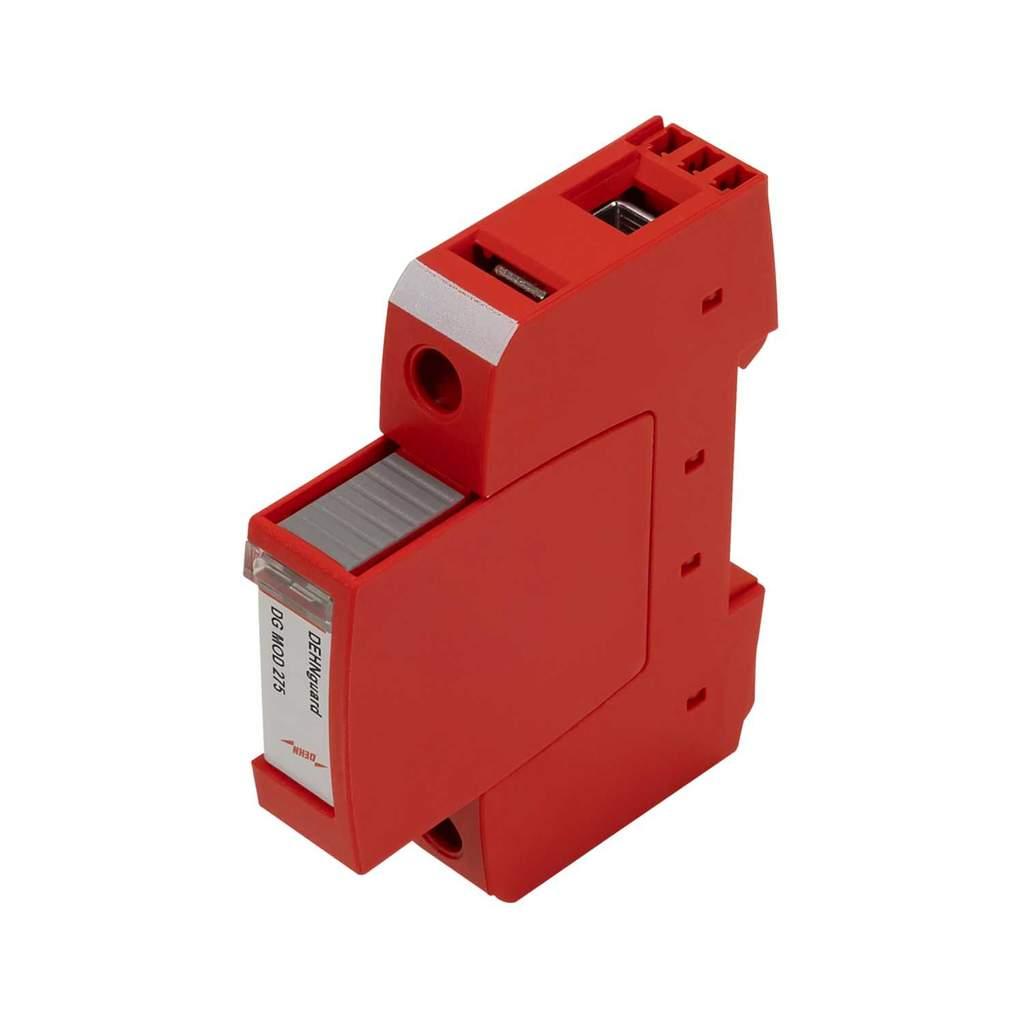

IPD 40kA 1 Pole Type 2 Surge Arrester
Part Number: DGS275
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- MOV modular surge protection for 230V AC systems
- 40kA Imax
- 20kA In
- Module can be replaced after an event
- Red / green fault indication window
- Supplied with MEN link
- Type 2 surge protection for electrical systems
- Sensitive electronic equipment requires Type 3 surge protection downstream of Type 2
- Colour
- Red
- Depth
- 66mm
- Dimensions
- (H)90 mm x (W)18 mm x (D)66 mm
- Guarantee
- 1 Year
- Height
- 90mm
- Ip Rating
- IP20
- Material
- Plastic
- Maximum Discharge Current
- 40kA
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- DEHN
- Standards
- EN 61643-11
- Type
- Surge Protection Device
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Voltage Rating
- 230V AC
- Weight
- 0.122kg
- Width
- 18mm
