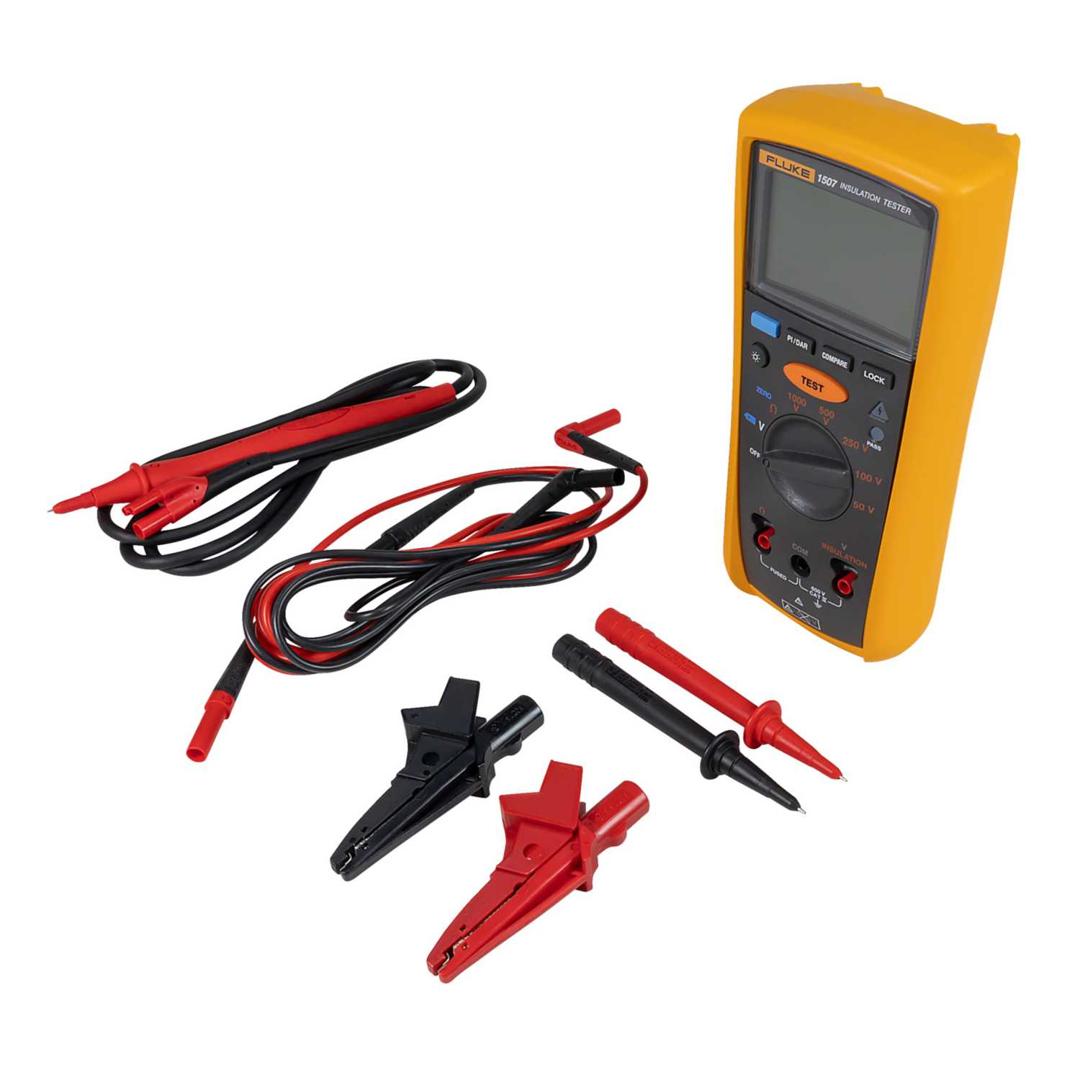

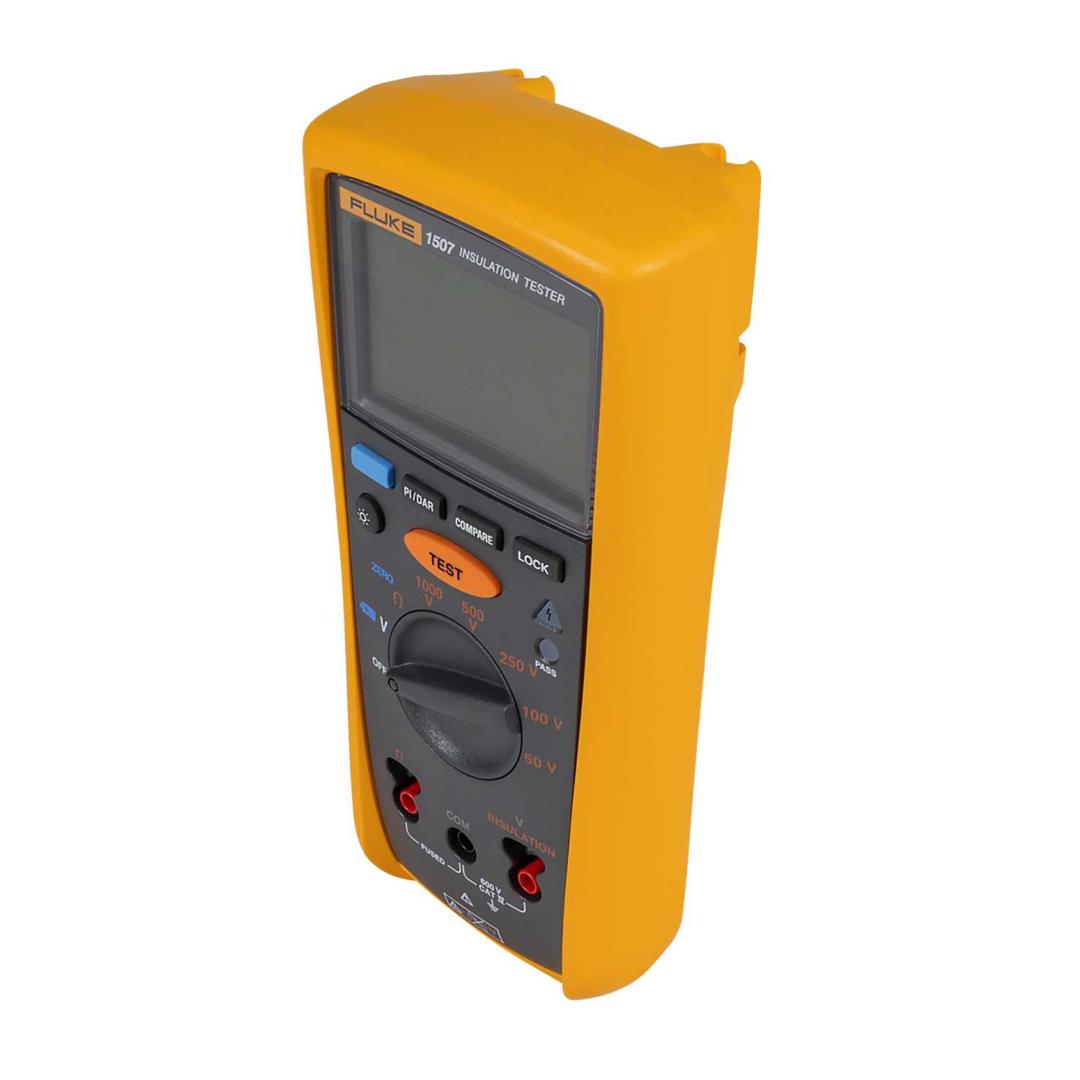

Fluke 600V AC/DC Insulation and Continuity Tester
Part Number: FLU1507
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
- Automatically calculates polarisation index and dielectric absorption ratio
- Makes repetitive tests simple and easy with a compare (pass/fail) function
- Offers multiple insulation test voltages
- Auto power off
- Ac Voltage Measurement
- 600V AC
- Auto Power Down
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Colour
- Yellow/Black
- Continuity Check
- Yes
- Continuity Range
- 0.01 Ω - 200 Ω
- Dc Voltage Measurement
- 600V DC
- Depth
- 50mm
- Dimensions
- (L)203 mm x (W)100 mm x (D)50 mm
- Display Type
- LCD
- Guarantee
- 1 Year
- Humidity Range
- 40 - 95% RH
- Insulation Resistance Measuring Range
- 0.01 MΩ - 10.00 GΩ
- Insulation Test Voltage
- 50V / 100V / 250V / 500V / 1000V
- Ip Rating
- IP40
- Length
- 203mm
- Material
- Plastic
- Number Of Batteries
- 4
- Operating Temperature Range
- -20 - +55°C
- Packaging Types
- Each
- Product Range
- Insulation and Continuity
- Safety Range
- CAT IV 600V
- Standards
- IEC/EN 61010-1
- Storage Temperature Range
- -40 - 60°C
- Supplied With
- Fluke 1507 Insulation Resistance Tester Remote Probe Test Leads Test Probes Crocodile Clips User Documentation
- Type
- Insulation and Continuity Tester
- Unspsc V18
- 41113624
- Unspsc V24
- 41113624
- Weight
- 1.101kg
- Width
- 100mm
