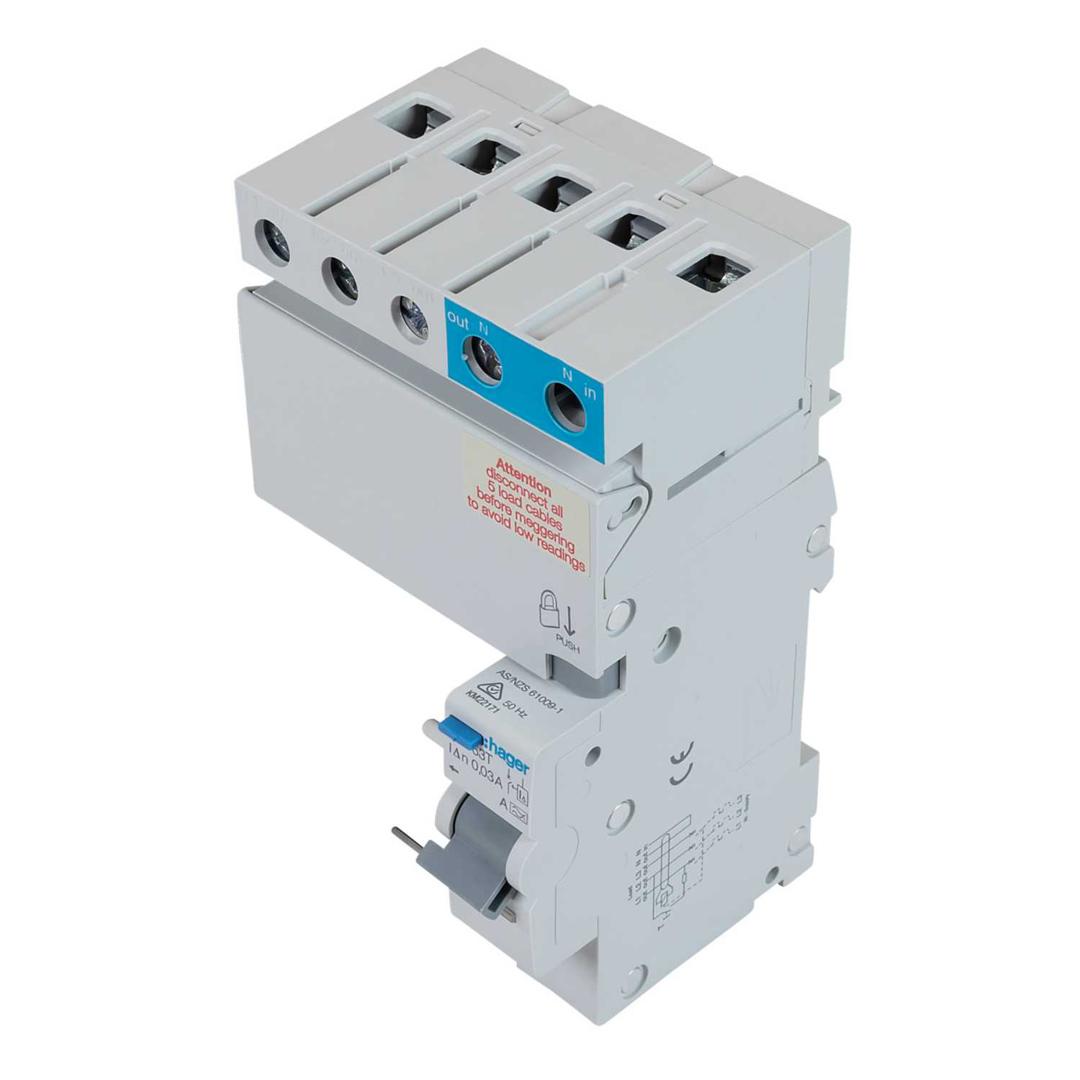

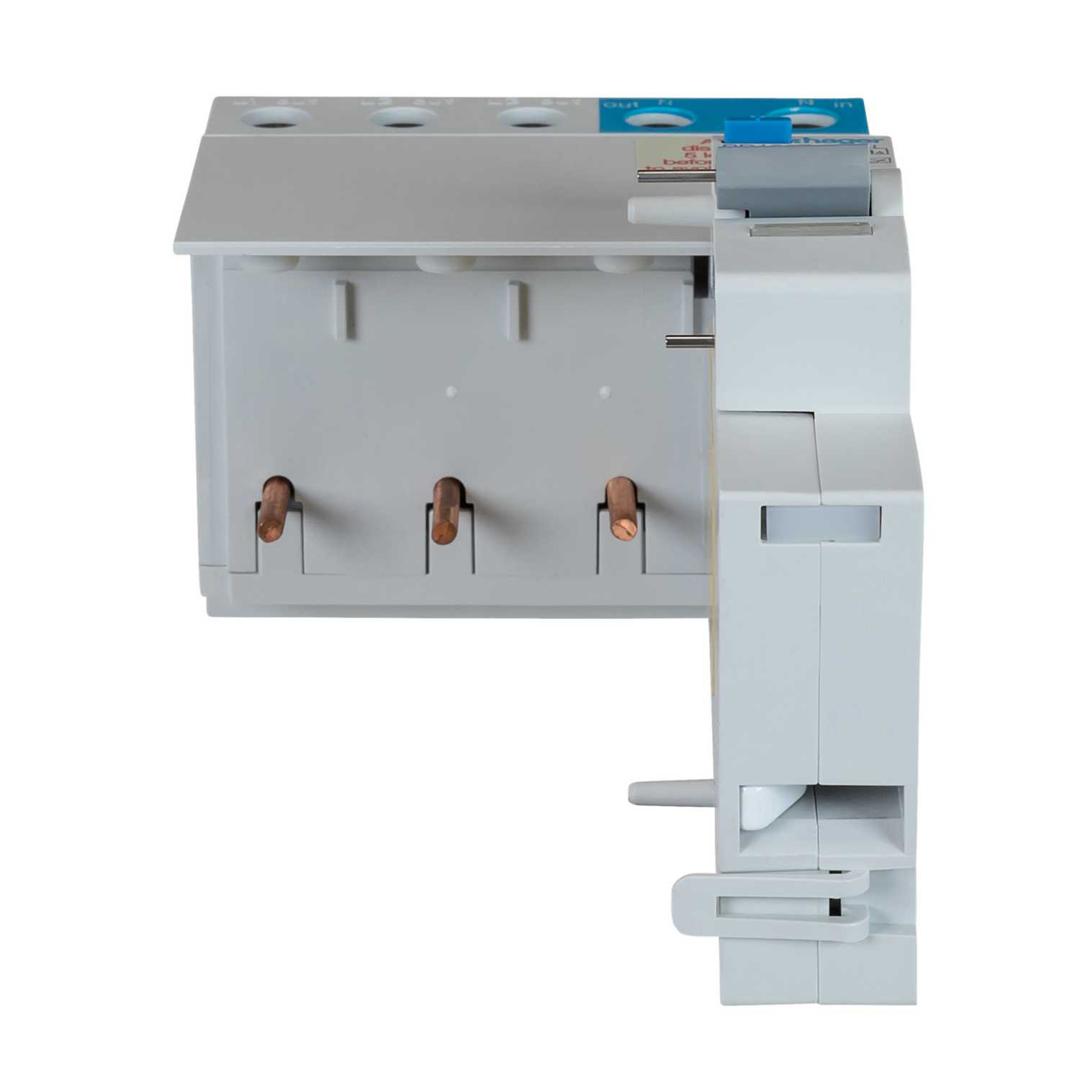

Hager 63A 3 Pole 30mA Earth Leakage Add-on Block
Part Number: BD163T
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Designed to convert a 3 pole Hager MCB into a combined RCBO
- Suits NT and NDN series MCBs up to 63A
- Provides earth leakage protection without needing a separate RCD
- Type A 30mA RCD function provides general personnel protection
- 1 module
- Neutral position to the right
- Colour
- Grey
- Compliance
- AS/NZS 61008.1
- Current Rating
- 63A
- Depth
- 69.10mm
- Dimensions
- (H)121 mm x (W)70.80 mm x (D)69.10 mm
- Guarantee
- 1 Year
- Height
- 121mm
- Incoming Terminal Capacity
- 25mm²
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 3 Pole
- Outgoing Terminal Capacity
- 25mm²
- Packaging Types
- Each
- Product Range
- AOB
- Rcd Type
- A
- Standards
- IEC61009-1
- Tripping Sensitivity
- 30mA
- Type
- Add-on Block
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 415V AC
- Weight
- 0.218kg
- Width
- 70.80mm
