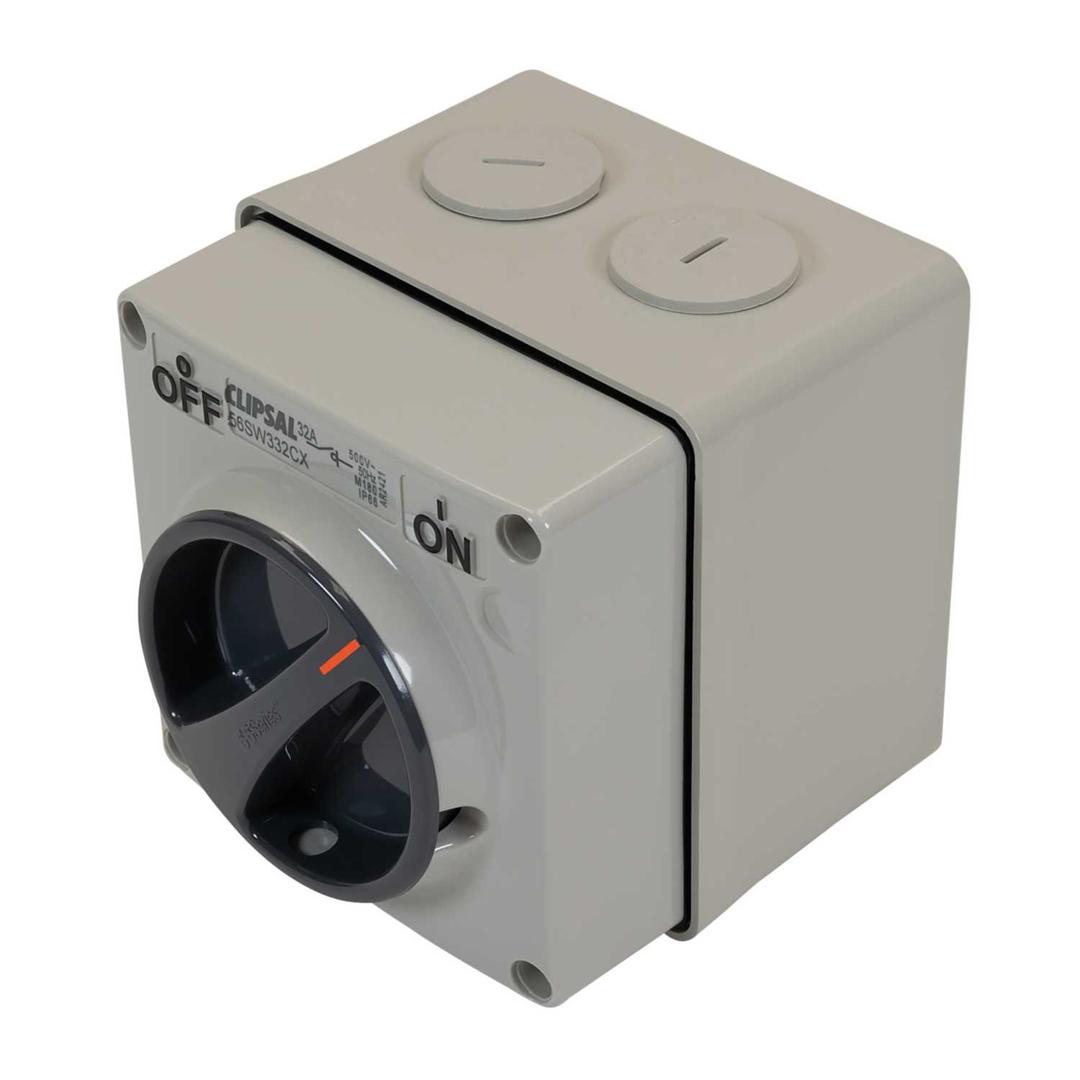

Clipsal 32A 3 Pole 500V AC 1 Gang Switch with 2A Control Circuit 56 Series IP66 Grey
Part Number: 56SW332CX-GY
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Weatherproof rotary isolator made from UV stabilised polycarbonate
- Allows for additional low power devices to be used without effecting the main power circuit
- Designed to control a low-power circuit independently of the main 32 amp switch
- ON/OFF position clearly indicated
- Provision for padlock up to 8mm hasp
- Threaded gland knockouts
- Single piece sealing gasket
- Colour
- Grey
- Compliance
- IP66 Conforming to AS 60529
- Current Rating
- 32A
- Depth
- 108mm
- Dimensions
- (H)107 mm x (W)101 mm x (D)108 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 107mm
- Ip Rating
- IP66
- Material
- Polycarbonate
- Mounting
- Surface
- Number Of Gangs
- 1
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- 56 Series
- Shape
- Square
- Standards
- AS/NZS 3133
- Type
- Industrial Switch
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 500V AC
- Weight
- 0.63kg
- Width
- 101mm
