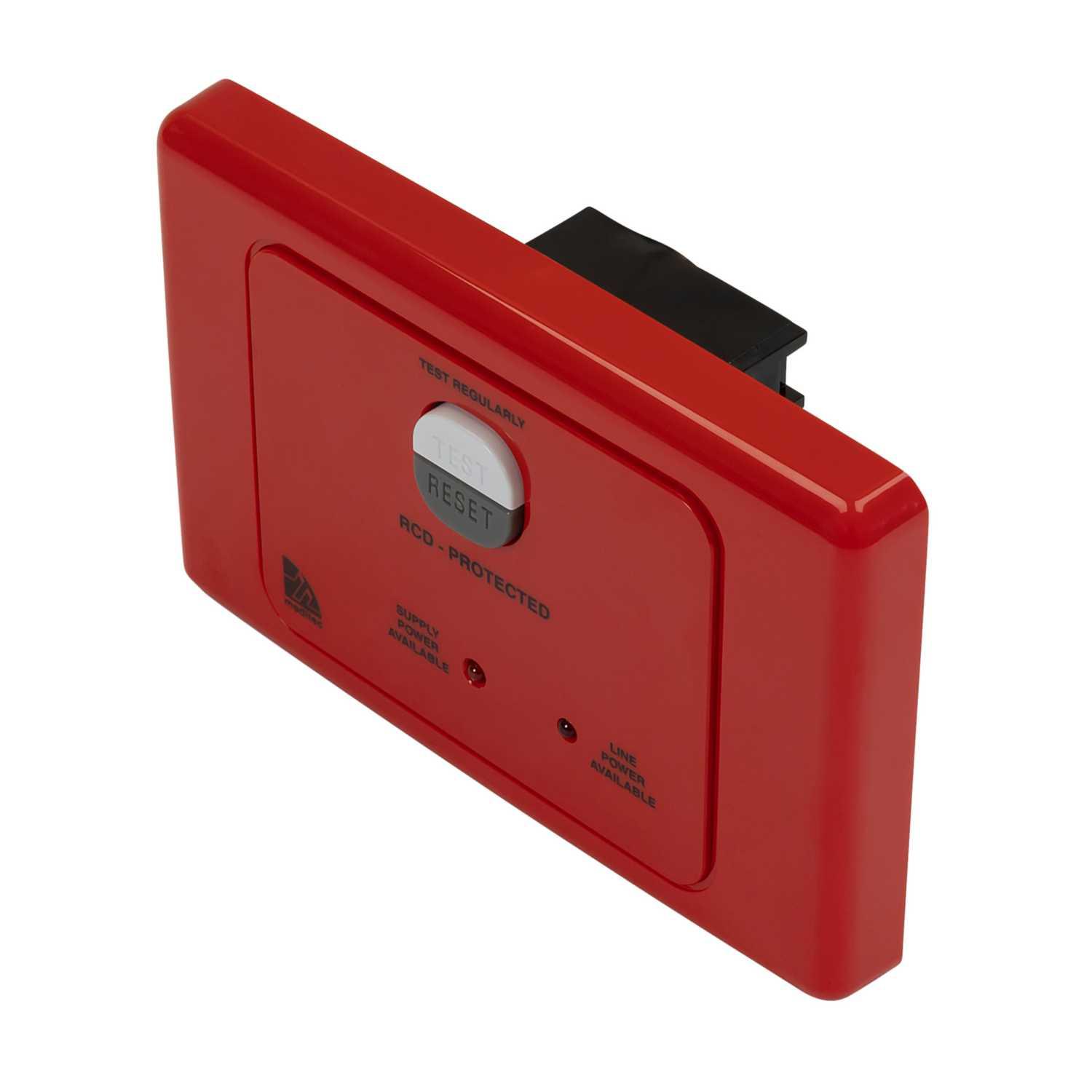

Clipsal 10mA 20A Double Pole RCCB Medilec Red
Part Number: ML2031RC10-RD
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Horizontal mount, residual current circuit breaker
- Capable of protecting any device that is hard wired directly to the load terminals and any socket connected downstream of the load terminals
- Surround style plate that hides all fixing screws
- Medilec range is designed for the medical profession
- Neon indicator for visual confirmation of supply power and line power available at the device
- Earth-leakage protection class type I
- Test and reset functionality
- 10mA trip for use in areas of increased risk and protection of sensitive medical equipment
- Red denotes product is connected to mains power, typically with UPS or generator back-up
- Colour
- Red
- Current Rating
- 20A
- Depth
- 13mm
- Dimensions
- (H)76 mm x (W)116 mm x (D)13 mm
- Finish
- Gloss Finish
- Fixing Centres
- 84mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 76mm
- Material
- Plastic
- Mounting
- Flush
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- Medilec Series
- Rcd Rating
- 10mA
- Shape
- Rectangular
- Standards
- AS/NZS 3190
- Test Button
- Yes
- Type
- RCCB
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 250V AC
- Weight
- 0.206kg
- Width
- 116mm
