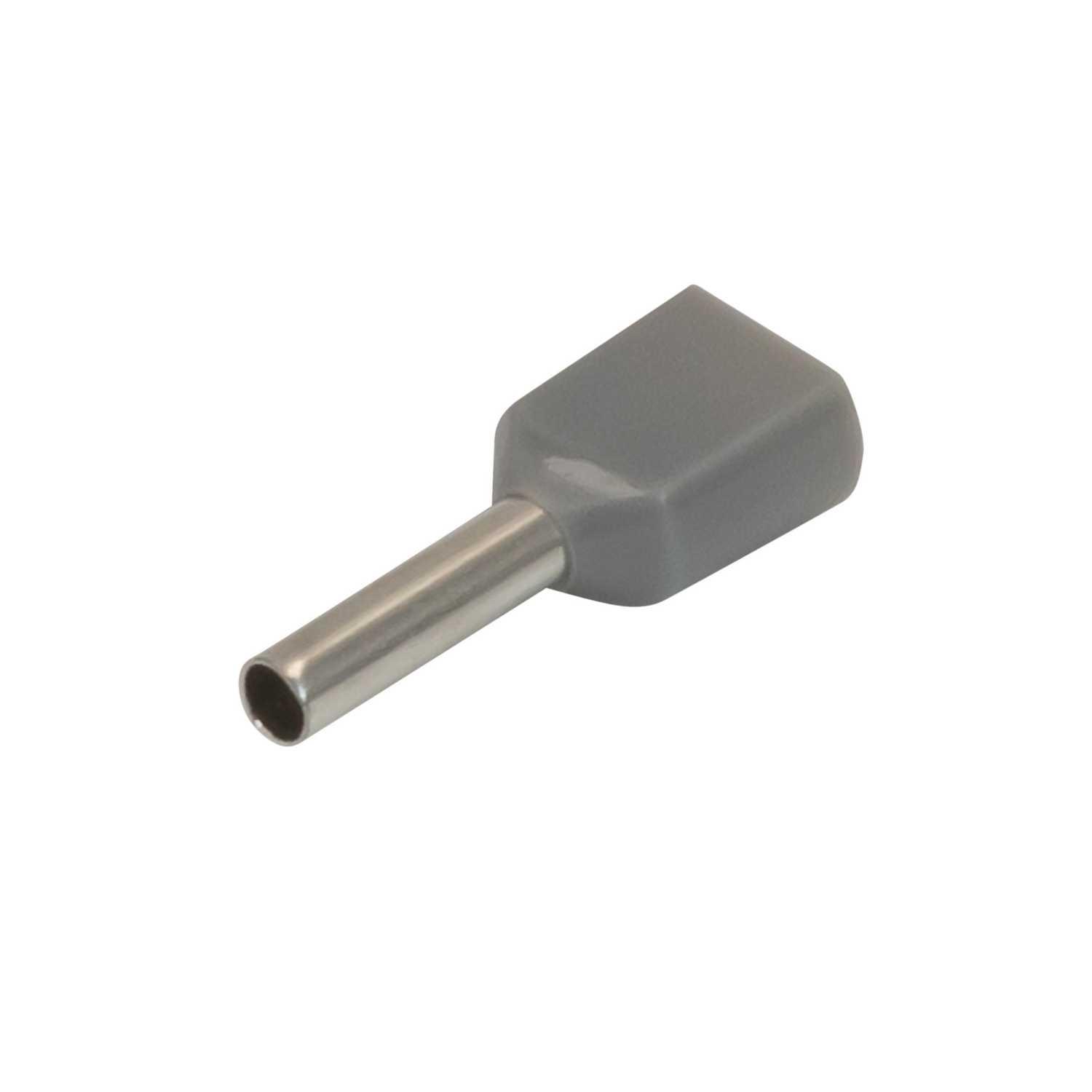

Alco 2 x 0.75mm² Twin Bootlace Pin Pre-insulated Crimp Terminal Grey
Part Number: ALCBLTGY/100
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Provide precise terminations to multi–stranded cable
- Used to terminate two wires in the one terminal
- Reduces possibility of short–circuiting and ensures no strands stray
- 600V max
- Operating temperature: 105°C
- Barrel Diameter
- 1.8mm
- Barrel Length
- 8.0mm
- Cable Size
- 0.75mm²
- Colour
- Grey
- Dimensions
- (L)15 mm
- Ferrule Type
- Insulated
- Guarantee
- 1 Year
- Insulated
- Yes
- Length
- 15mm
- Material
- Copper with Polyamide Sleeve
- Operating Temperature
- 105°C
- Packaging Types
- Pack
- Product Range
- Bootlace Ferrule
- Type
- Twin Bootlace Ferrule
- Unspsc V18
- 39121405
- Unspsc V24
- 39121405
- Voltage Rating
- 600V
- Weight
- 0.002kg
