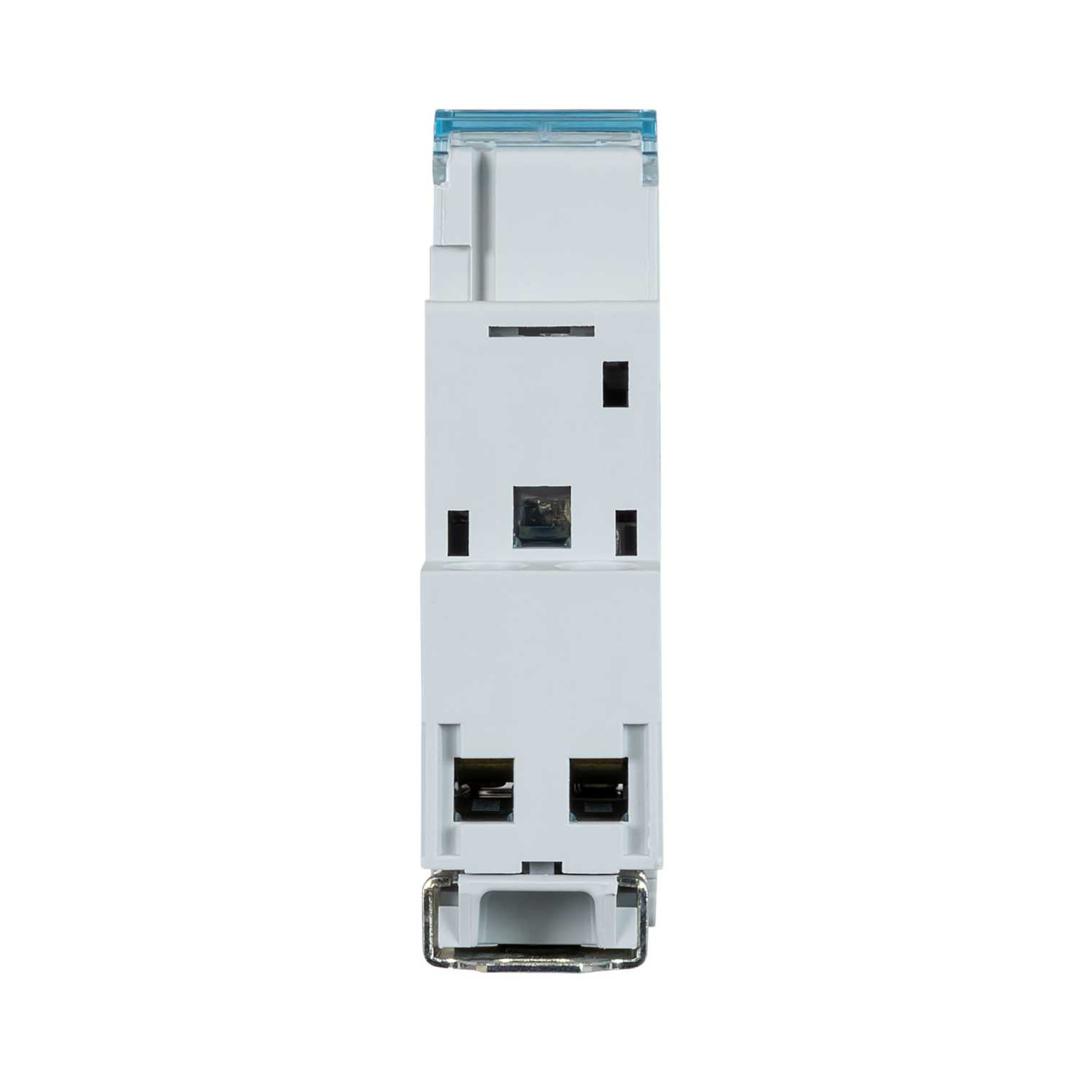

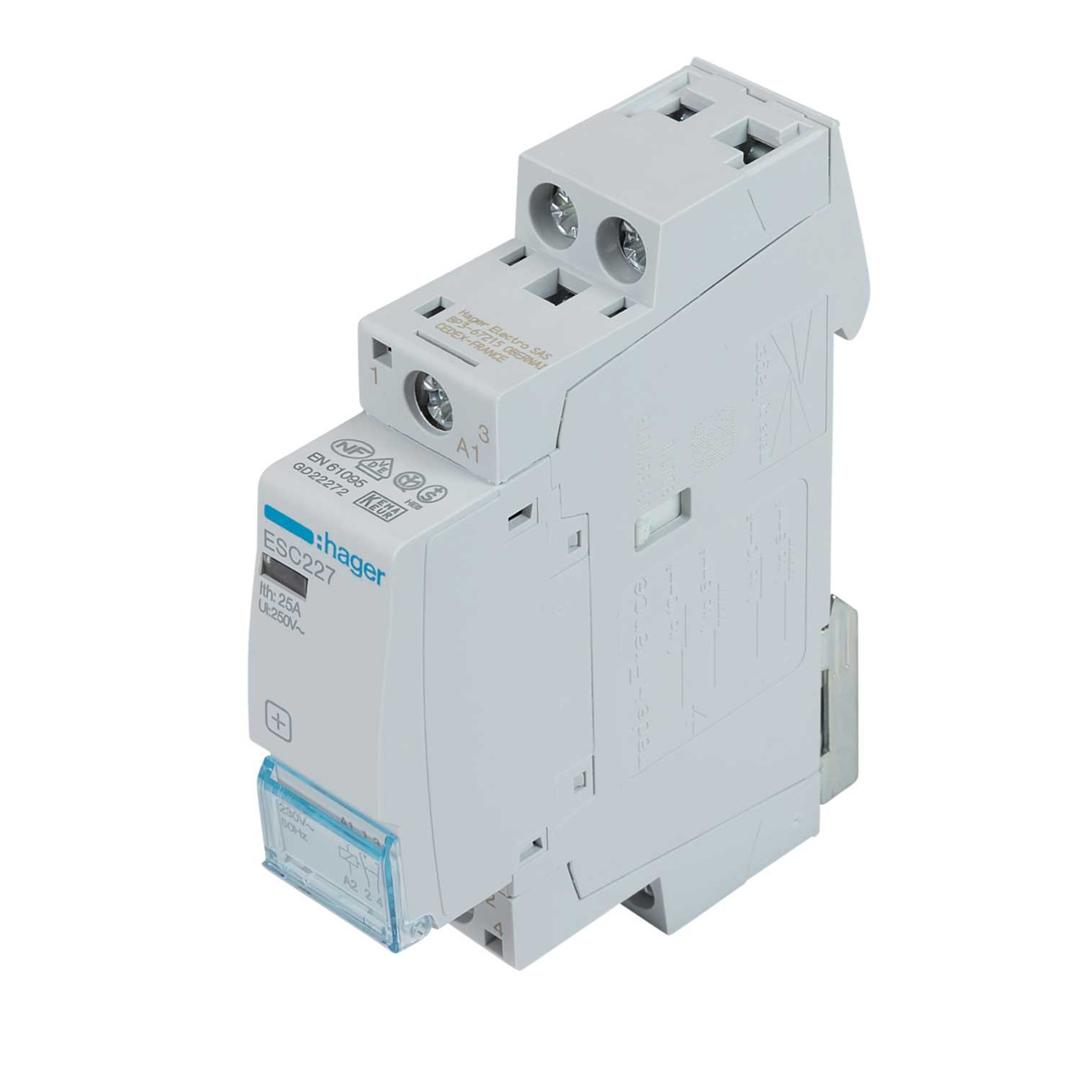

Hager 25A 1 Module Contactor 1NO+1NC Contacts 230V AC
Part Number: ESC227
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For the remote switching and control of power circuits (25A - 63A AC7 category A)
- Coil Voltage
- 230V AC
- Colour
- Grey
- Compliance
- NF, VDE, IMQ, KEMA, RMC, CCC
- Contact Configuration
- 1 NO + 1 NC
- Current Rating
- 25A
- Depth
- 60mm
- Dimensions
- (H)83 mm x (W)17.85 mm x (D)60 mm
- Frequency
- 50 Hz
- Guarantee
- 2 Years
- Height
- 83mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 2 Pole
- Operating Temperature Range
- -10 - +50°C
- Packaging Types
- Each
- Product Range
- ESC Standard
- Standards
- EN 61095
- Type
- Contactor
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 230V AC
- Weight
- 0.114kg
- Width
- 17.85mm
