Schneider Harmony XB4R Wireless Pushbutton and 24V DC Receiver
Part Number: XB4RFB01
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

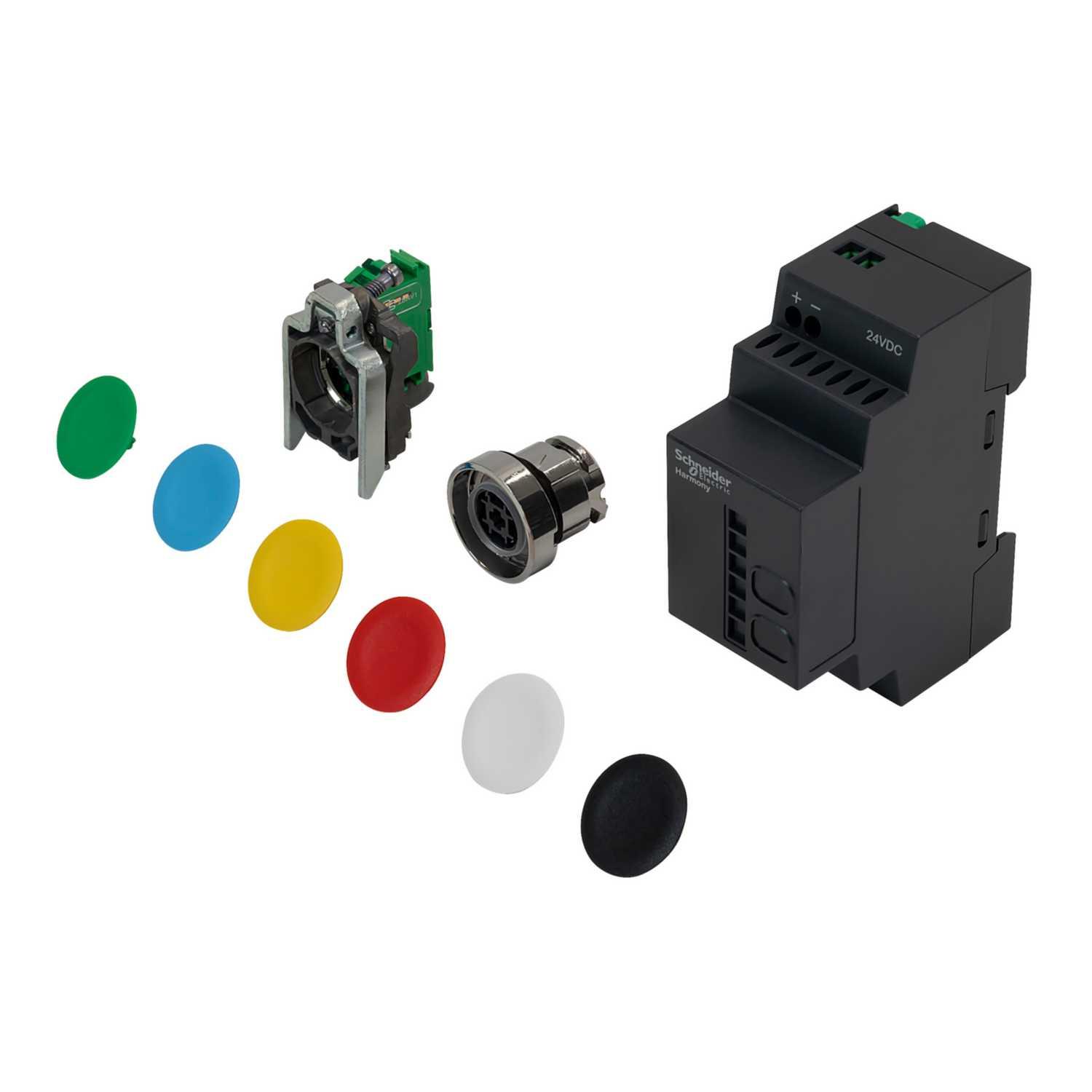

- Ready-to-use pack that comprises of one wireless and batteryless metallic pushbutton, assembled on a fixing collar and one receiver
- Pushbutton and receiver are factory-paired and are non configurable
- Reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel
- Allows an operator to be mobile or have a control mounted on-board of a vehicle (trolley, truck, etc.)
- Pushbutton is always available and requires no maintenance (no battery needed)
- Panel mount pushbutton, dimensions 52mm deep x 46.5mm high x 30mm wide
- DIN rail mount receiver, dimensions 70.5mm deep x 108mm high x 36mm wide
- Transmitter and receiver work on Zigbee at 2405 MHz
- Various coloured caps included
- Button Profile
- Flush
- Colour
- Black
- Cut Out
- 22.5mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm
- Finish
- Chromium Plated
- Guarantee
- 18 Months
- Head Type
- Standard
- Ip Rating
- IP65
- Legend
- None
- Material
- Metal, Plastic
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB4R
- Standards
- EN/IEC 60947-1 EN/IEC 60947-5-1 IEEE 802.15.4
- Supplied With
- 1 Fixing Collar 1 Pushbutton Head 1 Transmitter 1 Receiver 1 Set of Caps
- Type
- Remote Pushbutton
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Voltage Rating
- 24V DC
- Weight
- 0.22kg
