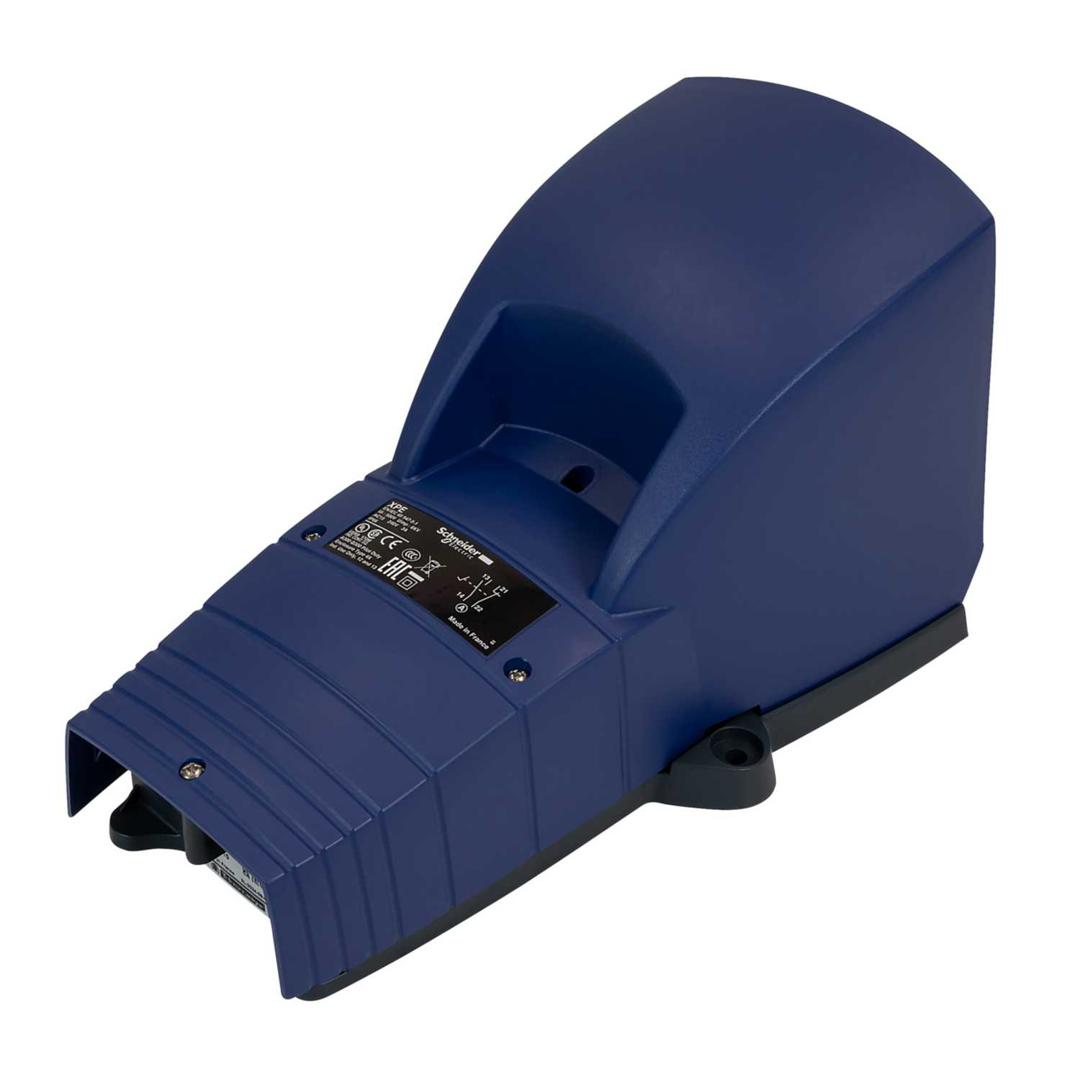

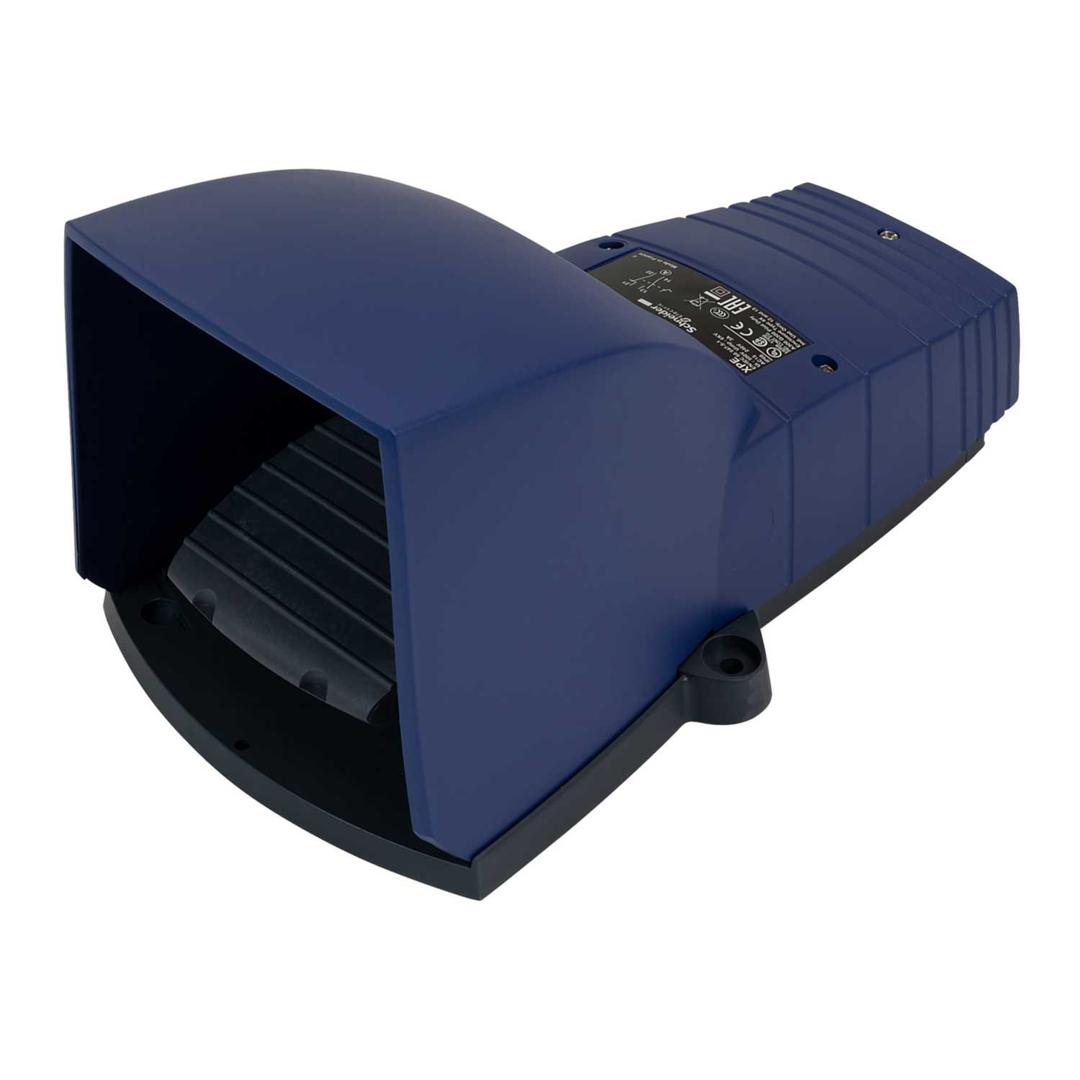

Schneider Harmony XPE Plastic Foot Switch with Cover Blue
Part Number: XPEB310
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

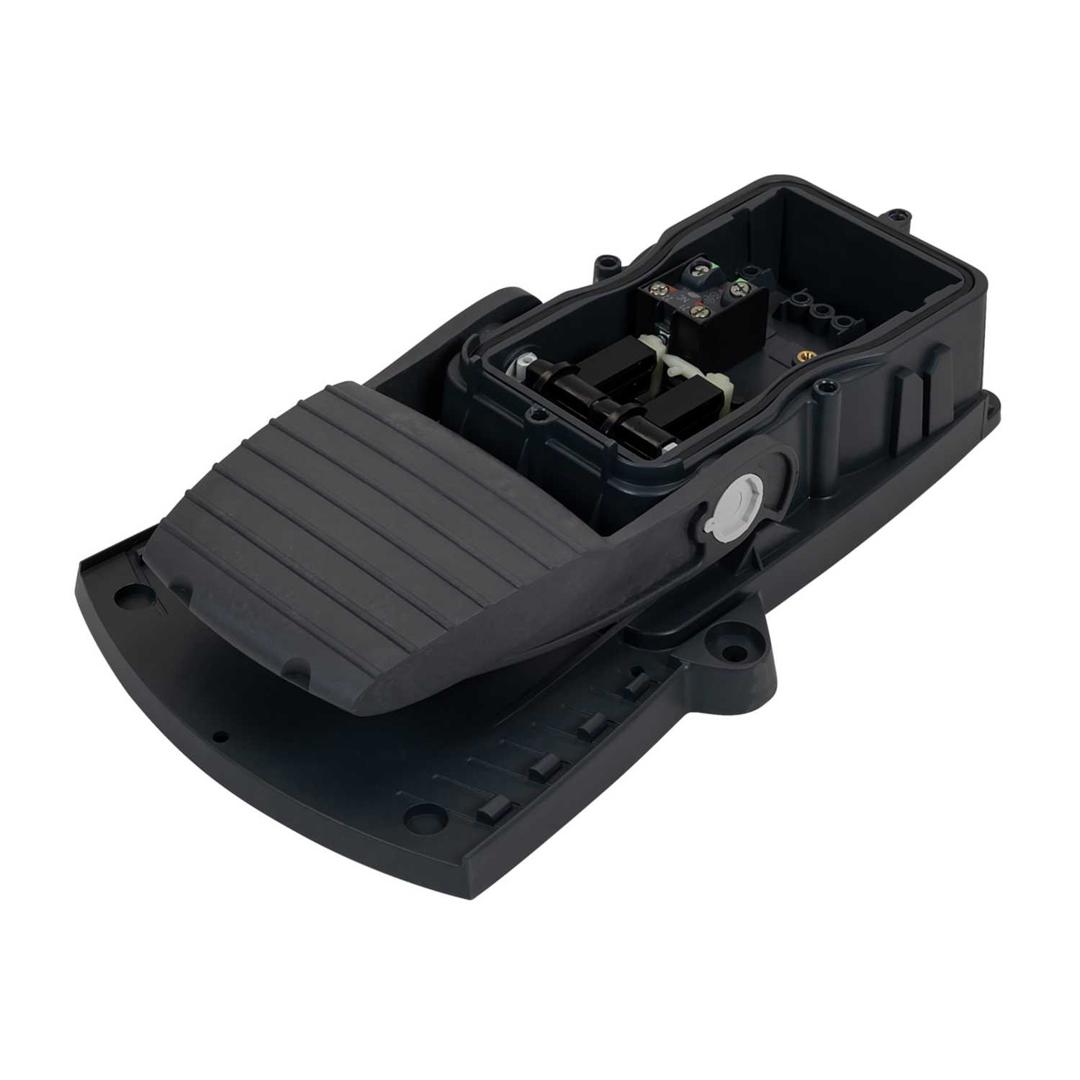

- Shrouded single foot switch, without trigger mechanism
- IP66 rating
- 1 step contact operation
- 1NO + 1NC contacts
- Screw clamp terminals
- Colour
- Blue
- Contact Configuration
- 1 NO + 1 NC
- Depth
- 282mm
- Dimensions
- (H)154 mm x (W)165 mm x (D)282 mm
- Footguard
- Yes
- Guarantee
- 18 Months
- Height
- 154mm
- Ip Rating
- IP66
- Material
- Plastic
- Number Of Pedals
- 1
- Operating Temperature Range
- -25-70°C
- Packaging Types
- Each
- Product Range
- Harmony XPE
- Standards
- IEC 60947-5-1 IEC 60068-2-6 IEC 60068-2-27 IEC 61140 IEC 60529
- Type
- Foot Switch
- Unspsc V18
- 39122222
- Unspsc V24
- 39122222
- Weight
- 0.97kg
- Width
- 165mm
