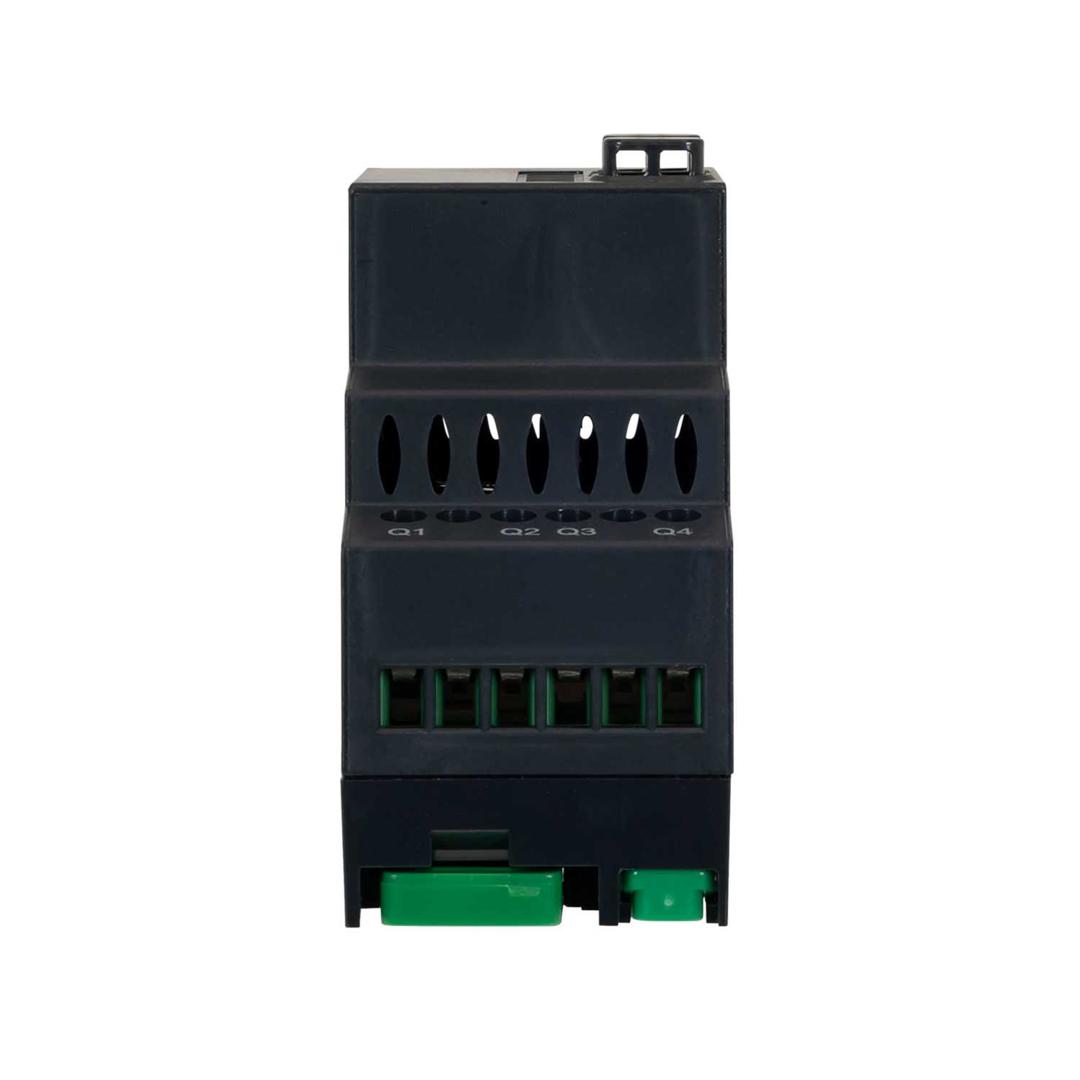

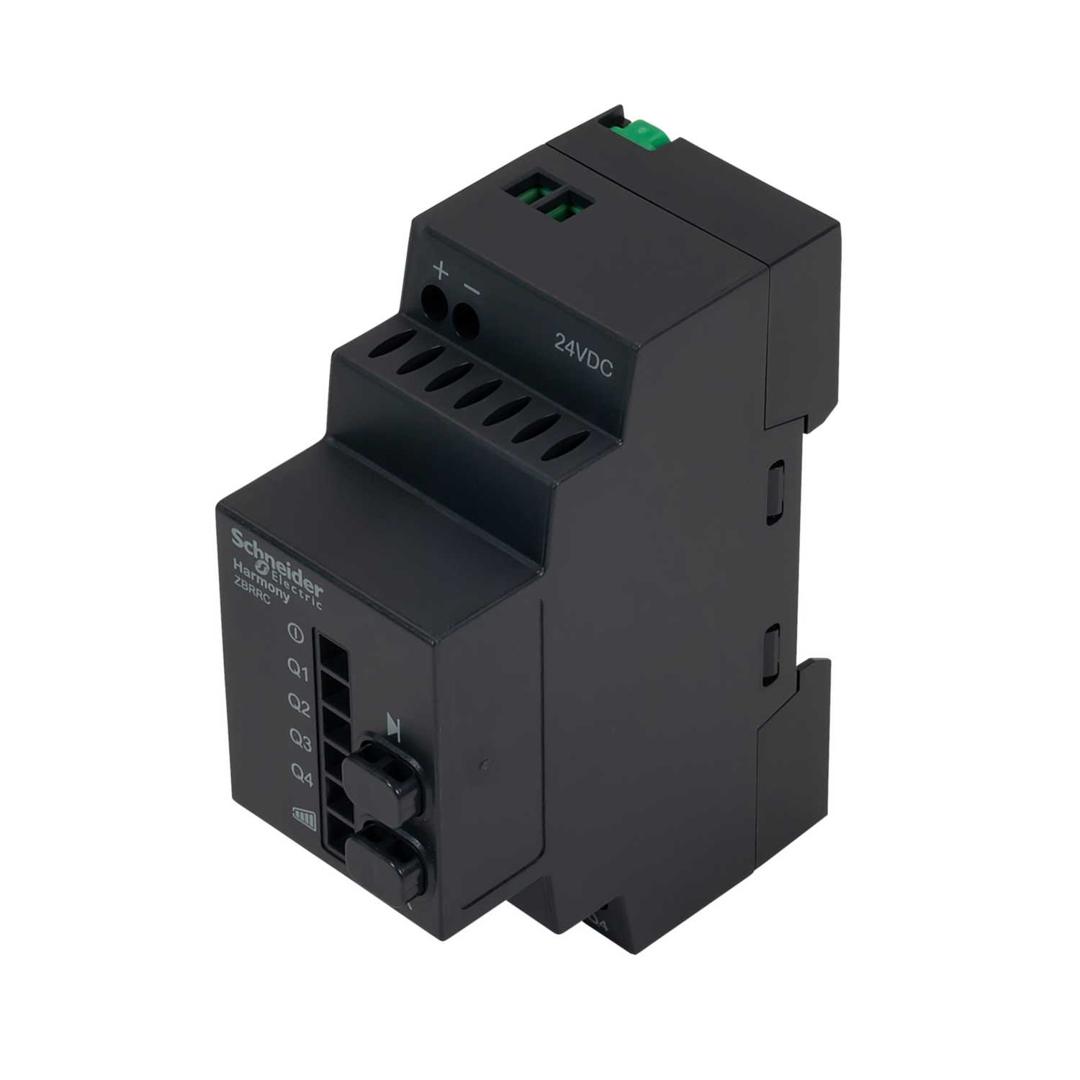

Schneider Harmony XB5R Configurable Receiver 24V DC
Part Number: ZBRRC
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Configurable receiver is part of the ranges Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons
- Equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power on, function modes, output status, signal strength)
- Features 4 PNP outputs, 200 mA /24 V and it can be supplied with 24V DC
- Easily combined with wireless and batteryless pushbuttons XB4R/XB5R and limit switches XCKW/XCMW
- Operates with the Zigbee protocol green power 2.4 GHz in compliance with IEEE 802.15.4
- Colour
- Dark Grey
- Depth
- 75mm
- Dimensions
- (H)108 mm x (W)36 mm x (D)75 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 108mm
- Ip Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail or Panel
- Operation Type
- Controller
- Packaging Types
- Each
- Product Range
- Harmony XB4R/XB5R and XCKW/XCMW
- Suitable For
- Harmony XB4 and XB5
- Type
- Programmable Receiver
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Voltage Rating
- 24V DC
- Weight
- 0.125kg
- Width
- 36mm
