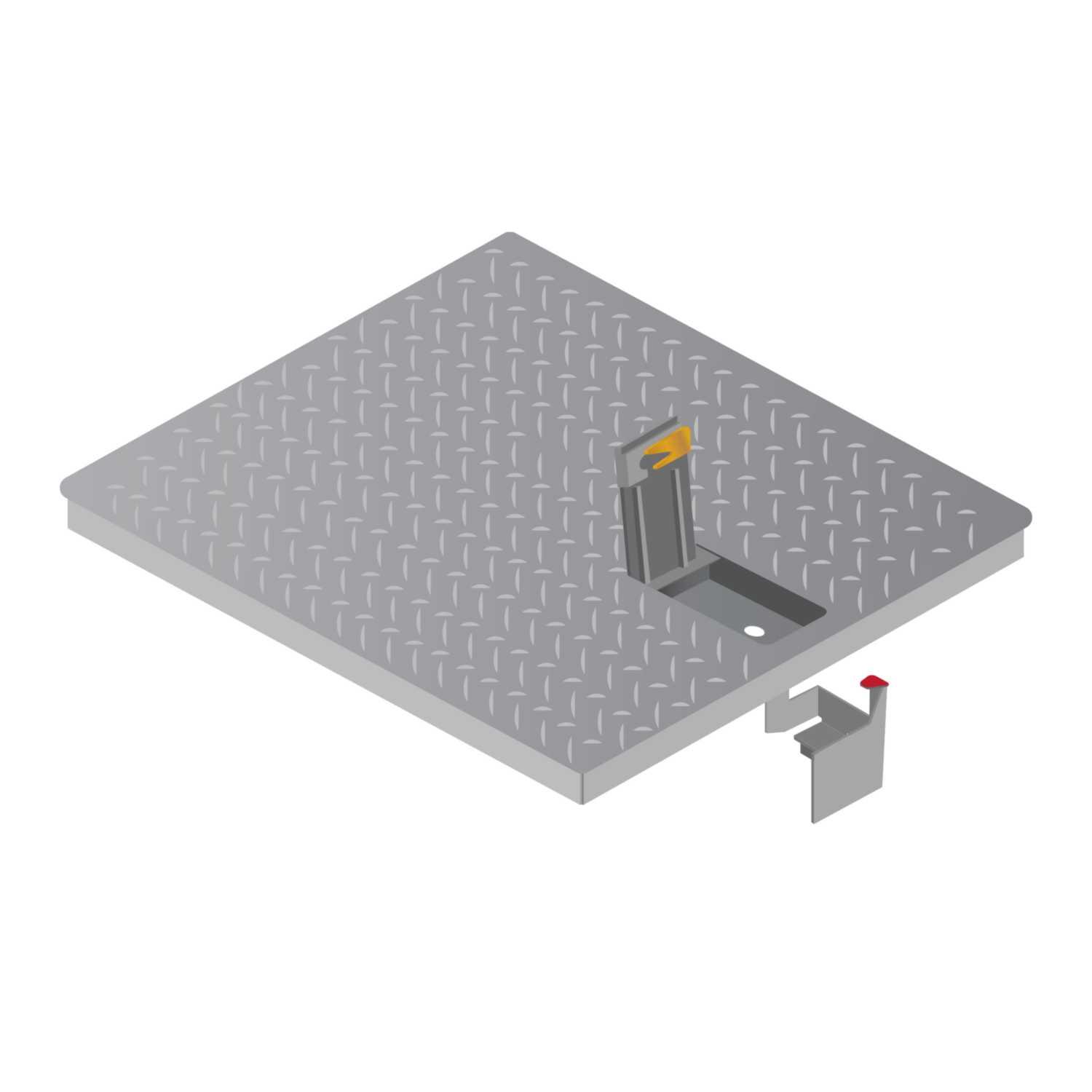

ACO Type 77 Steel Blank PowerLok Lid Class B
Part Number: 77730
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Blank steel lid for Type 77 polyethylene pit
- PowerLok® is designed to lock the lid directly to a pit through a fastened bracket without the need for a low hanging locking bar
- Footways that can be mounted by vehicle or livestock and light tractor paths
- Class B approximate wheel load of 2670kg
- Slip resistance rating R10
- IP2XD
- PowerLok® lids supplied with locking bolt (padlock not supplied)
- Image shown for illustration purposes only
- Colour
- Steel Grey
- Depth
- 48mm
- Dimensions
- (L)693 mm x (W)693 mm x (D)48 mm
- Guarantee
- 1 Year
- Length
- 693mm
- Material
- Steel
- Packaging Types
- Each
- Product Range
- CABLEMATE
- Standards
- AS 3996 AS/NZS 4586 AS 60529
- Suitable For
- Type 77 Pits
- Thickness
- 48mm
- Type
- Cable Pit Lid
- Unspsc V18
- 39121613
- Unspsc V24
- 39121613
- Width
- 693mm
