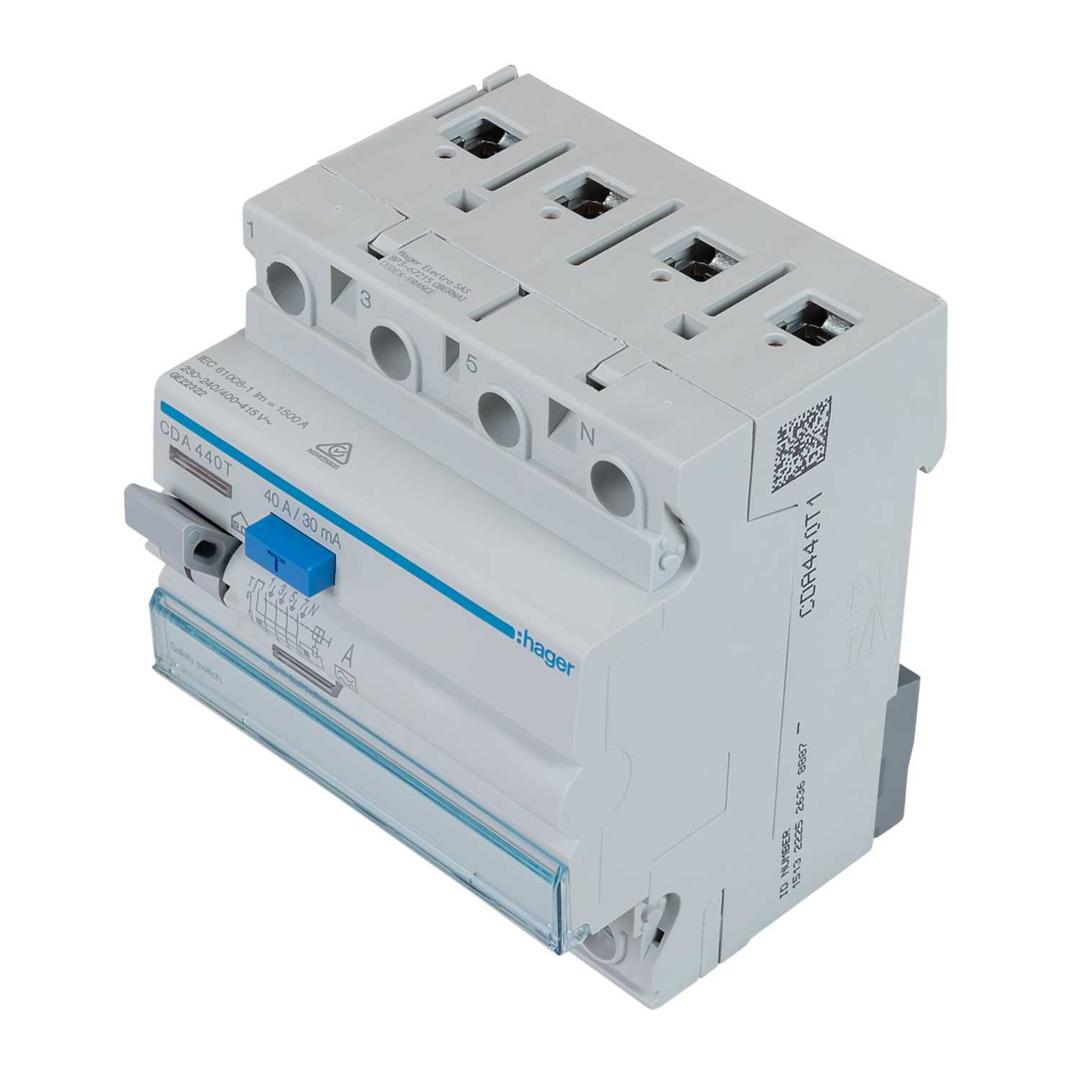

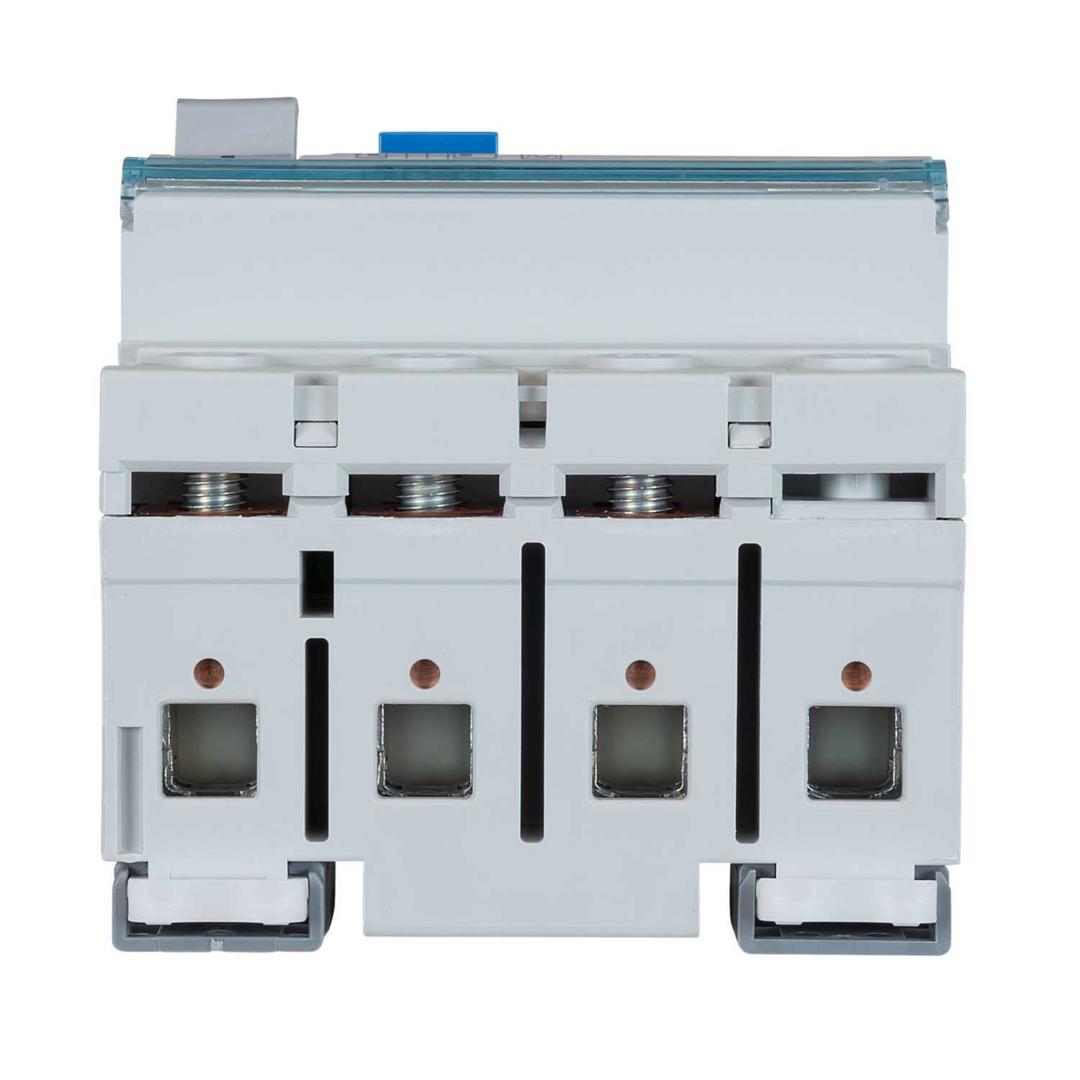

Hager 40A 4 Pole 30mA Type A RCD
Part Number: CDA440T
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 30mA RCD provides general personnel protection from earth faults
- Used for alternating sinusoidal residual current and for residual pulsating direct current up to 6 mA
- All RCDs have trip free mechanisms and can be padlocked either on or off
- Complies with AS/NZS 61008-1
- Colour
- Grey
- Current Rating
- 40A
- Depth
- 70mm
- Dimensions
- (H)83 mm x (W)70 mm x (D)70 mm
- Frequency
- 50 Hz
- Guarantee
- 2 Years
- Height
- 83mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 4
- Number Of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- CDA
- Rcd Type
- A
- Standards
- AS/NZS 61008-1
- Torque Settings
- 2.8 N m
- Tripping Sensitivity
- 30mA
- Type
- RCD
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 230V AC 400V AC
- Weight
- 0.316kg
- Width
- 70mm
