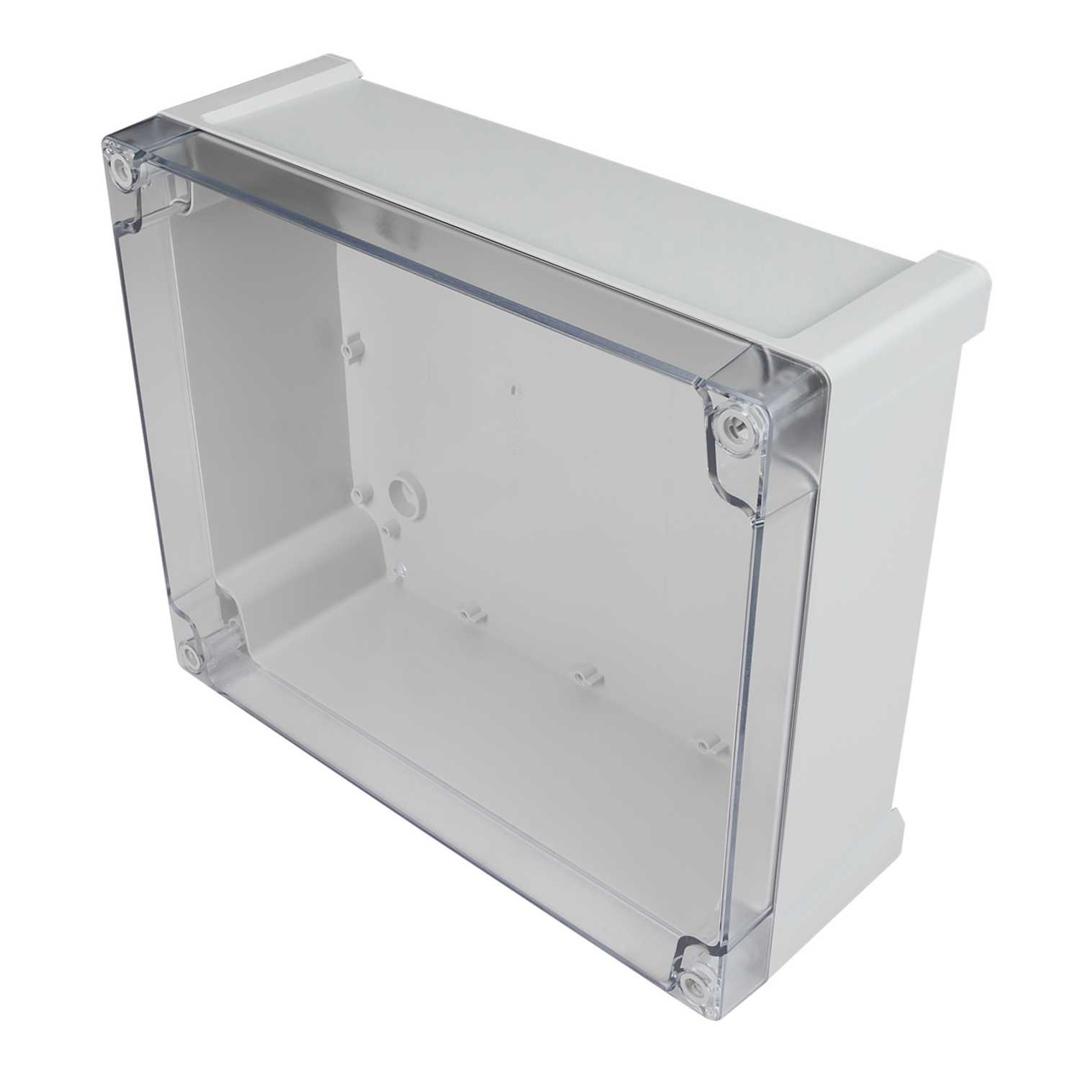

NHP NLINE 344 x 289 x 117mm Plastic Enclosure IP65 Clear
Part Number: NLP292411T
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Adaptable ABS enclosure for printing, stickers and switches covering every day applications
- Grey base RAL 7035 with smoked grey transparent cover
- IP65 and IK07 protection ensuring good protection against water and dust ingress
- Totally insulated, includes PU gasket
- Cover screws are wire seal compatible to ensure anti-tampering
- Indoor use only
- Colour
- Grey
- Cover Type
- Transparent Screw On Cover
- Depth
- 107mm
- Dimensions
- (H)289 mm x (W)239 mm x (D)107 mm
- Guarantee
- 1 Year
- Height
- 289mm
- IP Rating
- IP65
- Ik Rating
- IK07
- Lid Type
- Screwed
- Material
- ABS Material
- Mounting
- Surface
- Mounting Plates
- No
- Packaging Types
- Each
- Product Range
- NLINE
- Standards
- EN 60529 EN 62208:2003 EN 62262 UL 746C IEC 60695-2-1 650°C
- Type
- Terminal Box
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Uv Stabilised
- No
- Weight
- 0.761kg
- Width
- 239mm
