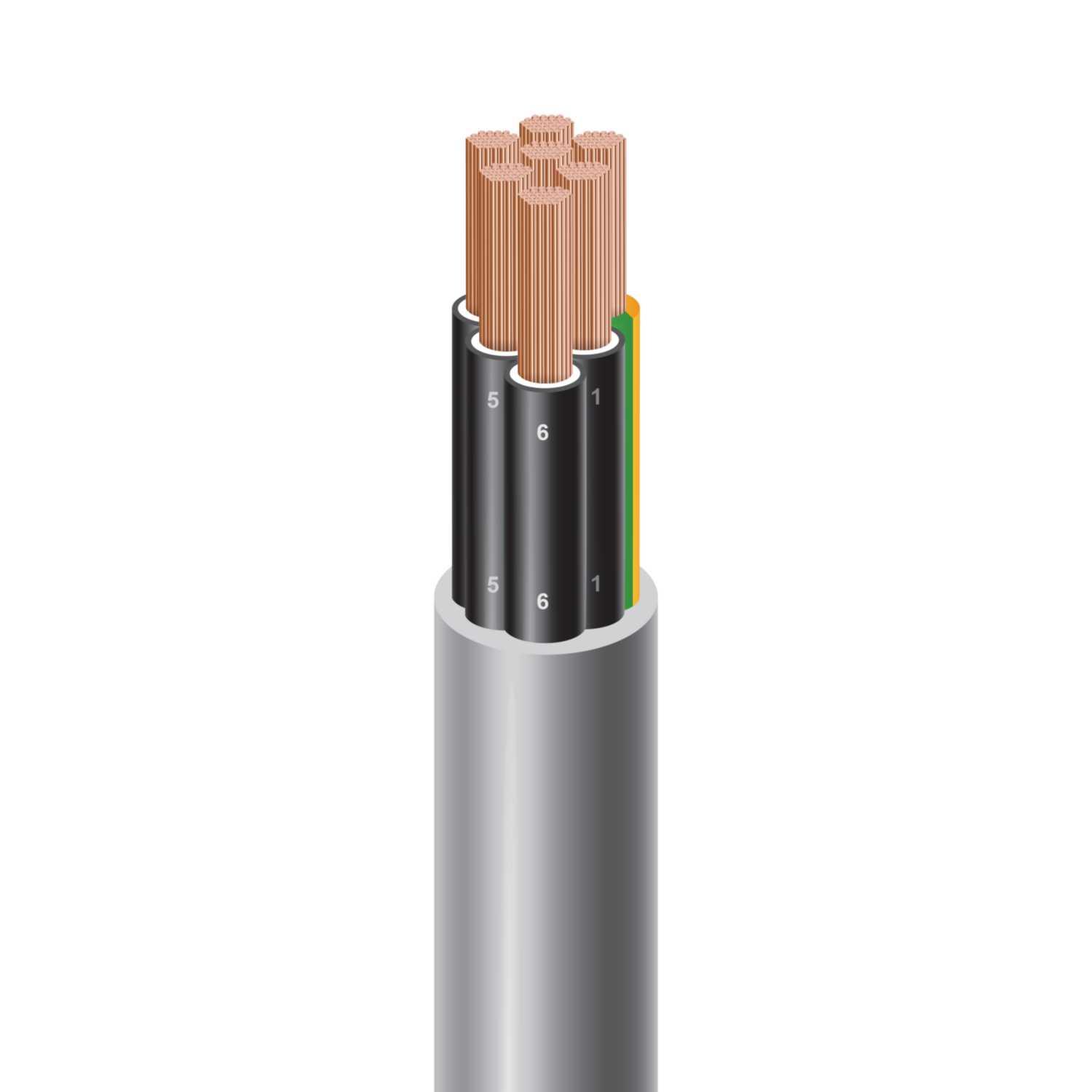

Electra 2.5mm² 6 Core and Earth Flexible Control Grey 100m Drum (Sold per Metre)
Part Number: F6025E
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Flexible transmission cable for when mechanical motion is required
- Used to relay the required signal or action to a particular control point
- Control cables are the backbone of the automated systems
- Plain annealed copper conductors
- Black numbered cores and a green/yellow earth
- PVC V-90HT insulation
- Flame retardant PVC V90 sheath
- Greenstar approved
- Colour
- Grey
- Core Colours
- Black Cores with White Numbers and Green/Yellow Earth
- Cross Sectional Area
- 2.5mm²
- Dimensions
- (L)100 m
- External Diameter
- 13.5mm
- Finish
- Plain Annealed
- Guarantee
- 1 Year
- Insulation Material
- PVC V-90HT
- Length
- 100m
- Material
- Copper
- Online Search Priority
- 1
- Packaging Types
- Drum
- Product Range
- F
- Sheath
- Flame Retardant PVC V90
- Sheath Thickness
- 1.3mm
- Standards
- AS/NZS 5000.1 IEC 60227-7:2003 AS/NZS 1125 AS/NZS 3808
- Type
- Flexible Control Cable
- Unspsc V18
- 26121603
- Unspsc V24
- 26121603
- Voltage Rating
- 300V 500V
- Weight
- 0.32kg
