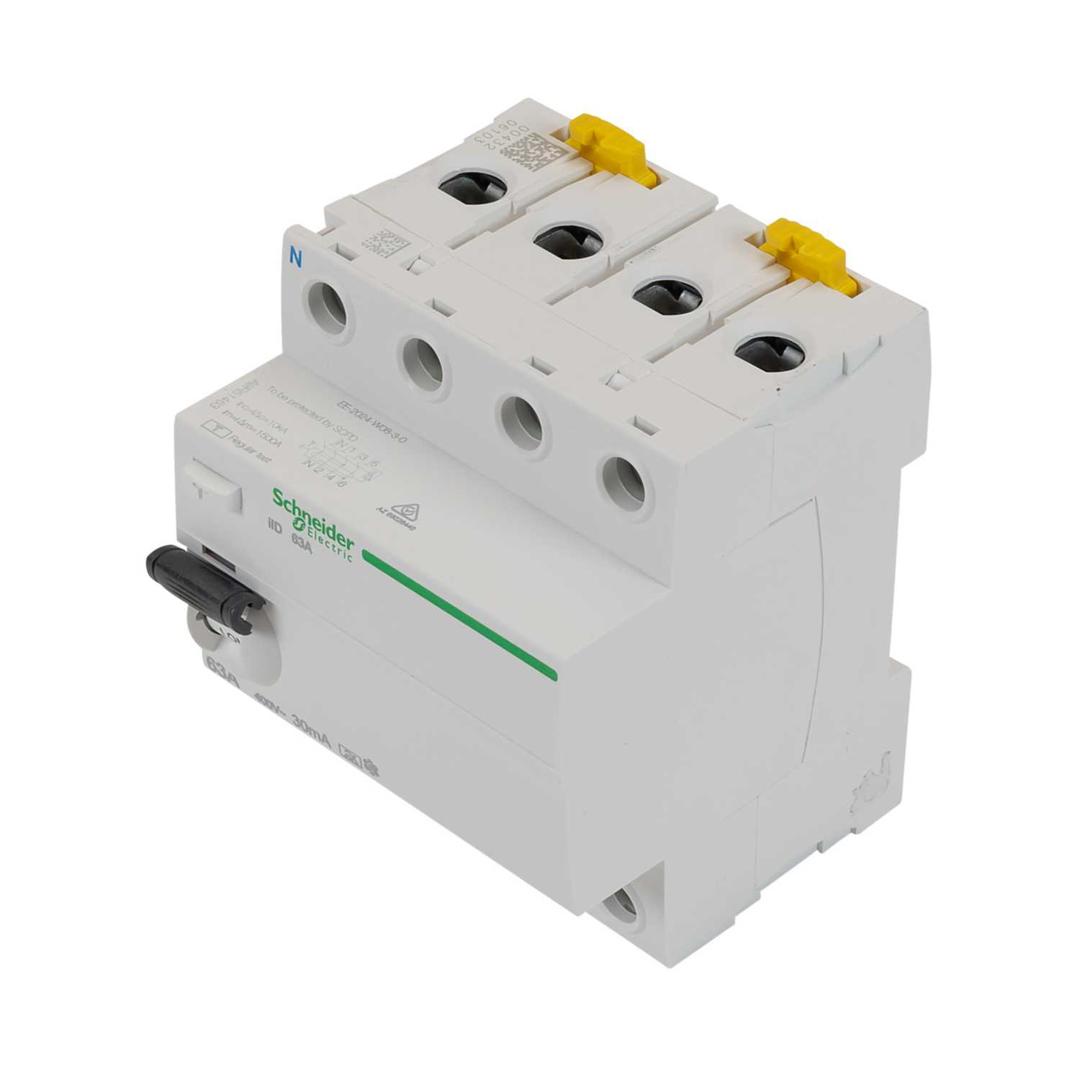

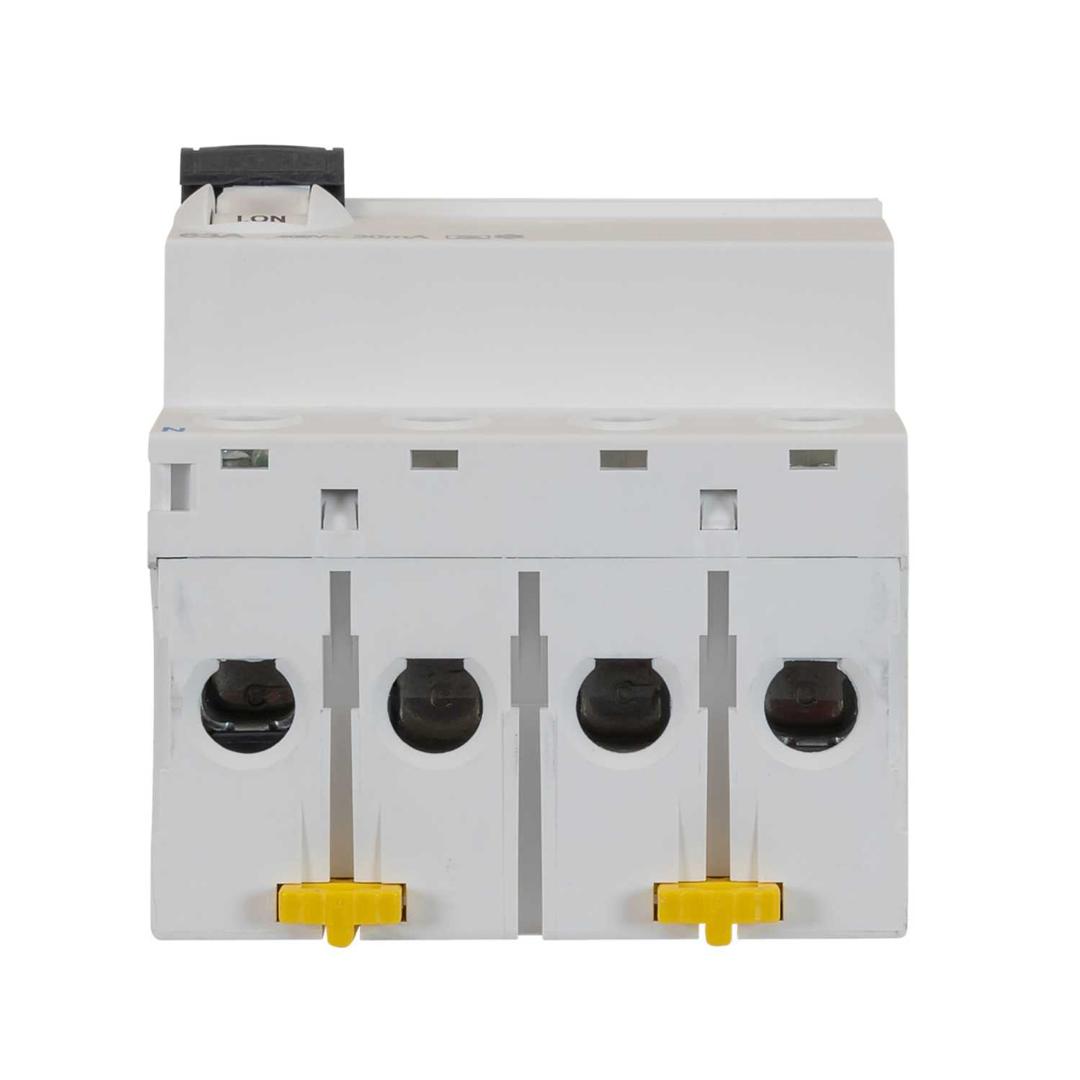

Schneider 63A 4 Pole 30mA Type A Acti9 ilD RCD
Part Number: A9R51463
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 30mA RCD provides general personnel protection from earth faults
- Type A protection used for alternating sinusoidal residual current and for residual pulsating direct current
- Suitability for residential isolation according to IEC 61008-1 and IEC 61008-2-1 standards
- Easy to install with unified terminal design and wiring indication
- Earth fault indication by a red mechanical indicator in front face
- VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance
- Colour
- White/Green
- Current Rating
- 63A
- Depth
- 73.5mm
- Dimensions
- (H)91 mm x (W)72 mm x (D)73.5 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 91mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 4
- Number Of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- Acti9
- Rcd Type
- A
- Standards
- IEC 60529 EN/IEC 61008-1
- Torque Settings
- 3.5 N m
- Tripping Sensitivity
- 30mA
- Type
- RCD
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 415V AC
- Weight
- 0.419kg
- Width
- 72mm
