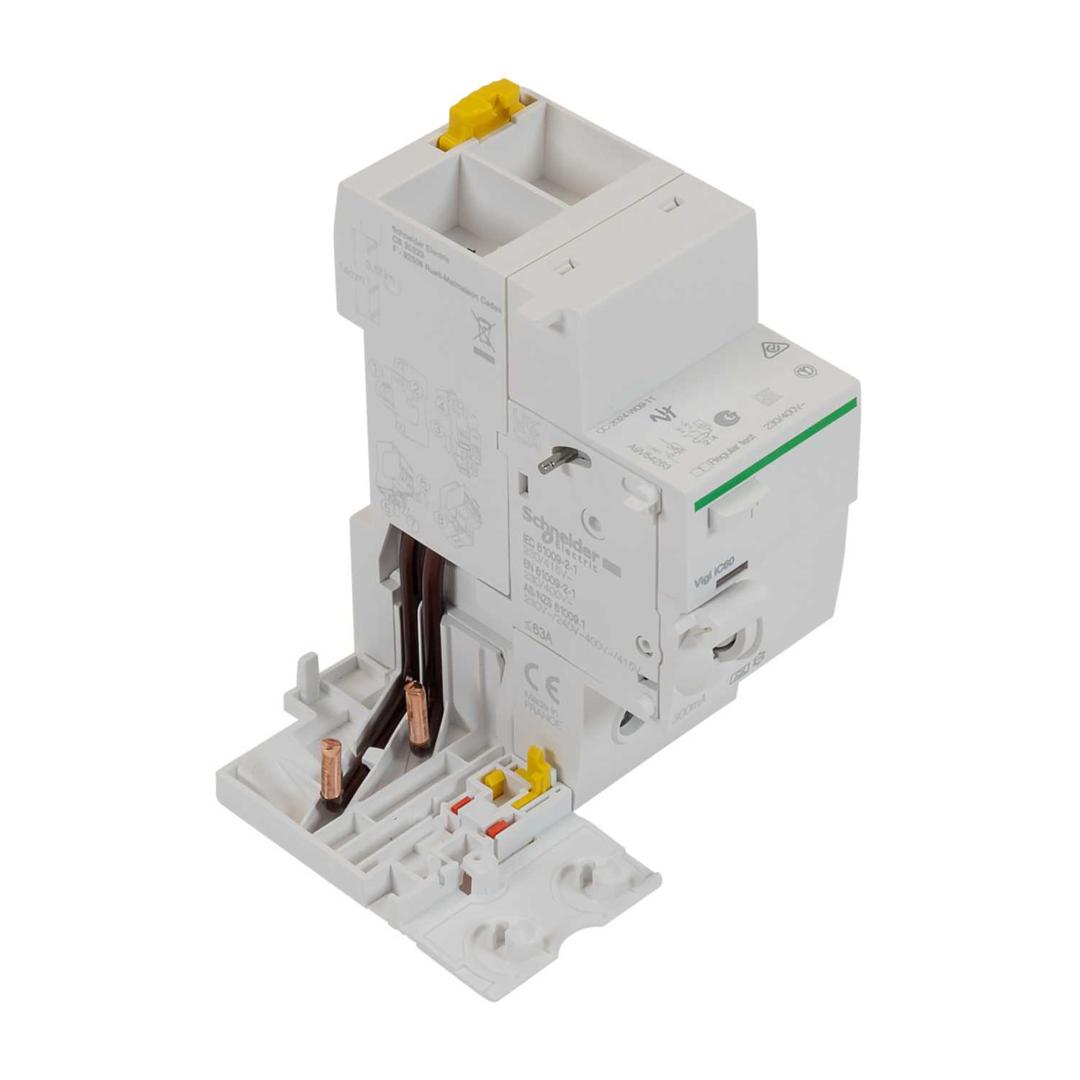

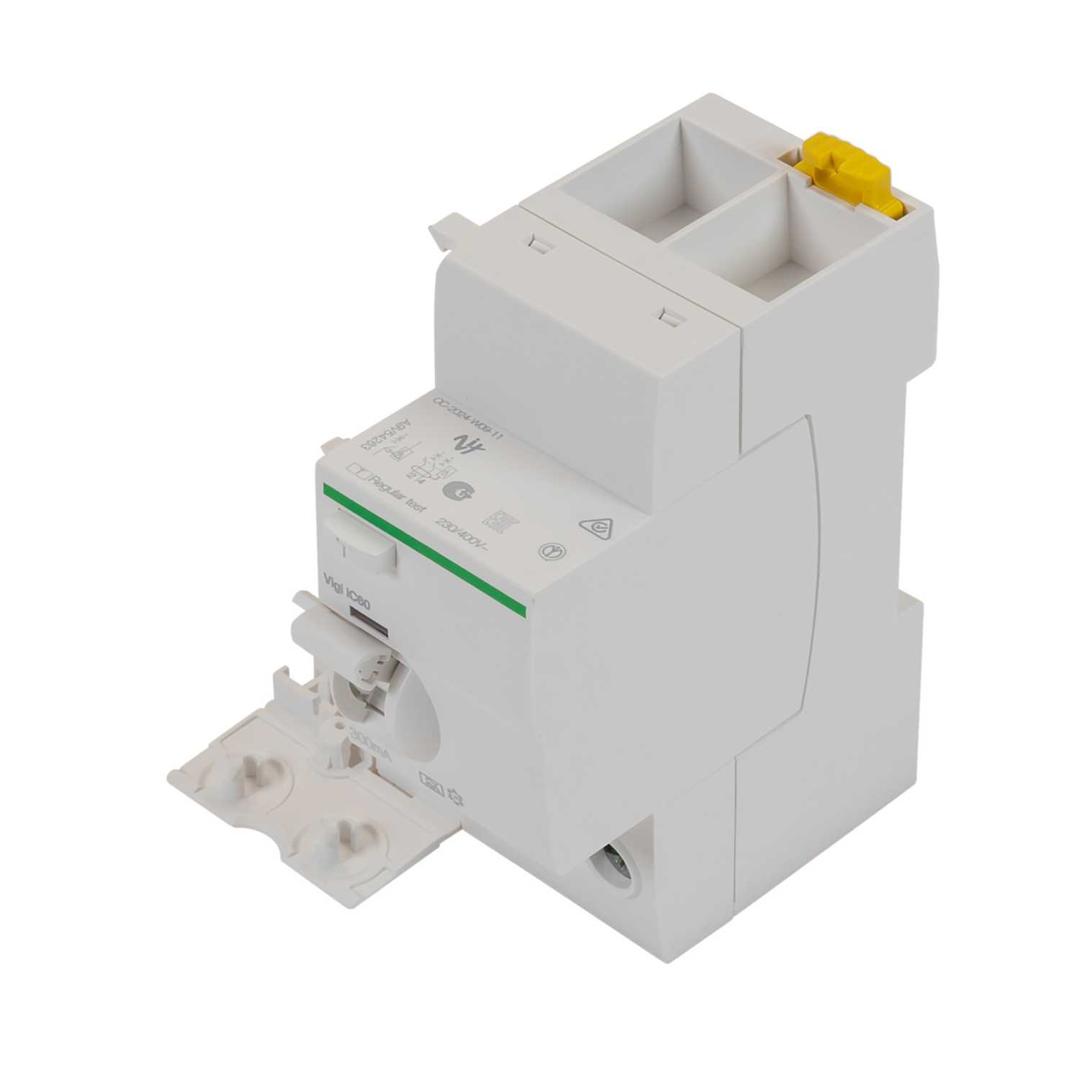

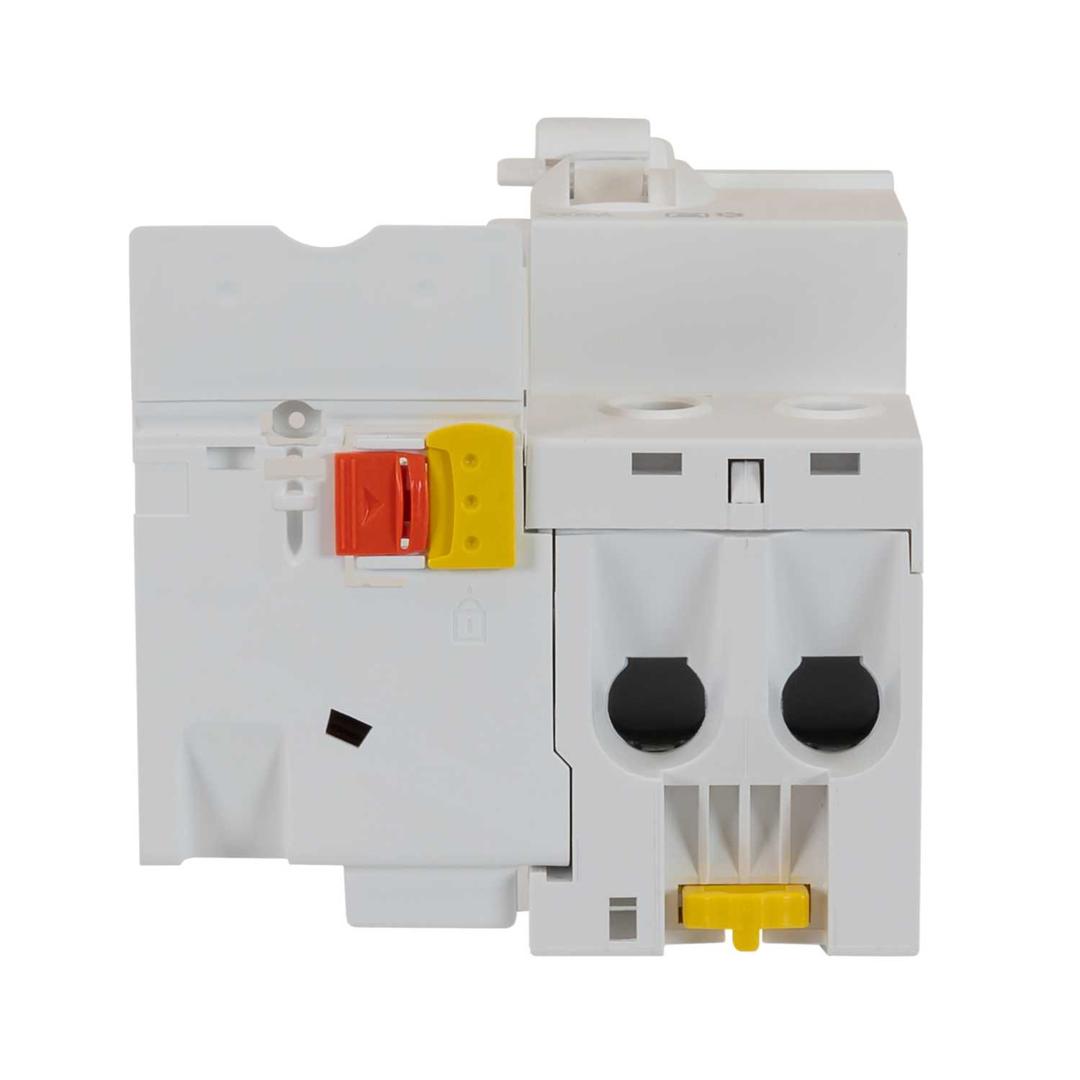

Schneider 63A 2 Pole Type A 300mA Add-On Vigi Block RCD
Part Number: A9V54263
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Add-on residual current device, has to be combined with a iC60 circuit breaker
- Type A earth leakage protection class
- 300mA RCD protects installations against the risk of fire
- VisiTrip window to indicate fault tripping
- Colour
- White/Green
- Current Rating
- 63A
- Depth
- 73.5mm
- Dimensions
- (H)91 mm x (W)72 mm x (D)73.5 mm
- Guarantee
- 18 Months
- Height
- 91mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- Acti9
- Rcd Type
- A
- Standards
- EN/IEC 61009-1 EN/IEC 61009-2-1
- Torque Settings
- 3.5 N m
- Tripping Sensitivity
- 300mA
- Type
- Add-on RCD
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 240V AC
- Weight
- 0.162kg
- Width
- 72mm
