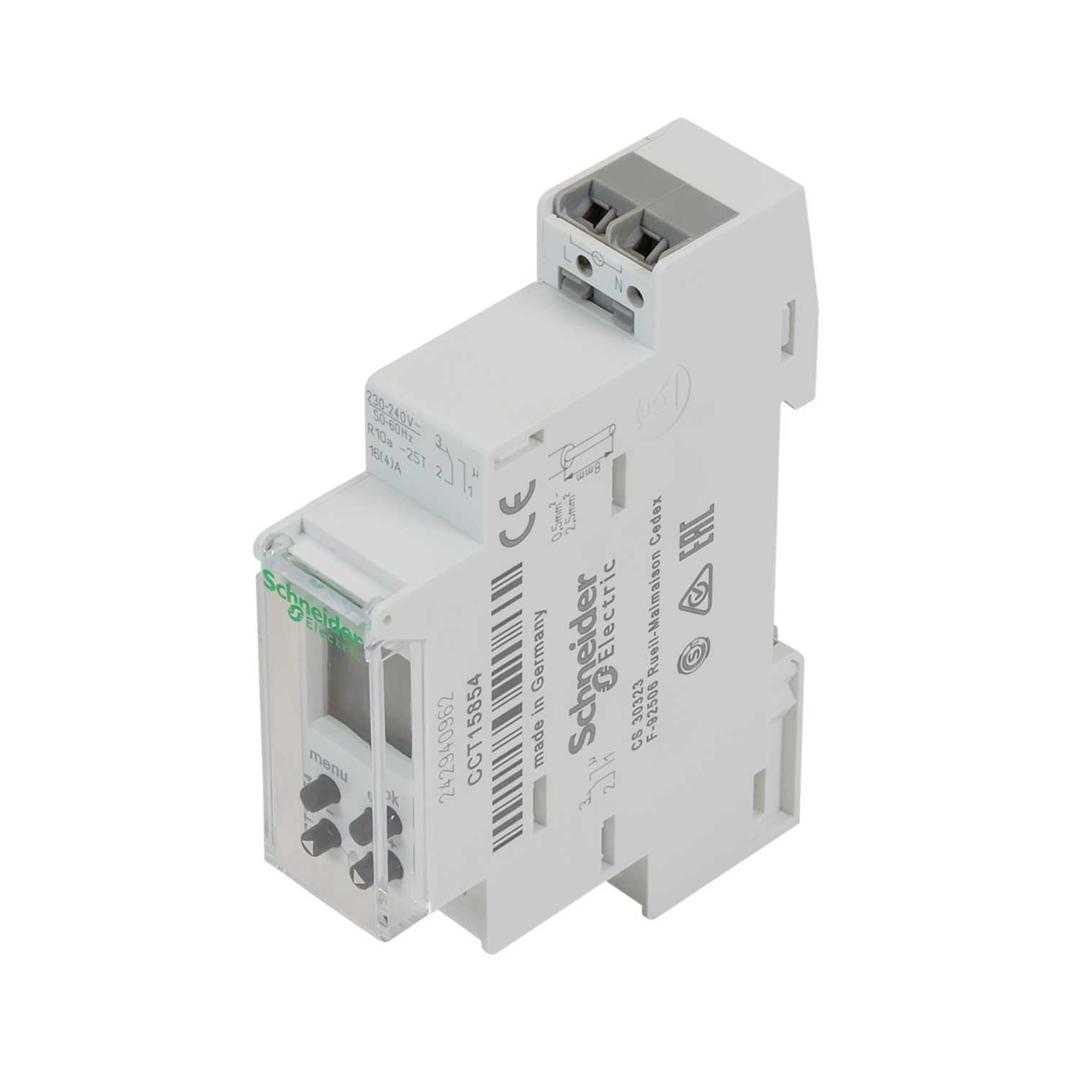

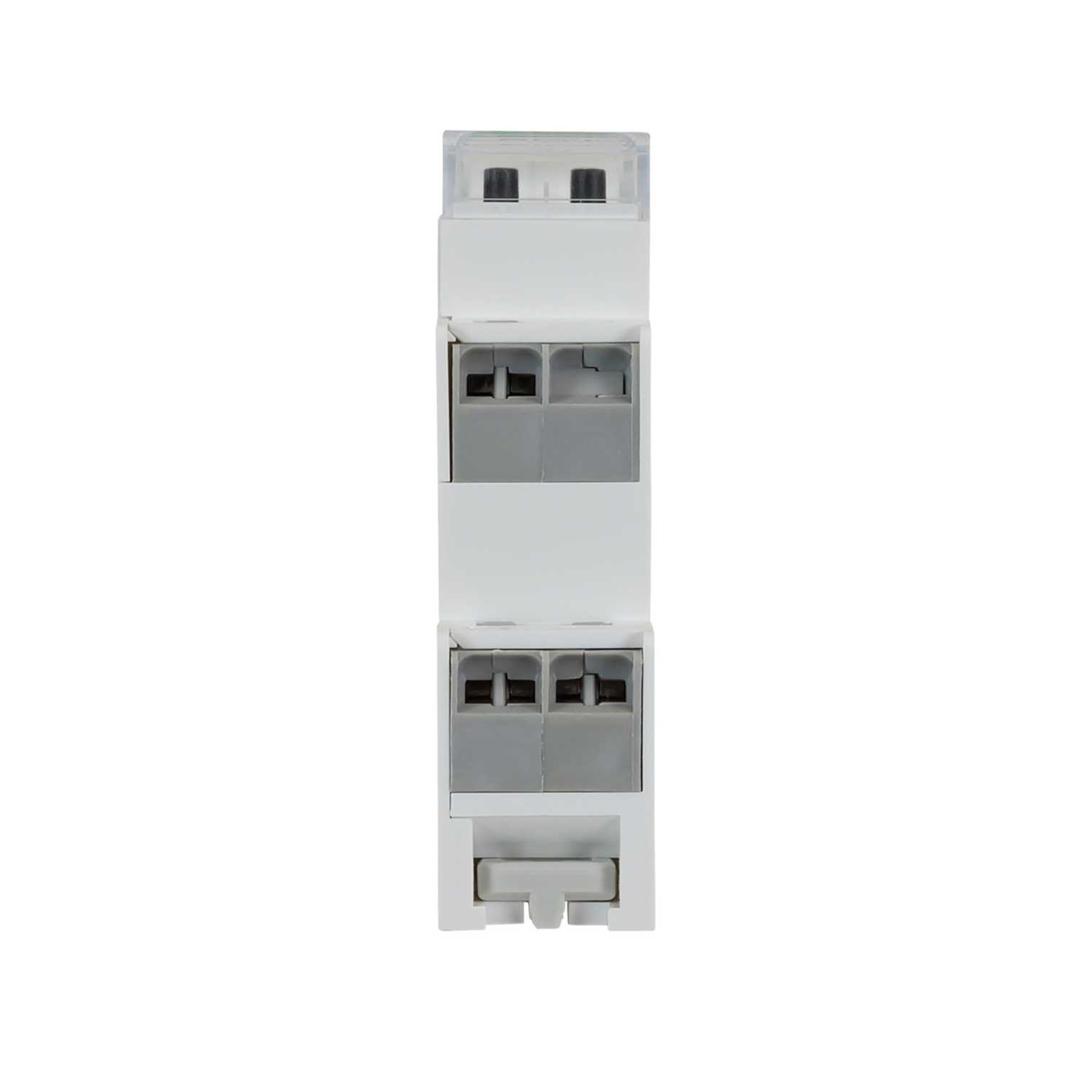

Schneider 16A 24Hr 7 Day Digital 1 Channel Battery Reserve Time Switch
Part Number: CCT15854
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- LCD display
- Automatically switches On and Off loads according to the program entered by the user on weekly level switching cycle is 7 days (weekly)
- Maximum number of switching operations: 56
- Manual override
- Battery backup 10 years with time and program saving
- DIN rail mount
- Battery Back Up
- Yes
- Colour
- White
- Current Rating
- 16A
- Depth
- 66mm
- Dimensions
- (H)90 mm x (W)18 mm x (D)66 mm
- Guarantee
- 18 Months
- Height
- 90mm
- Manual Override
- Yes
- Material
- Plastic
- Minimum Switching Time
- 1min
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of On Offs
- 56
- Operating Temperature Range
- -25 - +55°C
- Packaging Types
- Each
- Product Range
- Acti9
- Type
- Time Switch
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 230V AC
- Weight
- 0.129kg
- Width
- 18mm
