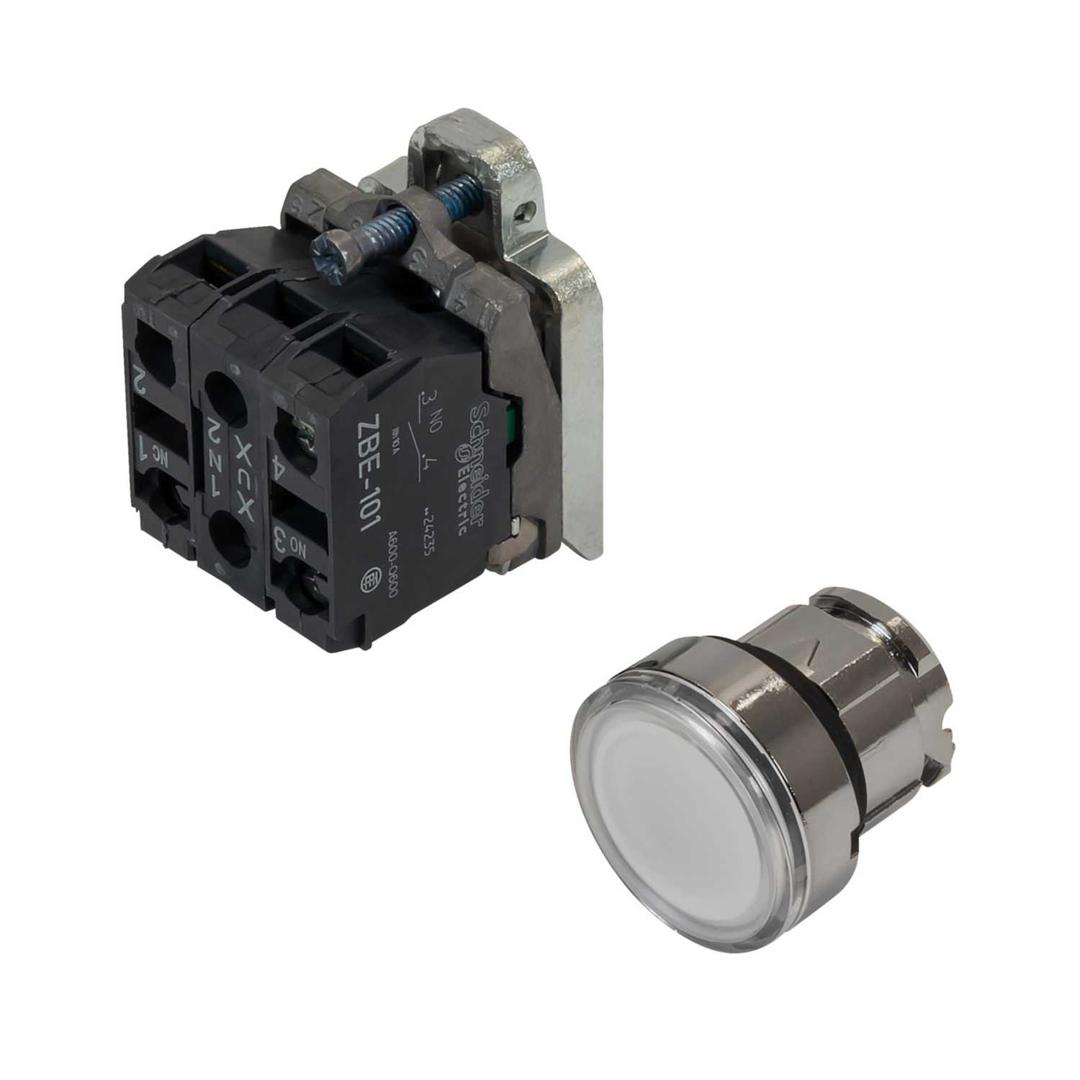

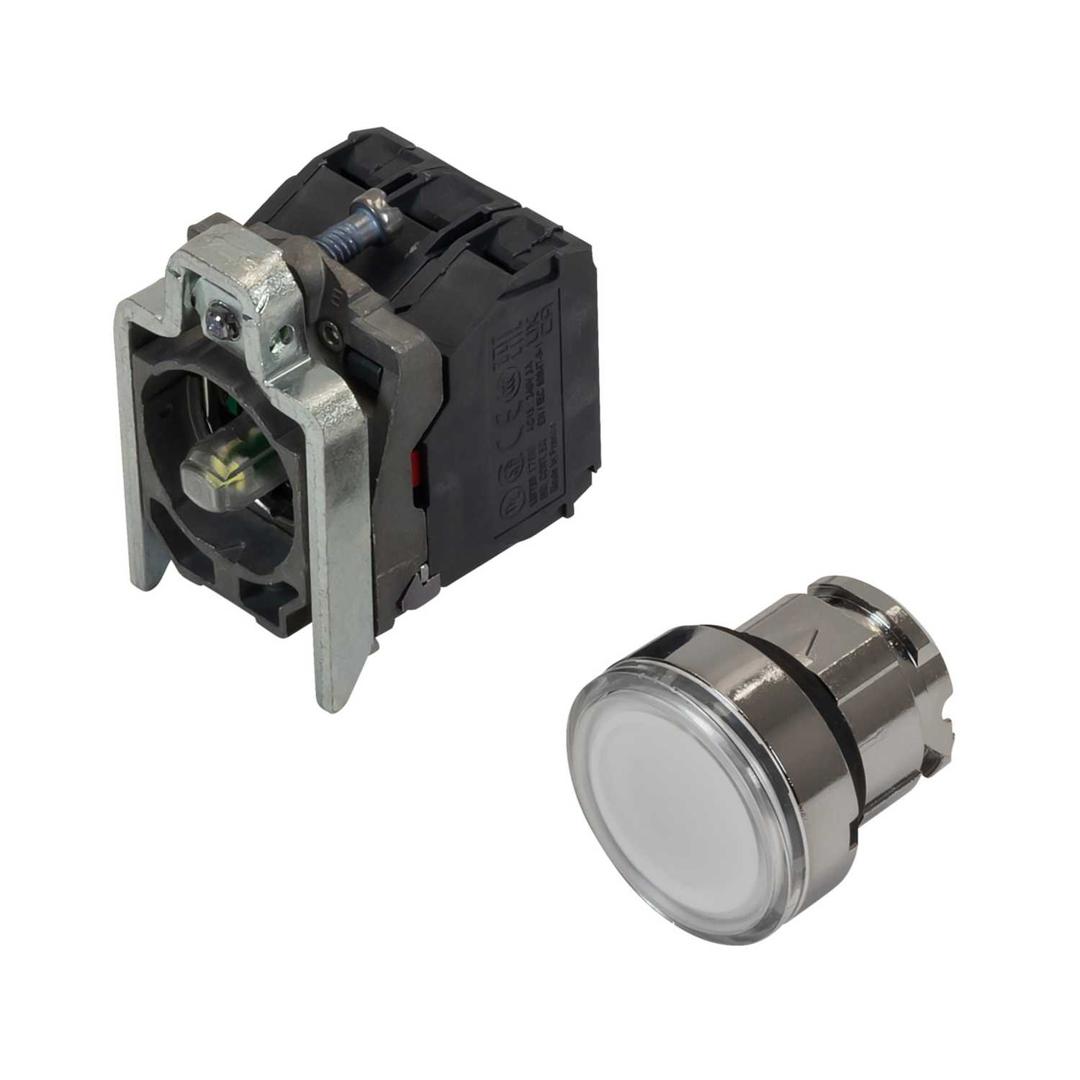

Schneider Harmony XB4 24V AC/DC Illuminated Spring Return Pushbutton White
Part Number: XB4BW31B5
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Momentary modular pushbutton that operates with a spring return / impulse mechanism
- Chromium plated metal bezel with flush unmarked LED pushbutton
- For installation in standard 22.5mm diameter panel cut-outs
- 1 normally open + 1 normally closed contact with screw clamp connections
- Quick and easy assembly and disassembly from zinc aluminium fixing collar
- Impact, dust, water and vibration resistant
- Button Profile
- Flush
- Colour
- White
- Contact Configuration
- 1 NO + 1 NC
- Cut Out
- 22.5mm
- Depth
- 57mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)30 mm x (D)57 mm
- Finish
- Chromium Plated
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Head Type
- Standard
- Ip Rating
- IP66 / IP67 / IP69
- Legend
- None
- Lens Colour
- White
- Material
- Metal, Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- IEC 60947-5-5 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-5-1 JIS C8201-5-1 UL 508 IEC 60947-1 JIS C8201-1
- Supplied With
- Fixing Collar and Contact Block
- Type
- Pushbutton
- Voltage Rating
- 24
- Weight
- 0.097kg
- Width
- 30mm
