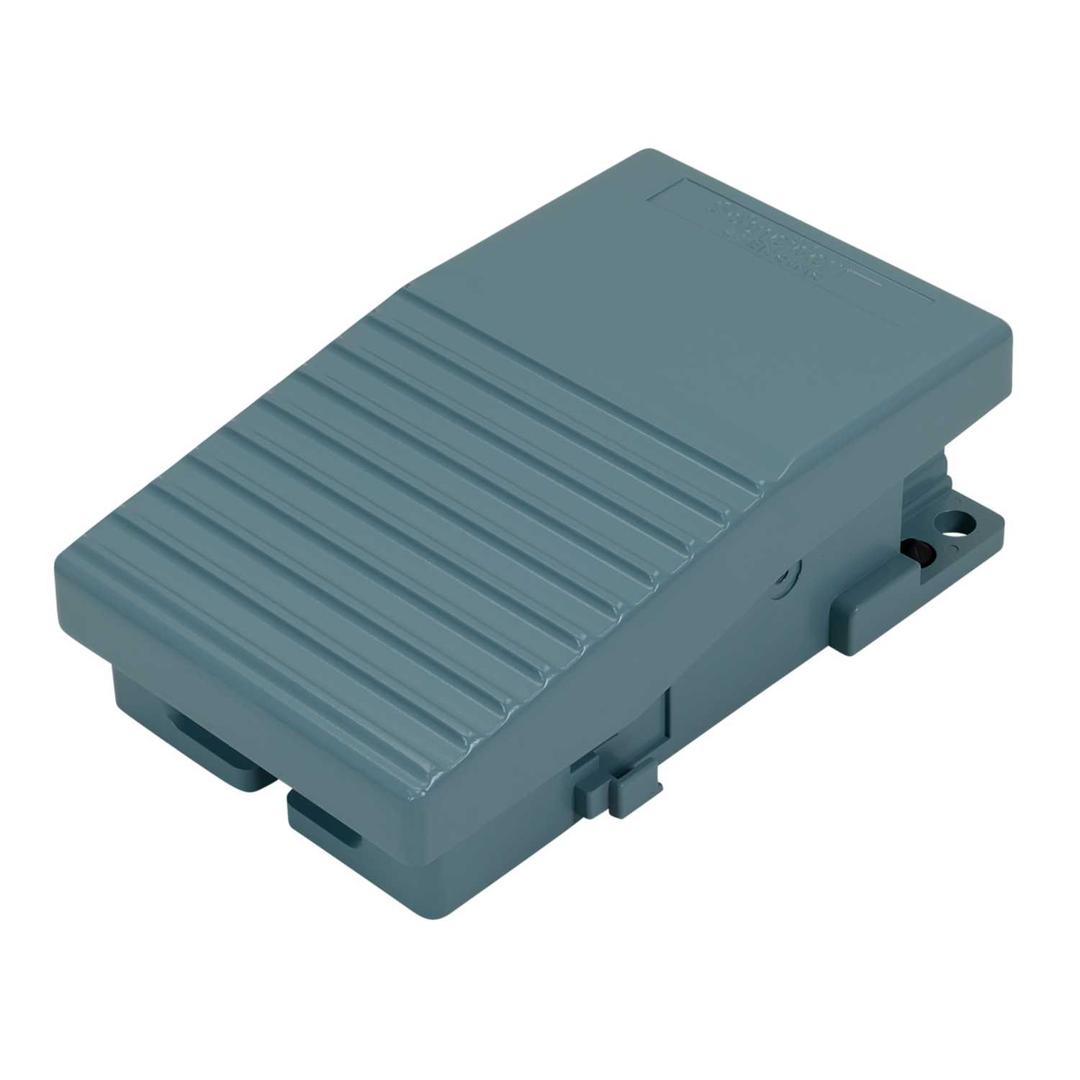

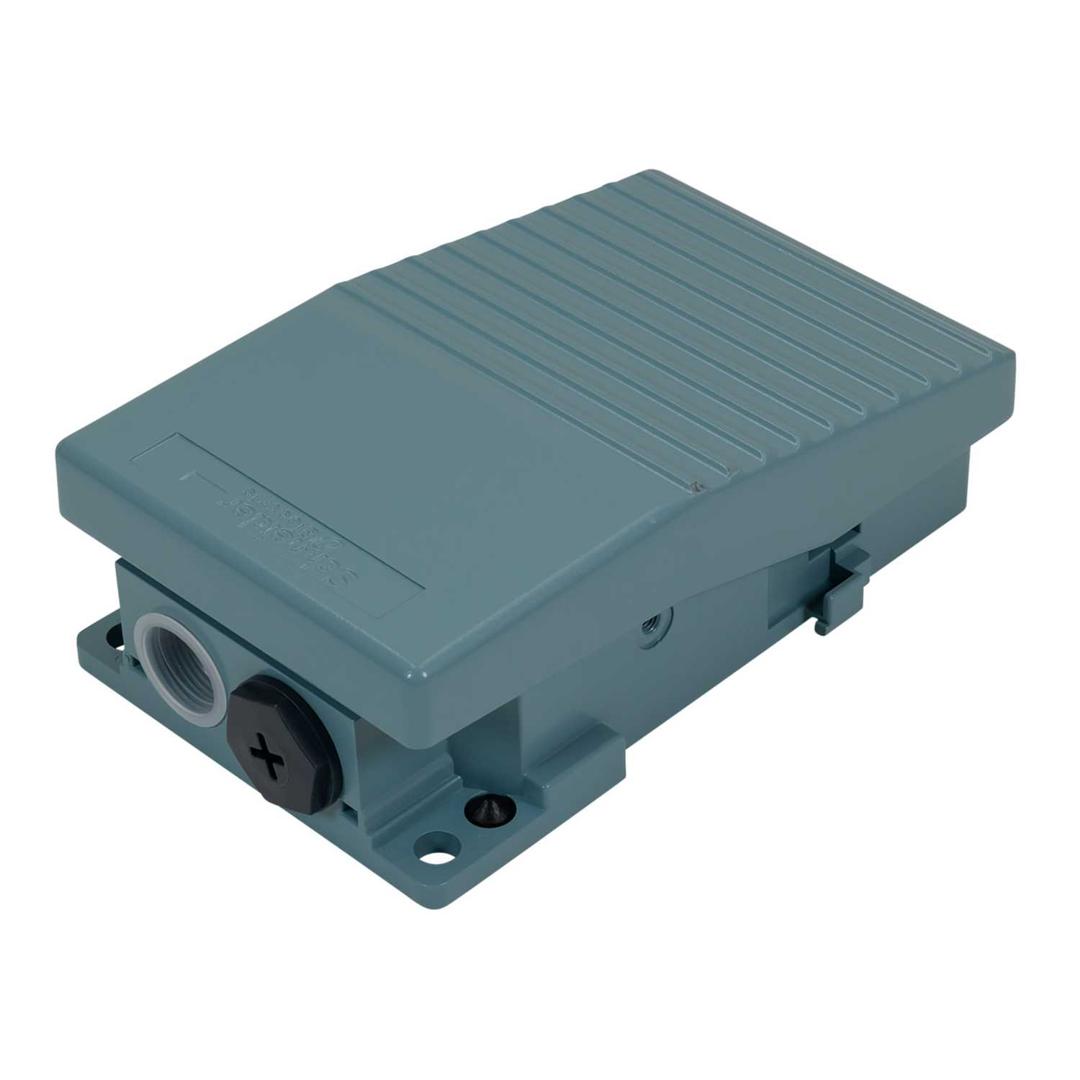

Schneider Harmony XPE 2 Contacts Metal Foot Switch without Cover Blue
Part Number: XPEM111
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Unshrouded single foot switch, without trigger mechanism
- IP66 rating
- 1 step contact operation
- 2NO + 2NC contacts
- Screw clamp terminals
- 2 x PG16 threaded entries
- Cable Entry
- PG16
- Colour
- Blue
- Contact Configuration
- 2 NC + 2 NO
- Depth
- 59mm
- Dimensions
- (H)172 mm x (W)104 mm x (D)59 mm
- Footguard
- No
- Guarantee
- 18 Months
- Height
- 172mm
- Ip Rating
- IP66
- Material
- Metal
- Number Of Pedals
- 1
- Operating Temperature Range
- -25-70°C
- Packaging Types
- Each
- Product Range
- Harmony XPE
- Standards
- IEC 60068-2-6 IEC 60068-2-27 IEC 61140 IEC 60529 IEC 60947-5-1
- Type
- Foot Switch
- Weight
- 1.366kg
- Width
- 104mm
